S412U-TMDFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)

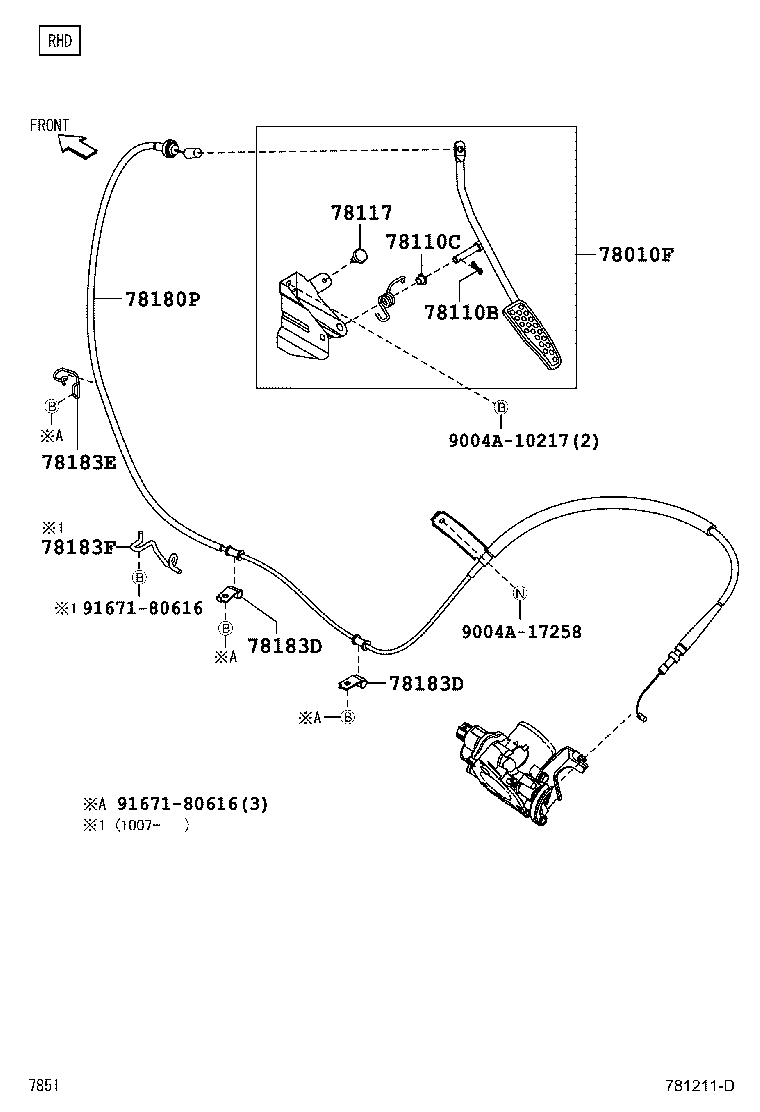

Click highlighted areas on diagram

diagram 78010F 78110B 78110C 78117 78180P 78183D 78183D 78183E 78183F 9004A10217 9004A17258 9167180616 9167180616
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-BZ090

S402,412

 1
78110B - CLIP, ACCELERATOR BELLCRANK
90044-68207

S402,412

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90043-86112

S402,412

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90045-40158

S402,412

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-BZ120

S402,412

 1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
90044-61822

S402,412

 2
78183D - CLAMP, ACCELERATOR CONTROL CABLE
90044-61822

S402,412

 2
78183E - CLAMP, ACCELERATOR CONTROL CABLE
78183-BZ060

S402,412

 1
78183F - CLAMP, ACCELERATOR CONTROL CABLE
78183-BZ030

S402,412

 1
Common parts
9004A-10217
9004A-17258
91671-80616
