S412U-TMDFJD (2010)
Toyota Lite/Townace
Production
Jun 2010
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

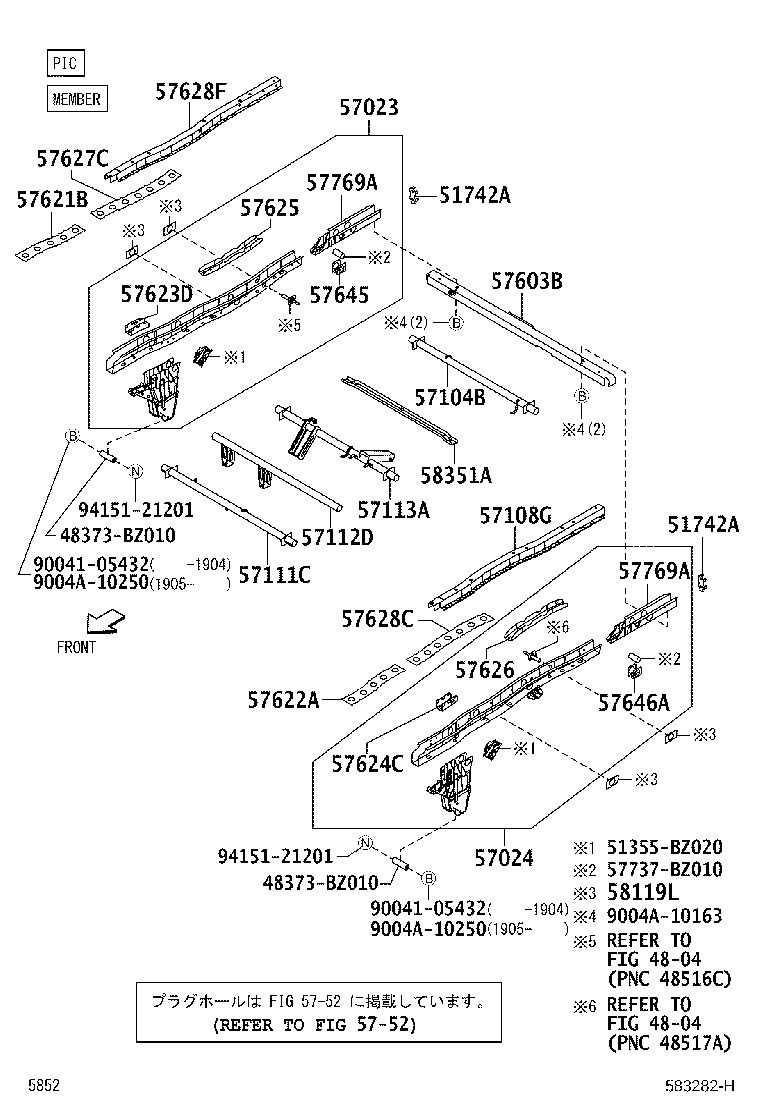

(0801-2007)PIC
Click highlighted areas on diagram
MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57601-BZ130 |
S402,412..PIC |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57602-BZ140 |
S402,412..PIC |
1 | ||
| 57104B - CROSSMEMBER SUB-ASSY, FLOOR, NO.4 | ||||
| 51204-BZ030 |
S402,412..PIC |
1 | ||
| 57108G - PLATE SUB-ASSY, SIDE FRAME, NO.3 LH | ||||
| 57118-BZ041 |
S402,412..PIC |
1 | ||
| 57118-BZ040 |
S402,412..PIC |
1 | ||
| 57111C - CROSSMEMBER, FLOOR, NO.1 | ||||
| 51201-BZ020 |
S402,412..PIC |
1 | ||
| 57112D - CROSSMEMBER, FLOOR, NO.2 | ||||
| 51202-BZ070 |
S402,412..PIC |
1 | ||
| 57113A - CROSSMEMBER, FLOOR, NO.3 | ||||
| 51203-BZ040 |
S402,412..PIC |
1 | ||
| 57603B - MEMBER SUB-ASSY, REAR FLOOR SIDE REAR, CENTER | ||||
| 57603-BZ160 |
S402,412..PIC |
1 | ||
| 57621B - PLATE, REAR FLOOR SIDE MEMBER, FRONT RH | ||||
| 57621-BZ010 |
S402,412..PIC |
1 | ||
| 57622A - PLATE, REAR FLOOR SIDE MEMBER, FRONT LH | ||||
| 57621-BZ010 |
S402,412..PIC |
1 | ||
| 57623D - PLATE, REAR FLOOR SIDE MEMBER, RR RH | ||||
| 57626-BZ010 |
S402,412..PIC |
1 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57625-BZ010 |
S402,412..PIC |
1 | ||
| 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH | ||||
| 57625-BZ010 |
S402,412..PIC |
1 | ||
| 57627C - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57185-BZ020 |
S402,412..PIC |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57185-BZ020 |
S402,412..PIC |
1 | ||
| 57628F - PLATE, REAR FLOOR SIDE MEMBER, RH | ||||
| 57117-BZ040 |
S402,412..PIC |
1 | ||
| 57117-BZ041 |
S402,412..PIC |
1 | ||
| 57645 - REINFORCEMENT, REAR SIDE MEMBER, RH | ||||
| 57645-BZ050 |
S402,412..PIC |
1 | ||
| 57646A - REINFORCEMENT, REAR SIDE MEMBER, LH | ||||
| 57645-BZ050 |
S402,412..PIC |
1 | ||
| 57769A - REINFORCEMENT, UPPER CONTROL LINK BRACKET | ||||
| 57769-BZ020 |
S402,412..PIC LH,右側 |
1 | ||
| 57769-BZ010 |
S402,412..PIC 左側,右側 |
1 | ||
| 57769A - REINFORCEMENT, UPPER CONTROL LINK BRACKET | ||||
| 57769-BZ020 |
S402,412..PIC LH,右側 |
1 | ||
| 57769-BZ010 |
S402,412..PIC 左側,右側 |
1 | ||
| 58119L - PLATE, REAR FLOOR SIDE | ||||
| 51311-BZ020 |
S402,412..PIC |
4 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58359-87Z02 |
S402,412..PIC |
1 | ||
| Common parts | ||||
| 48373-BZ010 | ||||
| 51355-BZ020 | ||||
| 57737-BZ010 | ||||
| 90041-05432 | ||||
| 9004A-10163 | ||||
| 9004A-10250 | ||||
| 94151-21201 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 5752 | ||||
