S412U-TMDFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)

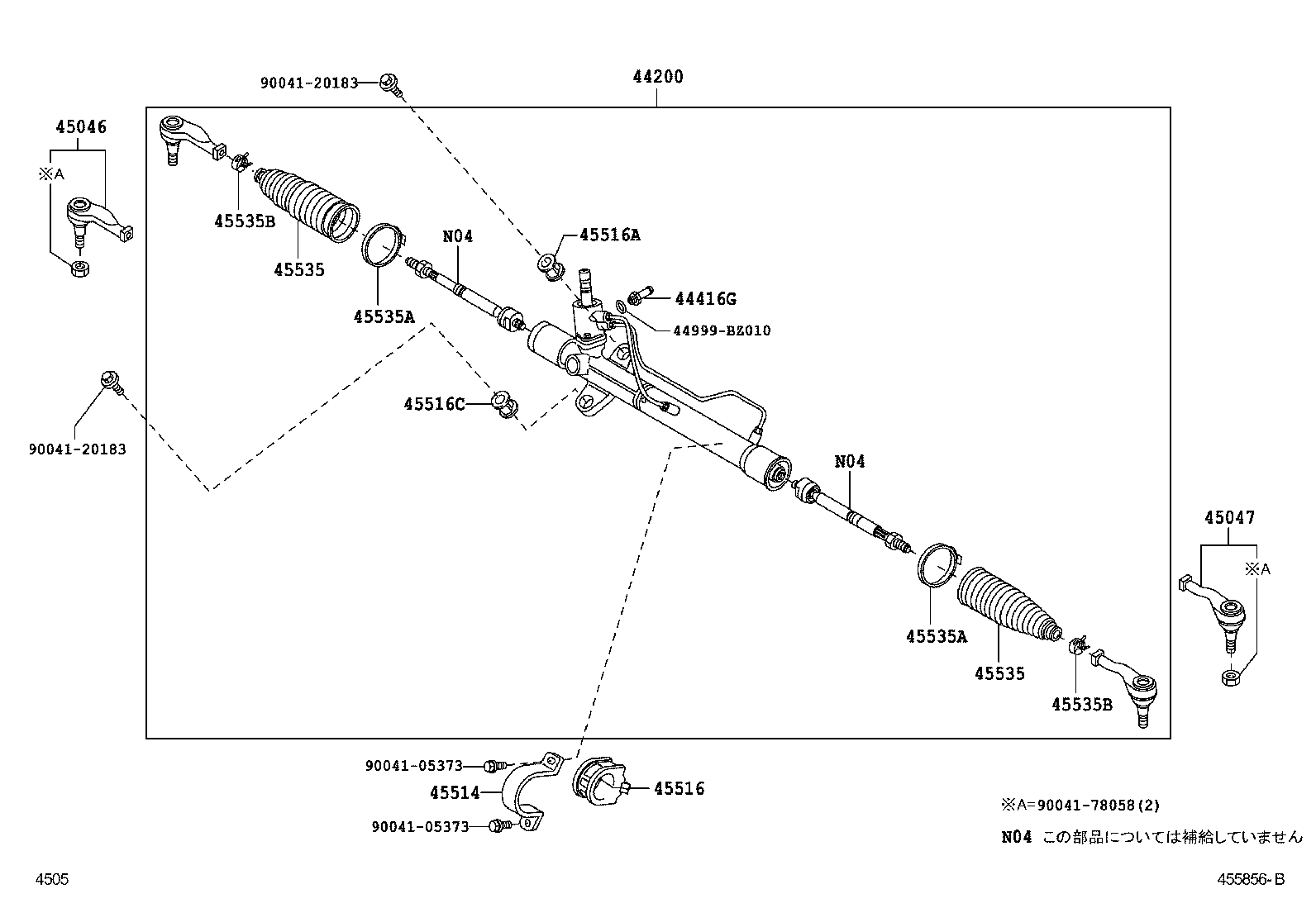

Click highlighted areas on diagram

diagram 44200 44416G 44999BZ010 45046 45047 45514 45516 45516A 45516C 45535 45535 45535A 45535A 45535B 45535B 9004105373 9004105373 9004120183 9004120183 9004178058
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-BZ141

S412

 1
44200-BZ142

S412

 1
44200-BZ140

S412

 1
44416G - TUBE, RETURN(FOR STEERING GEAR)
44416-BZ010

S402,412

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-B9290

S402,412

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-B9240

S402,412

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-BZ090

S402,412

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45517-BZ020

S402,412

 1
45535 - BOOT, STEERING RACK, NO.1
45535-BZ080

S402,412

 2
45535 - BOOT, STEERING RACK, NO.1
45535-BZ080

S402,412

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-BZ030

S402,412

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-BZ030

S402,412

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-BZ010

S402,412

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-BZ010

S402,412

 2
Common parts
44999-BZ010
90041-05373
90041-20183
90041-78058
