S412U-TMDFJD (2010)
Toyota Lite/Townace
Production
Jun 2010
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1006-2007)S412

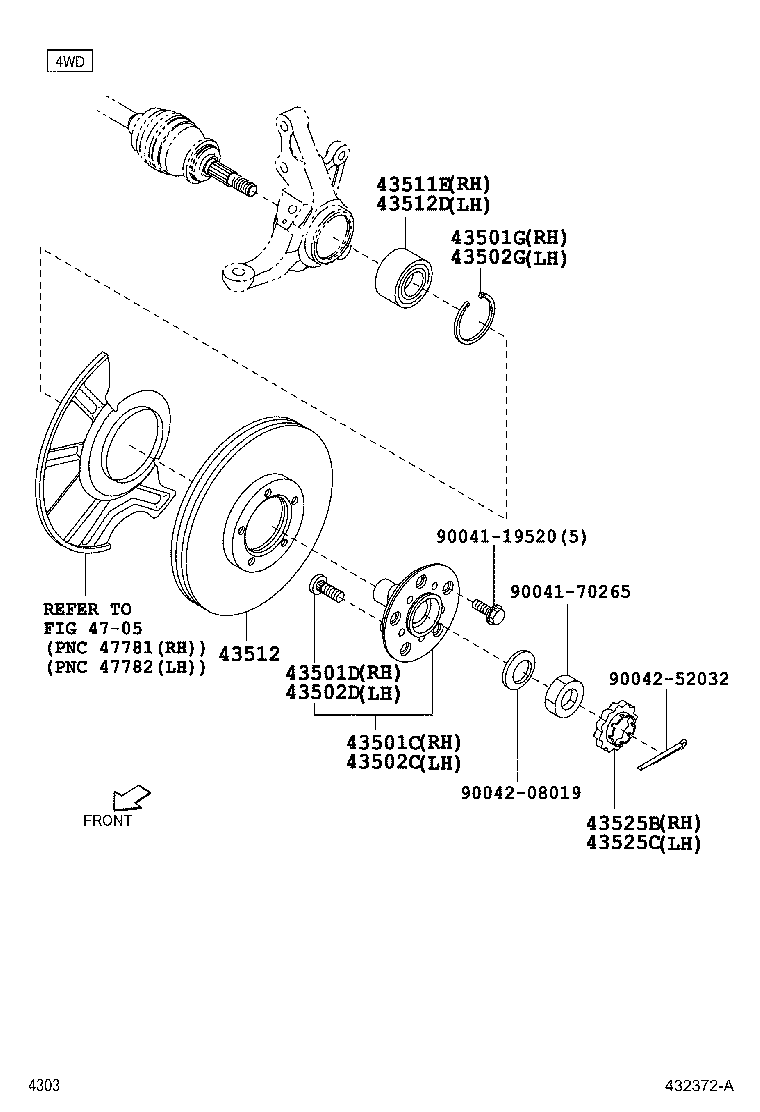

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-B5030 |
S412 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90049-12030 |
S402,412 |
5 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90045-21111 |
S402,412 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-B5030 |
S412 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90049-12030 |
S402,412 |
5 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90045-21111 |
S402,412 |
1 | ||
| 43511E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 9004A-36091 |
S412 磁気ｾﾝｻ ﾛｰﾀ |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-BZ100 |
S402,412 |
2 | ||
| 43512D - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 9004A-36091 |
S412 磁気ｾﾝｻ ﾛｰﾀ |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-87703 |
S412 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-87703 |
S412 |
1 | ||
| Common parts | ||||
| 90041-19520 | ||||
| 90041-70265 | ||||
| 90042-08019 | ||||
| 90042-52032 | ||||
| Linked diagrams | ||||
| 4705 | ||||
