S412M-ZQRFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)

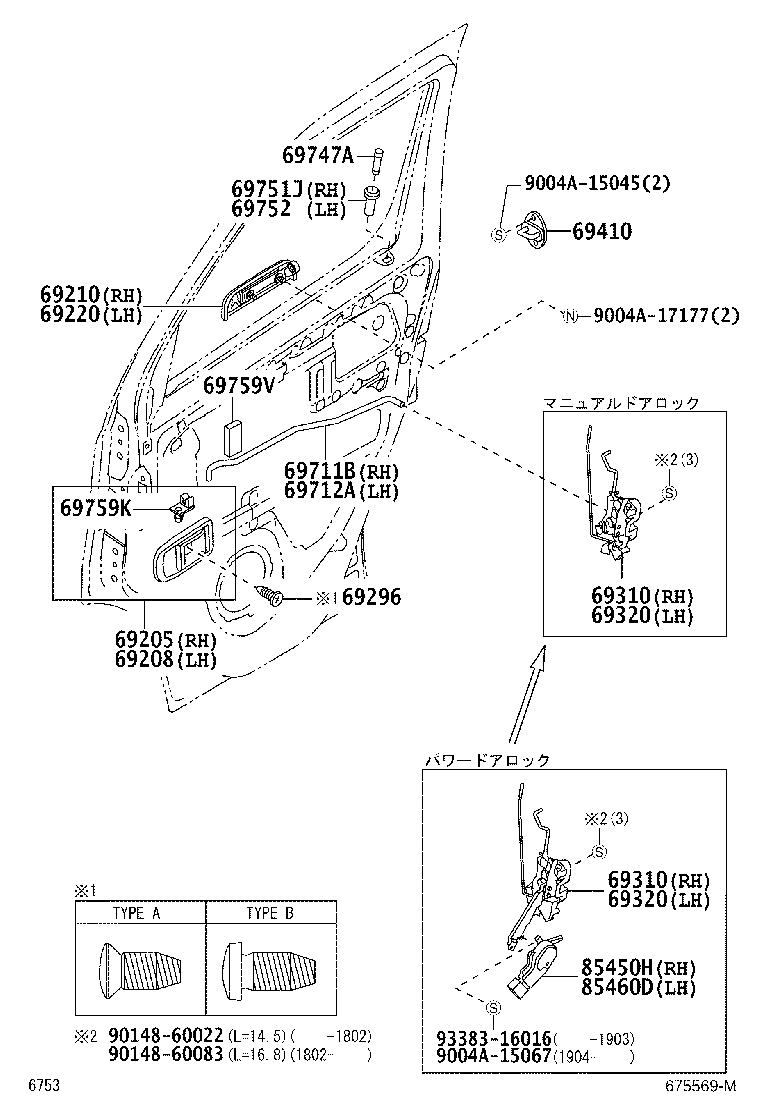

Click highlighted areas on diagram

diagram 69205 69208 69210 69220 69296 69310 69310 69320 69320 69410 69711B 69712A 69747A 69751J 69752 69759K 69759V 85450H 85460D 9004A15045 9004A15067 9004A17177 9014860022 9014860083 9338316016
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-BZ012B0

S402,412

DK.GRAY,TRIM1#

 1
69270-BZ012C0

S402,412

BLACK,TRIM1#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-BZ012B0

S402,412

DK.GRAY,TRIM1#

 1
69280-BZ012C0

S402,412

BLACK,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-BZ260

S402,412

塗装不要 材料着色 黒色,ｴﾌﾟﾄｼｰﾗ無し

 1
69210-BZ020

S402,412

塗装不要,ｴﾌﾟﾄｼｰﾗ付き

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-BZ020

S402,412

塗装不要,ｴﾌﾟﾄｼｰﾗ付き

 1
69220-BZ260

S402,412

塗装不要 材料着色 黒色,ｴﾌﾟﾄｼｰﾗ無し

 1
69296 - SCREW, DOOR INSIDE HANDLE
90041-62057

S402,412

ﾀｲﾌﾟ A

 1
90041-67041

S402,412

ﾀｲﾌﾟ B

 1
9004A-16093

S402,412

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69303-BZ040

S412..VAN..DX;S402,412..DXED,GL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69303-BZ040

S412..VAN..DX;S402,412..DXED,GL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69304-BZ040

S412..VAN..DX;S402,412..DXED,GL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69304-BZ040

S412..VAN..DX;S402,412..DXED,GL

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-BZ010

S402,412

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-BZ030

S402,412

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-BZ030

S402,412

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69743-BZ040C0

S402,412

BLACK,TRIM1#

 2
69751J - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-87704C0

S402,412

BLACK,TRIM1#

 1
69751-87704B0

S402,412

DK.GRAY,TRIM1#

 1
69752 - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-87704C0

S402,412

BLACK,TRIM1#

 1
69751-87704B0

S402,412

DK.GRAY,TRIM1#

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69279-BZ010

S402,412

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-87Z02

S402,412

 2
85460D - MOTOR ASSY, DOOR CONTROL, FRONT LH
85460-BZ010

S412..VAN..DX;S402,412..DXED,GL

 1
Common parts
9004A-15045
9004A-15067
9004A-17177
90148-60022
90148-60083
93383-16016
