S412M-ZQRFJD (2010)
Toyota Lite/Townace
Production
Jun 2010
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2007)VAN
Click highlighted areas on diagram
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-BZ020 |
S402,412..VAN |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57605-BZ030 |
S402,412..VAN |
1 | ||
| 57663B - PANEL, REAR FLOOR SIDE, REAR RH | ||||
| 57663-BZ010 |
S402,412..VAN |
1 | ||
| 57664B - PANEL, REAR FLOOR SIDE, REAR LH | ||||
| 57664-BZ010 |
S402,412..VAN |
1 | ||
| 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT | ||||
| 58302-BZ040 |
S412..VAN |
1 | ||
| 58302-BZ030 |
S412..VAN ﾘﾔ ﾋｰﾀ―無し |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-BZ020 |
S402,412..VAN |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-BZ020 |
S402,412..VAN |
1 | ||
| 58312 - PANEL, REAR BODY FLOOR, NO.1 | ||||
| 58312-BZ010 |
S402,412..VAN |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 57041-BZ020 |
S402,412..VAN |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 57042-BZ020 |
S402,412..VAN |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 52169-BZ040 |
S412..VAN ﾘﾔ ﾋｰﾀ―無し |
2 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 52169-BZ040 |
S412..VAN ﾘﾔ ﾋｰﾀ―無し |
2 | ||
| Common parts | ||||
| 26351-BZ010 | ||||
| 52571-BZ010 | ||||
| 90041-20156 | ||||
| 9004A-11365 | ||||
| 9004A-14016 | ||||
| 9004A-35005 | ||||
| 9004A-35009 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6451 | ||||
(0801-2007)VAN
Click highlighted areas on diagram

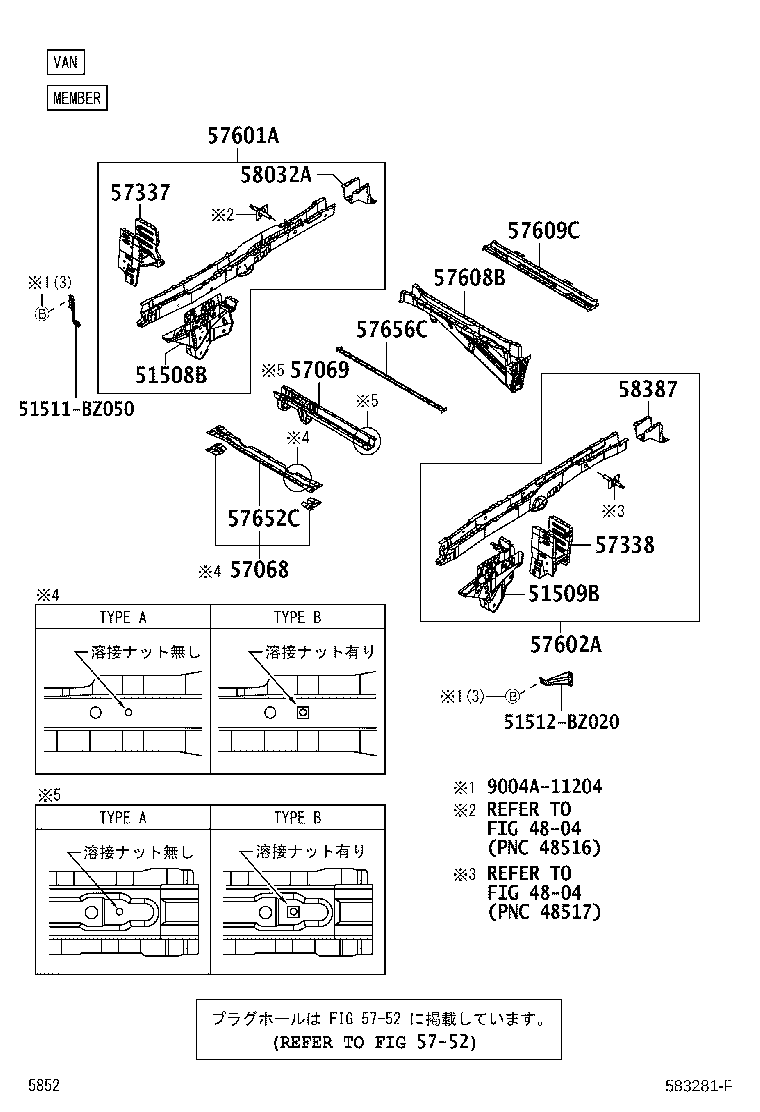

MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51508B - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH | ||||
| 51508-BZ060 |
S402,412..VAN |
1 | ||
| 51509B - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH | ||||
| 51509-BZ060 |
S402,412..VAN |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-BZ051 |
S402,412..VAN ﾀｲﾌﾟ B |
1 | ||
| 57068-BZ050 |
S402,412..VAN ﾀｲﾌﾟ A |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-BZ040 |
S402,412..VAN |
1 | ||
| 57069-BZ041 |
S402,412..VAN |
1 | ||
| 57337 - OUTRIGGER, REAR RH | ||||
| 57301-BZ080 |
S412..VAN |
1 | ||
| 57301-BZ070 |
S412..VAN ﾘﾔ ﾋｰﾀ―無し |
1 | ||
| 57338 - OUTRIGGER, REAR LH | ||||
| 57302-BZ080 |
S402,412..VAN |
1 | ||
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-BZ160 |
S412..VAN |
1 | ||
| 57601-BZ150 |
S412..VAN ﾘﾔ ﾋｰﾀ―無し |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-BZ170 |
S402,412..VAN |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-BZ130 |
S402,412..VAN |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-BZ020 |
S402,412..VAN |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-BZ040 |
S402,412..VAN |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-BZ040 |
S402,412..VAN |
1 | ||
| 58032A - PANEL SUB-ASSY, FLOOR, REAR | ||||
| 58037-BZ010 |
S402,412..VAN |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58038-BZ020 |
S402,412..VAN |
1 | ||
| Common parts | ||||
| 51511-BZ050 | ||||
| 51512-BZ020 | ||||
| 9004A-11204 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 5752 | ||||
