S412M-ZMRFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)

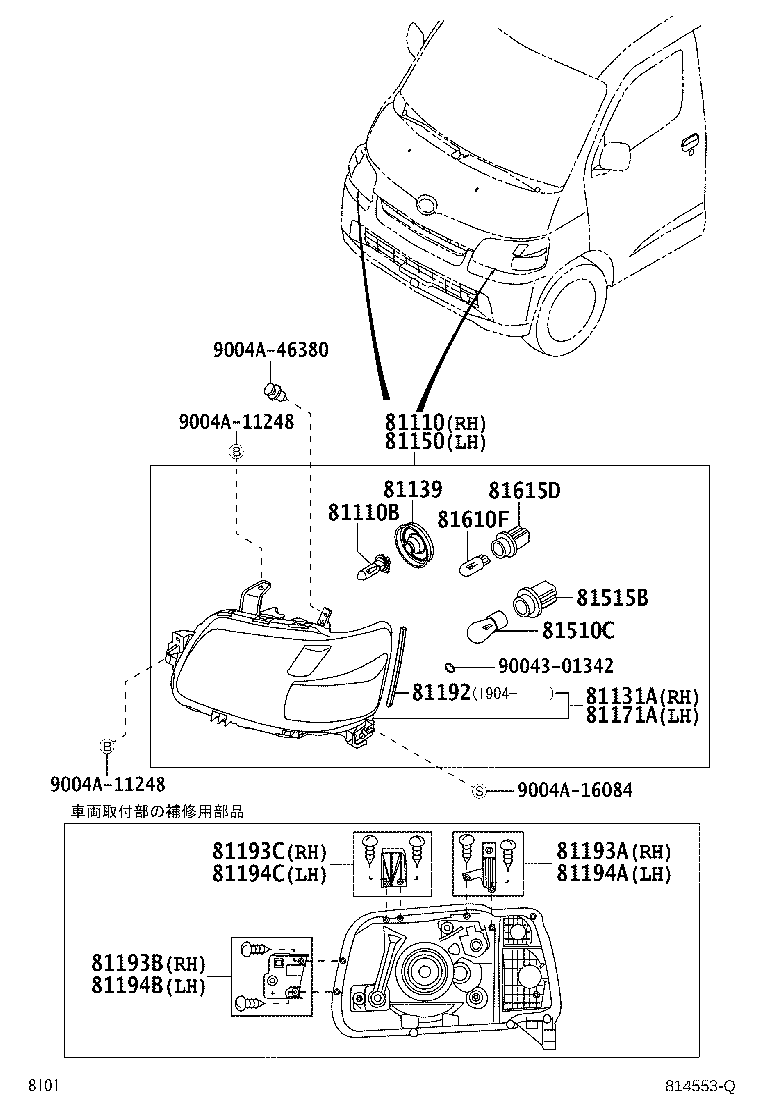

Click highlighted areas on diagram

diagram 81110 81110B 81131A 81139 81150 81171A 81192 81193A 81193B 81193C 81194A 81194B 81194C 81510C 81515B 81610F 81615D 9004301342 9004A11248 9004A11248 9004A16084 9004A46380
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-BZ110

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ無し

 1
81110-BZ111

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ付き

 1
81110B - BULB(FOR HEADLAMP, NO.1)
9004A-81045

S402,412

12V 60/55W

 2
81131A - UNIT, HEADLAMP, RH
81130-BZ070

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ無し

 1
81130-BZ071

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ付き

 1
81139 - COVER, HEADLAMP SOCKET
81139-BZ010

S402,412

 2
81150 - HEADLAMP ASSY, LH
81150-BZ110

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ無し

 1
81150-BZ111

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ付き

 1
81171A - UNIT, HEADLAMP, LH
81170-BZ071

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ付き

 1
81170-BZ070

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ無し

 1
81192 - SEAL, HEADLAMP
81192-BZ010

S402,412

ｽﾎﾟﾝｼﾞ ｺﾞﾑ

 2
81193A - PROTECTOR, HEADLAMP, RH
81193-BZ010

S402,412

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-BZ020

S402,412

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-BZ030

S402,412

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-BZ010

S402,412

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-BZ020

S402,412

 1
81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194-BZ030

S402,412

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90080-81116

S402,412

12V 21W,黄

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006

S402,412

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013

S402,412

12V 5W T10

 2
81615D - SOCKET, CLEARANCE LAMP
81179-97205

S402,412

 2
Common parts
90043-01342
9004A-11248
9004A-16084
9004A-46380
