S412M-ZMRFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

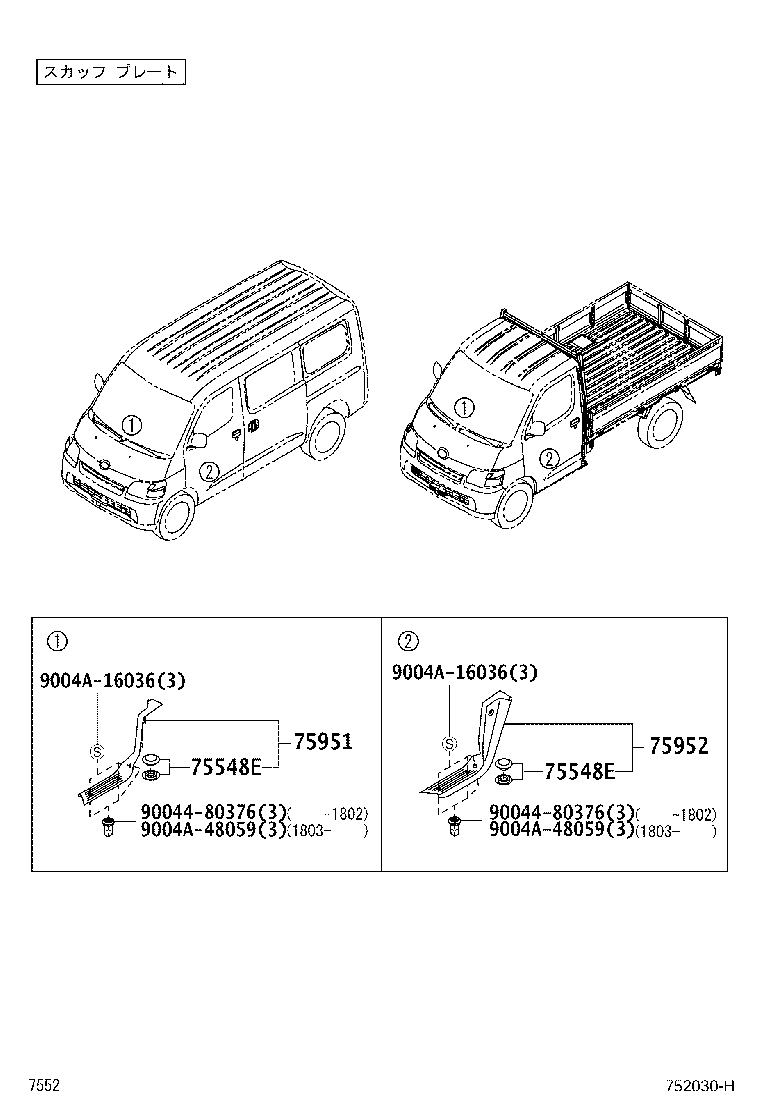

ILLUST NO. 2 OF 2(0801-2007)

Click highlighted areas on diagram

ｽｶｯﾌ ﾌﾟﾚｰﾄ

diagram 75548E 75548E 75951 75952 9004480376 9004480376 9004A16036 9004A16036 9004A48059 9004A48059
Part # Description Qty Price
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
58521-BZ500B0

S402,412

DK.GRAY,TRIM1#

 2
58558-87501B2

S402,412

DK.GRAY,TRIM1#

 2
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
58521-BZ500B0

S402,412

DK.GRAY,TRIM1#

 2
58558-87501B2

S402,412

DK.GRAY,TRIM1#

 2
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-BZ071B0

S402,412

DK.GRAY,TRIM1#

 1
67913-BZ070B0

S402,412

DK.GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-BZ070B0

S402,412

DK.GRAY,TRIM1#

 1
67914-BZ071B0

S402,412

DK.GRAY,TRIM1#

 1
Common parts
90044-80376
9004A-16036
9004A-48059
