S412M-ZMRFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)5F

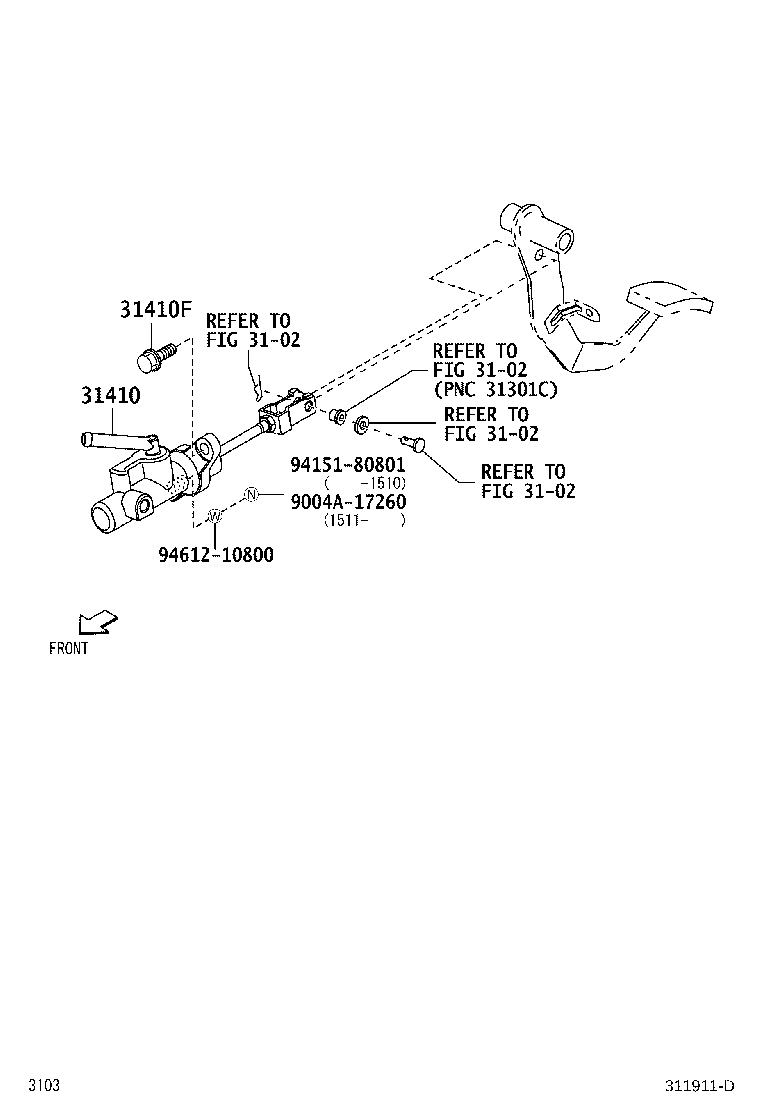

Click highlighted areas on diagram

diagram 3102 3102 3102 3102 31410 31410F 9004A17260 9415180801 9461210800
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-BZ030

S402,412..5F

 1
31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER)
91551-80818

S402,412..5F

 1
Common parts
9004A-17260
94151-80801
94612-10800
Linked diagrams
3102
