S412M-ZMDFJD (2010)
Toyota Lite/Townace
Production
Jun 2010
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1006- )3SZVE..S412

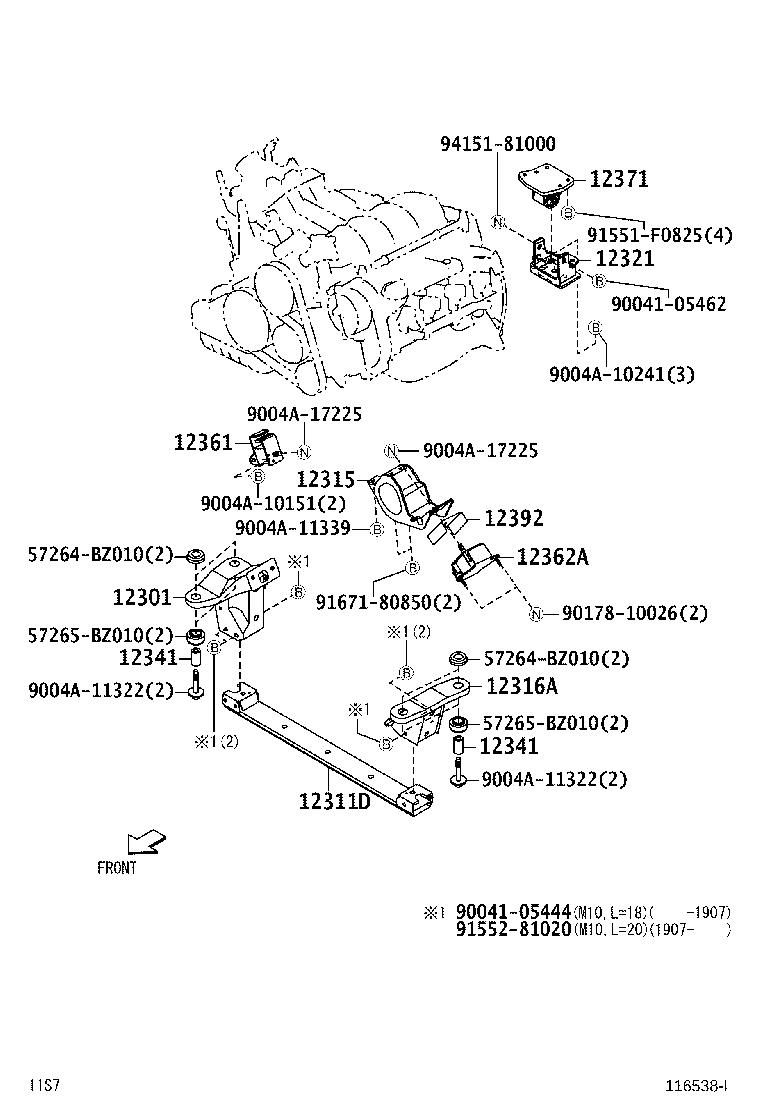

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12301 - BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH | ||||
| 12301-BZ060 |
3SZVE..S402,412..VAN |
1 | ||
| 12311D - BRACKET, ENGINE MOUNTING | ||||
| 51204-BZ051 |
3SZVE..S402,412..VAN |
1 | ||
| 51204-BZ050 |
3SZVE..S402,412..VAN |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-B2070 |
3SZVE..S412 |
1 | ||
| 12316A - BRACKET, ENGINE MOUNTING, FR NO.2 LH | ||||
| 12302-BZ020 |
3SZVE..S402,412..VAN |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-B0010 |
3SZVE..S412 |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-BZ010 |
3SZVE..S402,412 |
4 | ||
| 12341-87501 |
3SZVE..S402,412 |
4 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-BZ010 |
3SZVE..S402,412 |
4 | ||
| 12341-87501 |
3SZVE..S402,412 |
4 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-BZ171 |
3SZVE..S402,412 |
1 | ||
| 12361-BZ170 |
3SZVE..S412 |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12362-BZ170 |
3SZVE..S412 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-B5080 |
3SZVE..S412 |
1 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12392-BZ010 |
3SZVE..S402,412 |
1 | ||
| Common parts | ||||
| 57264-BZ010 | ||||
| 57265-BZ010 | ||||
| 90041-05444 | ||||
| 90041-05462 | ||||
| 9004A-10151 | ||||
| 9004A-10241 | ||||
| 9004A-11322 | ||||
| 9004A-11339 | ||||
| 9004A-17225 | ||||
| 90178-10026 | ||||
| 91551-F0825 | ||||
| 91552-81020 | ||||
| 91671-80850 | ||||
| 94151-81000 | ||||
