S403U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )PIC

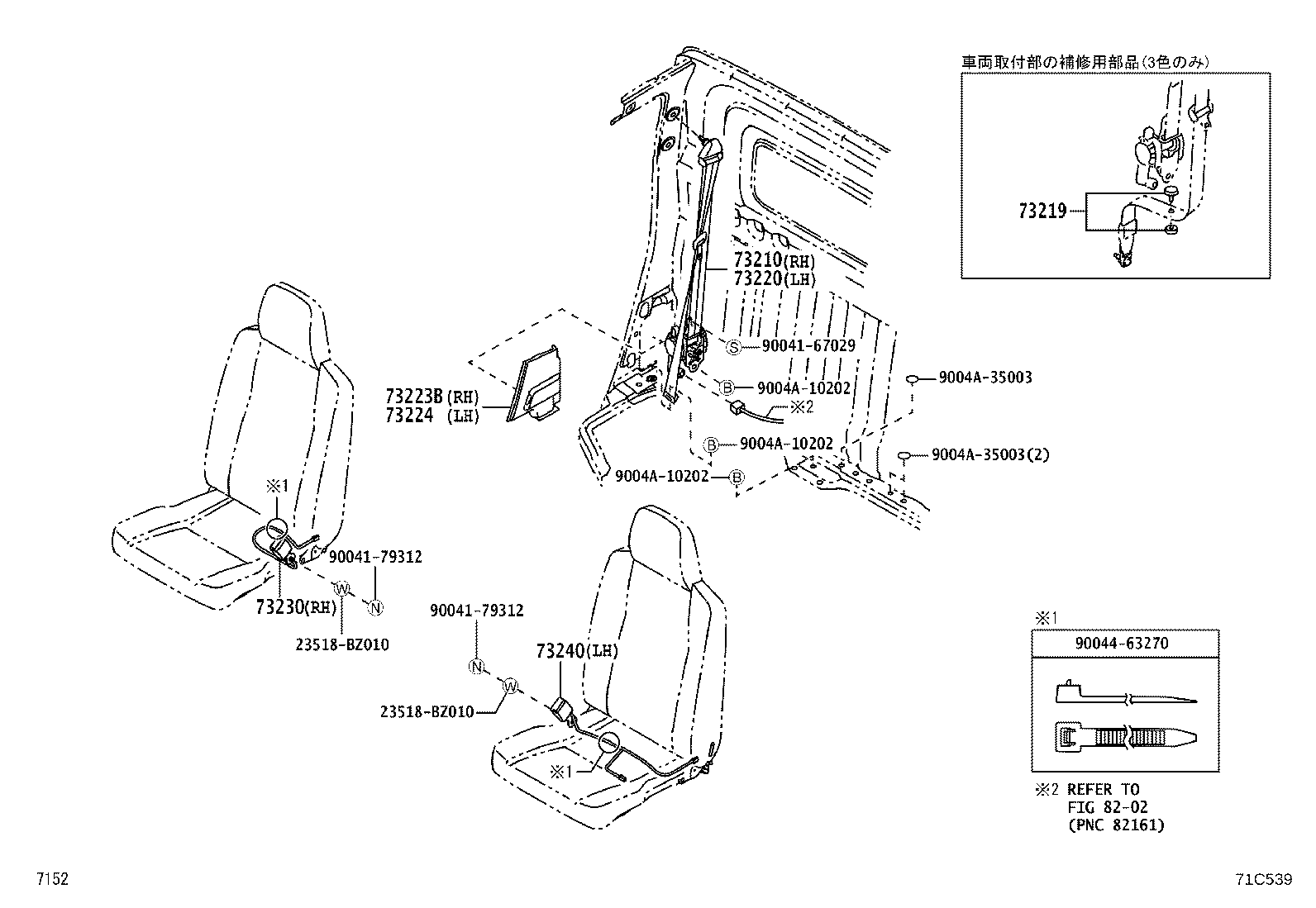

Click highlighted areas on diagram

diagram 23518BZ010 23518BZ010 73210 73219 73220 73223B 73224 73230 73240 8202 9004167029 9004179312 9004179312 9004463270 9004A10202 9004A10202 9004A10202 9004A35003 9004A35003
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-BZ550B0

S403,413..PIC

SHADOW GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

S403,413

ﾌﾞﾗｯｸ

 1
73219-33020

S403,413

ｸﾞﾚｰ

 1
73219-33030

S403,413

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-BZ540B0

S403,413..PIC

SHADOW GRAY,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-BZ070B0

S403,413..PIC

DK.GRAY,TRIM1#

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-BZ020B0

S403,413..PIC

DK.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-BZ800B0

S403,413..PIC

DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-BZ810B0

S403,413..PIC

DK.GRAY,TRIM1#

 1
Common parts
23518-BZ010
90041-67029
90041-79312
90044-63270
9004A-10202
9004A-35003
Linked diagrams
8202
