S403U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )PIC..CBU

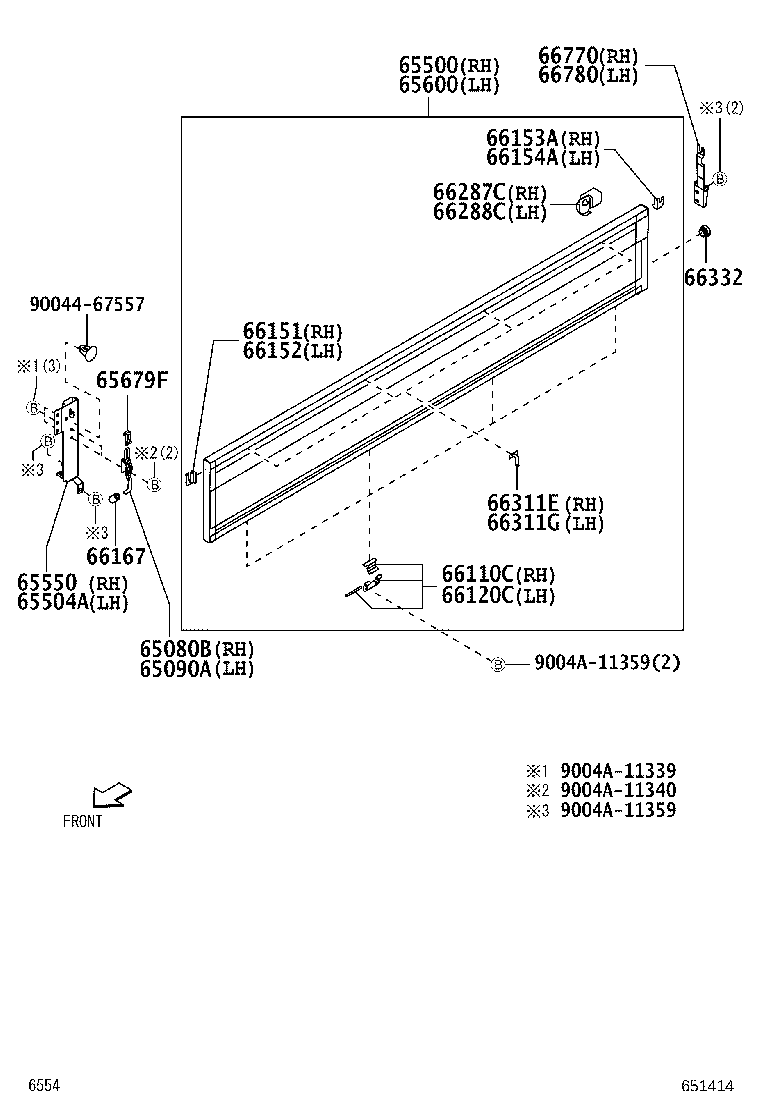

Click highlighted areas on diagram

diagram 65080B 65090A 65500 65504A 65550 65600 65679F 66110C 66120C 66151 66152 66153A 66154A 66167 66287C 66288C 66311E 66311G 66332 66770 66780 9004467557 9004A11339 9004A11340 9004A11359 9004A11359
Part # Description Qty Price
65080B - HANDLE ASSY, SIDE GATE LATCH
65080-BZ012

S403,413..PIC..CBU

 1
65090A - HANDLE ASSY, SIDE GATE LATCH, LH
65090-BZ012

S403,413..PIC..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65001-BZ021

S403,413..PIC..CBU

 1
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65205-BZ023

S403,413..PIC..CBU

 1
65550 - POST ASSY, SIDE PANEL FRONT END, RH
65204-BZ023

S403,413..PIC..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65002-BZ021

S403,413..PIC..CBU

 1
65679F - PROTECTOR, SIDE GATE
66135-B5010

S403,413..PIC..CBU

 2
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
66110-BZ071

S403,413..PIC..CBU

 4
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
66110-BZ071

S403,413..PIC..CBU

 4
66151 - LATCH, SIDE GATE FEMALE, RH
66151-BZ021

S403,413..PIC..CBU

 1
66152 - LATCH, SIDE GATE FEMALE, LH
66152-BZ021

S403,413..PIC..CBU

 1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-BZ020

S403,413..PIC..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-BZ010

S403,413..PIC..CBU

 1
66167 - CAP, SIDE GATE LATCH HANDLE
66165-BZ010

S403,413..PIC..CBU

 2
66287C - BRACKET, TAIL GATE CHAIN, RH
66287-B5030

S403,413..PIC..CBU

 1
66288C - BRACKET, TAIL GATE CHAIN, LH
66288-B5010

S403,413..PIC..CBU

 1
66311E - HOOK, ROPE
66310-BZ010

S403,413..PIC..CBU

 4
66311G - HOOK, ROPE
66310-BZ010

S403,413..PIC..CBU

 4
66332 - CUSHION, RUBBER
9004A-54031

S403,413..PIC..CBU

 2
66770 - SUPPORT SUB-ASSY, SIDE GATE, RH
66130-BZ010

S403,413..PIC..CBU

 1
66780 - SUPPORT SUB-ASSY, SIDE GATE, LH
66140-BZ010

S403,413..PIC..CBU

 1
Common parts
90044-67557
9004A-11339
9004A-11340
9004A-11359
