S403U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

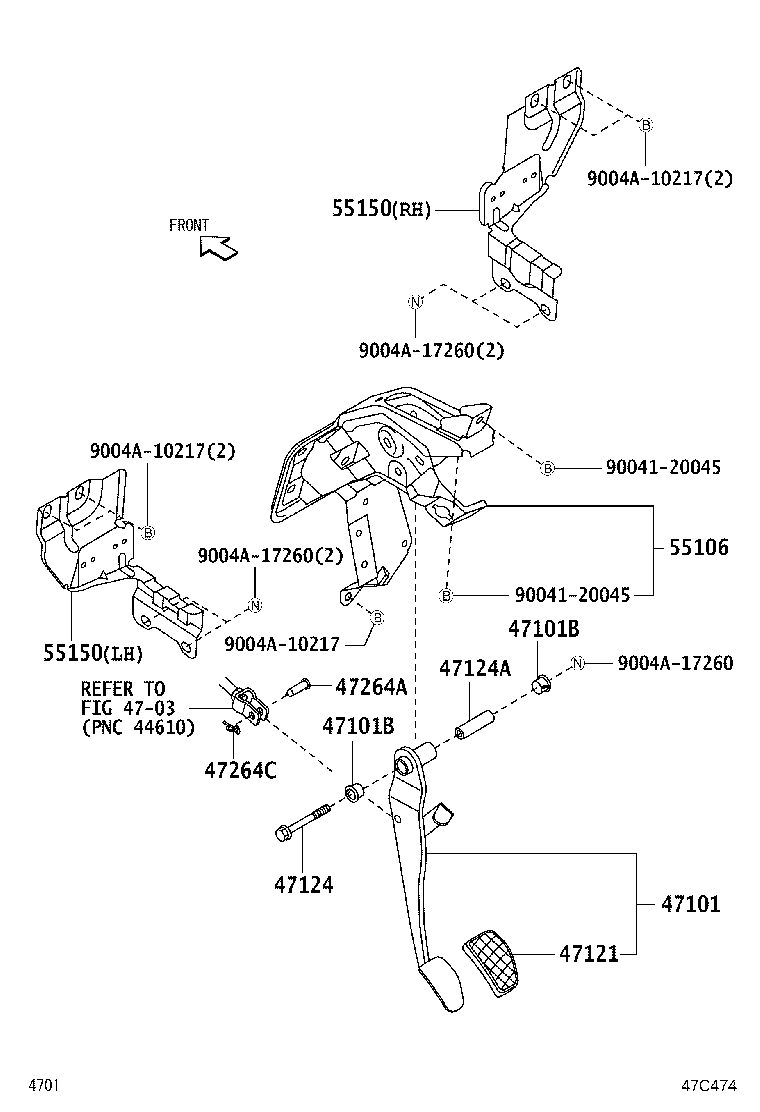

Click highlighted areas on diagram

diagram 4703 47101 47101B 47101B 47121 47124 47124A 47264A 47264C 55106 55150 55150 9004120045 9004120045 9004A10217 9004A10217 9004A10217 9004A17260 9004A17260 9004A17260
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-BZ520

S403,413

 1
47101B - BUSH(FOR BRAKE PEDAL)
9004A-38021

S403,413

 2
47101B - BUSH(FOR BRAKE PEDAL)
9004A-38021

S403,413

 2
47121 - PAD, BRAKE PEDAL
31321-BZ140

S403,413

 1
47124 - SHAFT, BRAKE PEDAL
91551-80865

S403,413

 1
9004A-10281

S403,413

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
9004A-56109

S403,413

 1
9004A-56112

S403,413

 1
47264A - PIN(FOR PUSH ROD)
90042-40151

S403,413

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90044-68076

S403,413

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-BZ420

S403,413

 1
55150 - BRACKET ASSY, PEDAL
55715-BZ010

S403,413

右側

 1
55716-BZ010

S403,413

左側

 1
55150 - BRACKET ASSY, PEDAL
55715-BZ010

S403,413

右側

 1
55716-BZ010

S403,413

左側

 1
Common parts
90041-20045
9004A-10217
9004A-17260
Linked diagrams
4703
