S403U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2007-2107)

Click highlighted areas on diagram

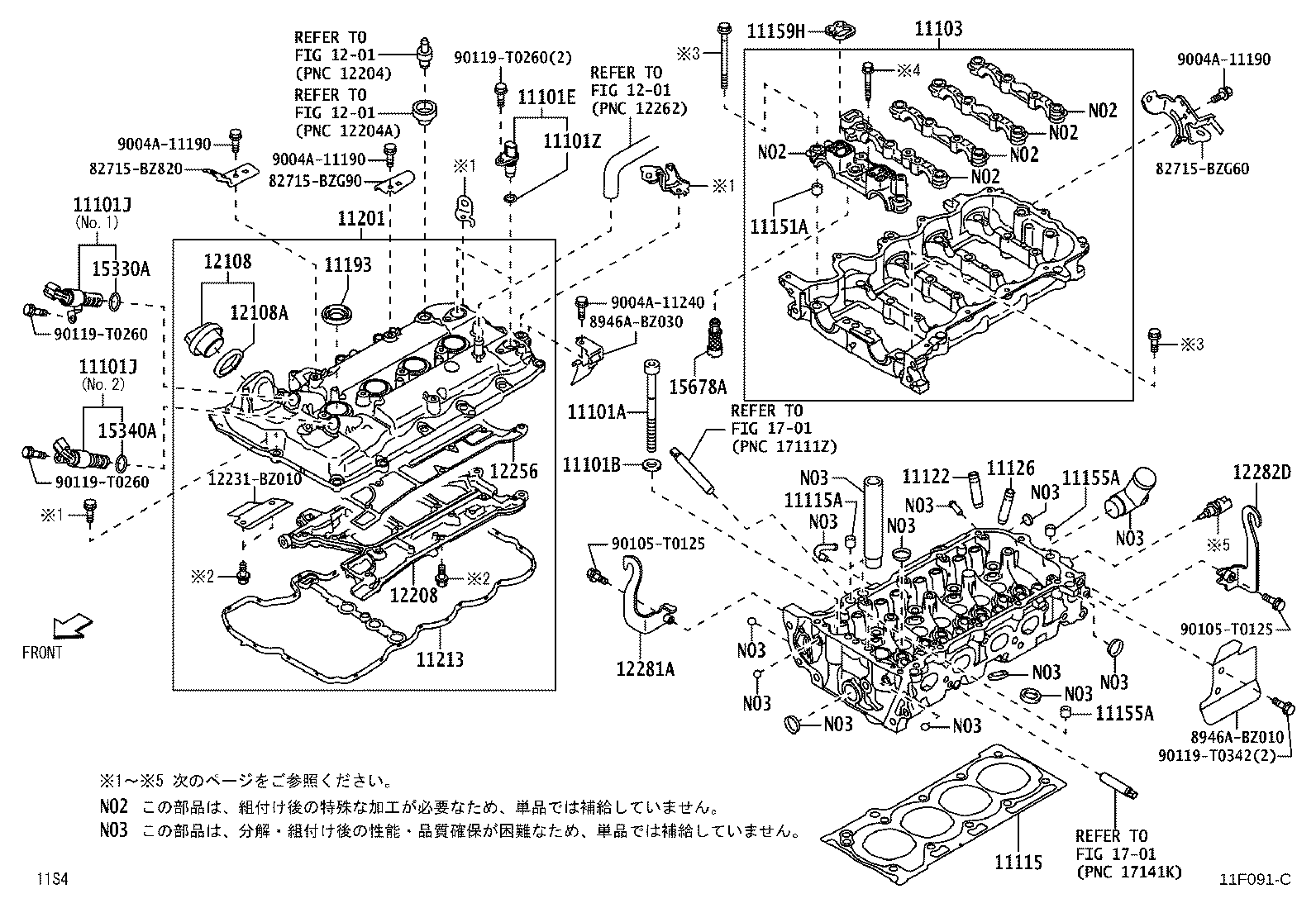

diagram 11101A 11101B 11101E 11101J 11101J 11101Z 11103 11115 11115A 11122 11126 11151A 11155A 11155A 11159H 11193 11201 11213 1201 1201 1201 12108 12108A 12208 12231BZ010 12256 12281A 12282D 15330A 15340A 15678A 1701 1701 82715BZ820 82715BZG60 82715BZG90 8946ABZ010 8946ABZ030 9004A11190 9004A11190 9004A11190 9004A11240 90105T0125 90105T0125 90119T0260 90119T0260 90119T0260 90119T0342
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-T2012

2NRVE..S403,413

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2NRVE..S403,413

 10
11101E - SENSOR, CAM POSITION
90919-T5002

2NRVE..S403,413

 2
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-0Y060

2NRVE..S403,413

NO.2

 1
15330-BZ090

2NRVE..S403,413

NO.1

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-0Y060

2NRVE..S403,413

NO.2

 1
15330-BZ090

2NRVE..S403,413

NO.1

 1
11101Z - O RING, CAM POSITION SENSOR
9004A-30059

2NRVE..S403,413

 2
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-BZ020

2NRVE..S403,413

 1
11115 - GASKET, CYLINDER HEAD
11115-BZ100

2NRVE..S403,413

 1
11115A - PIN, RING
9004A-25038

2NRVE..S403,413

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-47020

2NRVE..S403,413

STD

 8
11123-47020

2NRVE..S403,413

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-47020

2NRVE..S403,413

O/S 0.05

 8
11122-47020

2NRVE..S403,413

STD

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005

2NRVE..S403,413

長さ=12.5,外径=8

 10
11155A - PIN, RING W/HEAD
90253-11005

2NRVE..S403,413

 2
11155A - PIN, RING W/HEAD
90253-11005

2NRVE..S403,413

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-0Y020

2NRVE..S403,413

 2
11193 - GASKET, SPARK PLUG TUBE
11193-BZ010

2NRVE..S403,413

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-BZ070

2NRVE..S403,413

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-BZ160

2NRVE..S403,413

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-BZ060

2NRVE..S403,413

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2NRVE..S403,413

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-BZ010

2NRVE..S403,413

 1
12256 - GASKET, VENTILATION BAFFLE
12256-BZ010

2NRVE..S403,413

 1
12281A - HANGER, ENGINE, NO.1
12281-BZ080

2NRVE..S403,413

 1
12282D - HANGER, ENGINE, NO.2
12282-BZ141

2NRVE..S403,413

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90043-01262

2NRVE..S403,413

 1
15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90068-14041

2NRVE..S403,413

 1
15678A - FILTER, OIL CONTROL VALVE
15678-0Y010

2NRVE..S403,413

 1
Common parts
12231-BZ010
82715-BZ820
82715-BZG60
82715-BZG90
8946A-BZ010
8946A-BZ030
9004A-11190
9004A-11240
90105-T0125
90119-T0260
90119-T0342
Linked diagrams
1201
1701

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

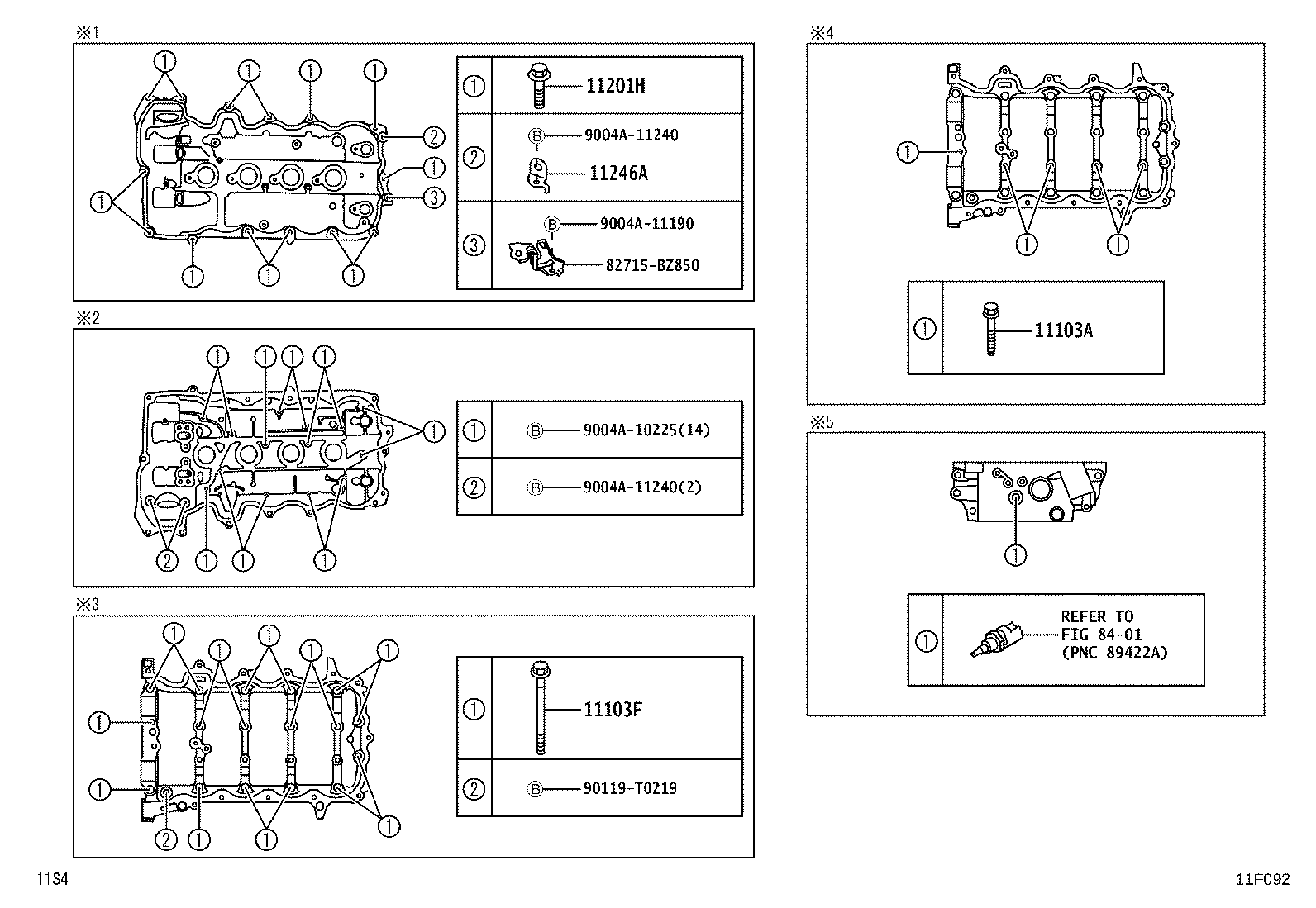

diagram 11103A 11103F 11201H 11246A 82715BZ850 8401 9004A10225 9004A11190 9004A11240 9004A11240 90119T0219
Part # Description Qty Price
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90119-T0443

2NRVE..S403,413

M7,L=40

 5
11103F - BOLT(FOR CAMSHAFT HOUSING SET)
90105-T0271

2NRVE..S403,413

M8,L=70

 17
11201H - BOLT(FOR CYLINDER HEAD COVER)
90105-T0052

2NRVE..S403,413

M6,L=25

 14
11246A - PLATE, CLAMP BASE
11246-BZ010

2NRVE..S403,413

 1
Common parts
82715-BZ850
9004A-10225
9004A-11190
9004A-11240
90119-T0219
Linked diagrams
8401
