S402U-TQRFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

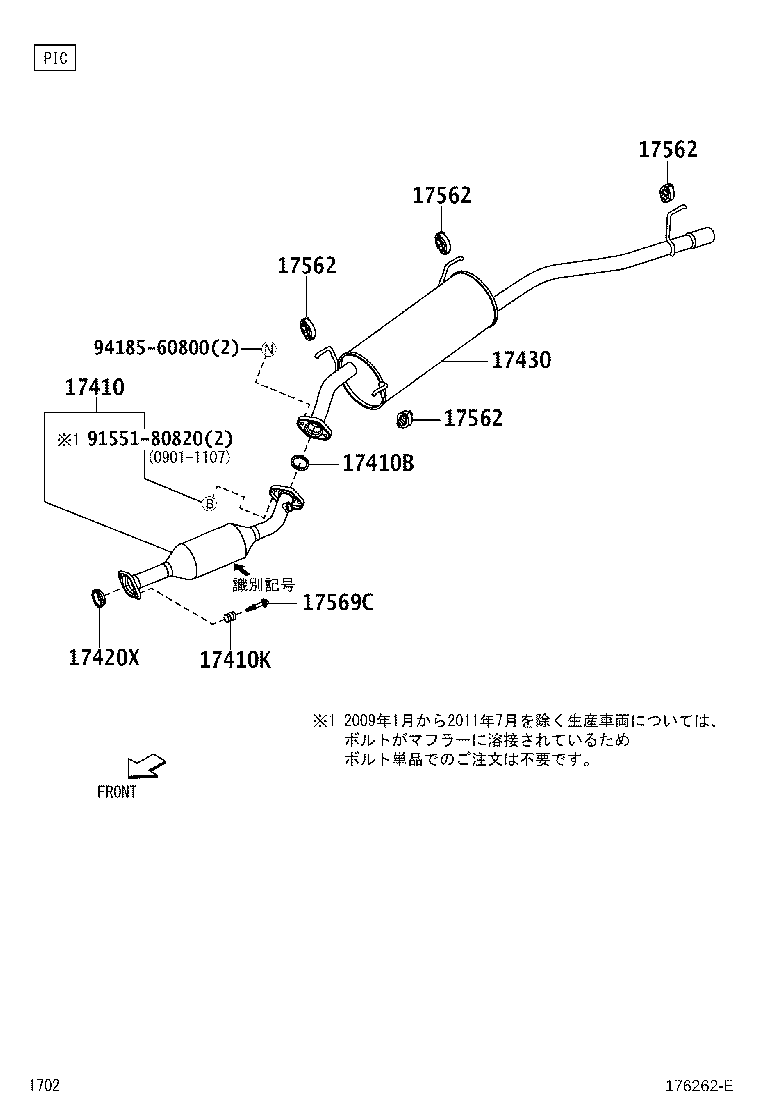

(0801- )3SZVE..PIC

Click highlighted areas on diagram

diagram 17410 17410B 17410K 17420X 17430 17562 17562 17562 17562 17569C 9155180820 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ271

3SZVE..S402,412..PIC

識別記号=G

 1
17410-BZ270

3SZVE..S402,412..PIC

 1
17410-BZ272

3SZVE..S402,412..PIC

識別記号 = P

 1
17410-BZ680

3SZVE..S402,412..PIC

識別記号=S

 1
17410B - GASKET, EXHAUST PIPE
17451-BZ010

3SZVE..S402,412

 1
17410K - SPRING, EXHAUST PIPE
17152-BZ010

3SZVE..S402,412

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-B0010

3SZVE..S402,412

 1
17451-64031

3SZVE..S402,412

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-BZ180

3SZVE..S402,412..PIC

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

3SZVE..S402,412

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

3SZVE..S402,412

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

3SZVE..S402,412

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

3SZVE..S402,412

 4
17569C - BOLT, EXHAUST PIPE SUPPORT
9004A-10221

3SZVE..S402,412

 2
90901-05026

3SZVE..S402,412

 2
Common parts
91551-80820
94185-60800
