S402U-TQRFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )

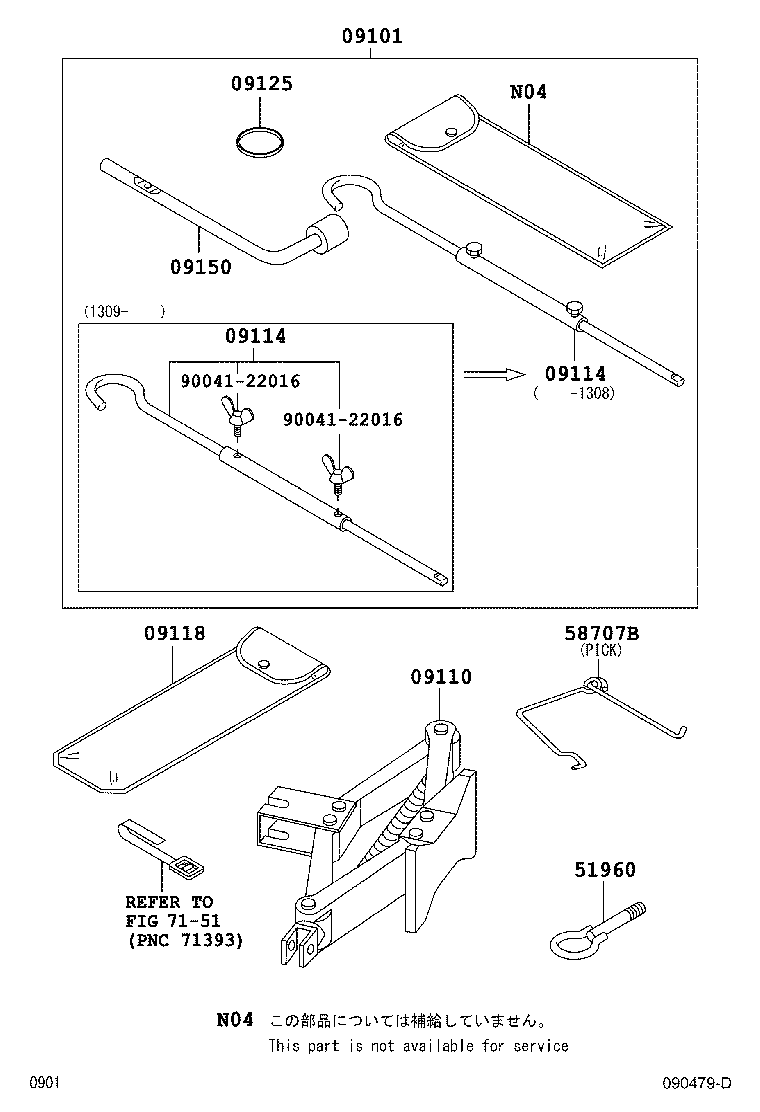

Click highlighted areas on diagram

diagram 09101 09110 09114 09114 09118 09125 09150 51960 58707B 7151 9004122016 9004122016
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-BZ121

S402,412

 1
09101-BZ120

S402,412

 1
09110 - JACK ASSY
09111-BZ151

S402,412

 1
09111-BZ150

S402,412

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-BZ041

S402,412

 1
09114-BZ040

S402,412

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-BZ041

S402,412

 1
09114-BZ040

S402,412

 1
09118 - COVER, JACK
09118-BZ010

S402,412

 1
09125 - BAND, TOOL BAG
09125-BZ010

S402,412

 1
09150 - WRENCH, HUB NUT BOX
09150-87Z01

S402,412

 1
09150-BZ040

S402,412

 1
51960 - HOOK ASSY, FRONT
51960-BZ070

S402,412..PIC

 1
58707B - HOLDER SUB-ASSY, JACK
58792-BZ020

S402,412..PIC

 1
Common parts
90041-22016
Linked diagrams
7151
