S402U-TQDFJD (2008)
Toyota Lite/Townace
Production
Jan 2008
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

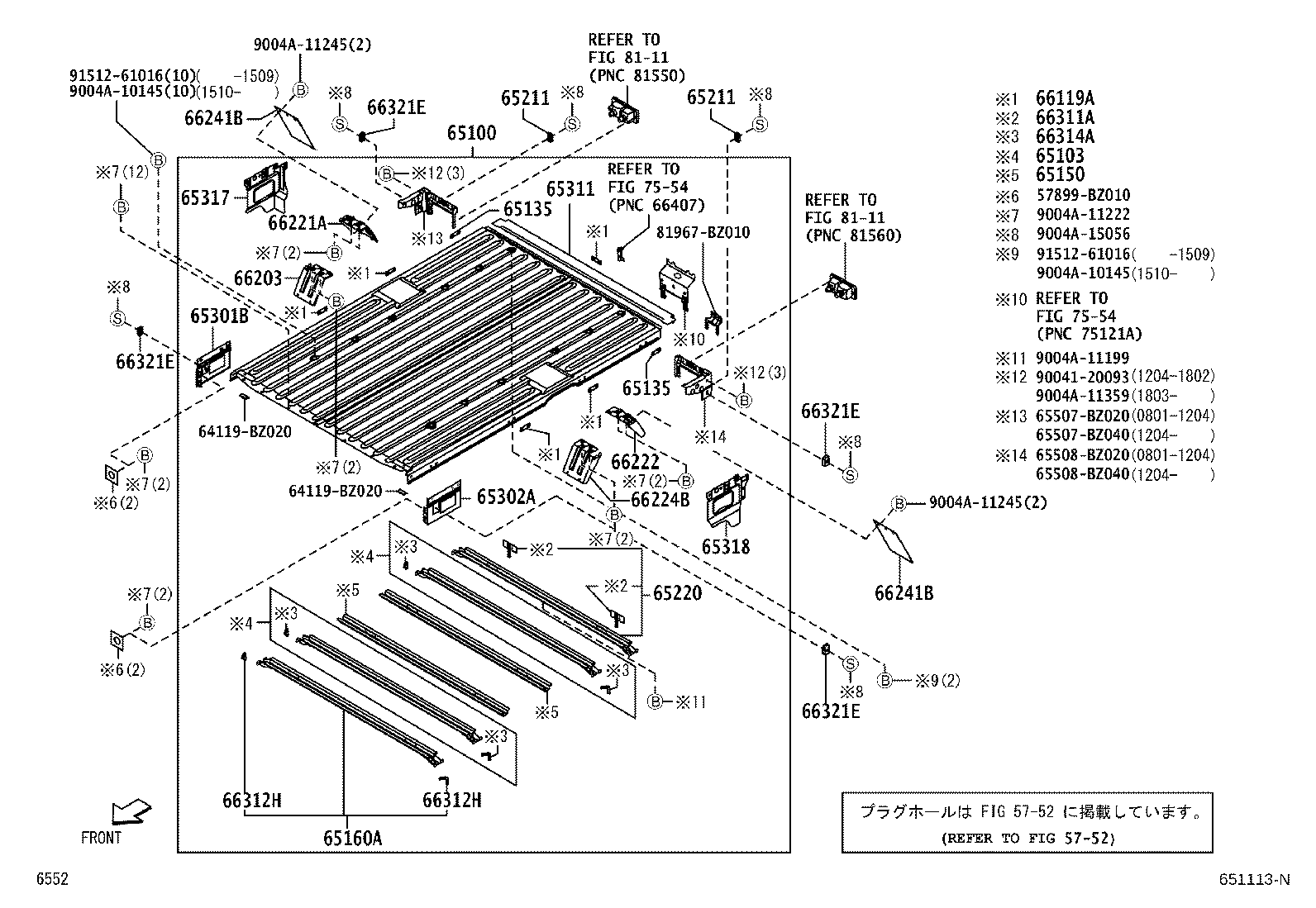

(0801- )S402,412..PIC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65008-BZ021 |
S402,412..PIC |
1 | ||
| 65008-BZ020 |
S402,412..PIC |
1 | ||
| 65103 - BRACKET SUB-ASSY, MOUNTING, NO.1 | ||||
| 65103-BZ020 |
S402,412..PIC |
2 | ||
| 65135 - PATCH, MAIN SILL | ||||
| 66119-BZ020 |
S402,412..PIC |
2 | ||
| 66119-BZ010 |
S402,412..PIC |
2 | ||
| 65135 - PATCH, MAIN SILL | ||||
| 66119-BZ020 |
S402,412..PIC |
2 | ||
| 66119-BZ010 |
S402,412..PIC |
2 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65101-BZ020 |
S402,412..PIC |
2 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65102-BZ020 |
S402,412..PIC |
1 | ||
| 65211 - CUSHION, REAR DECK END | ||||
| 66324-BZ020 |
S402,412..PIC |
2 | ||
| 66331-87506 |
S402..PIC |
2 | ||
| 65211 - CUSHION, REAR DECK END | ||||
| 66324-BZ020 |
S402,412..PIC |
2 | ||
| 66331-87506 |
S402..PIC |
2 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65104-BZ020 |
S402,412..PIC |
1 | ||
| 65301B - PANEL SUB-ASSY, FLOOR FRONT CONER, RH | ||||
| 65301-BZ010 |
S402,412..PIC |
1 | ||
| 65302A - PANEL SUB-ASSY, FLOOR FRONT CONER, LH | ||||
| 65302-BZ010 |
S402,412..PIC |
1 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-BZ020 |
S402,412..PIC |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65035-BZ010 |
S402,412..PIC |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65036-BZ010 |
S402,412..PIC |
1 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-BZ010 |
S402,412..PIC |
5 | ||
| 66203 - PLATE SUB-ASSY, REAR FENDER, RH | ||||
| 66223-BZ020 |
S402,412..PIC |
1 | ||
| 66221A - PLATE, REAR FENDER, REAR RH | ||||
| 66221-BZ020 |
S402,412..PIC |
1 | ||
| 66222 - PLATE, REAR FENDER, REAR LH | ||||
| 66222-BZ020 |
S402,412..PIC |
1 | ||
| 66224B - PLATE, REAR FENDER, FRONT LH | ||||
| 66224-BZ020 |
S402,412..PIC |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-BZ010 |
S402,412..PIC |
2 | ||
| 66241-B5010 |
S402,412..PIC |
2 | ||
| 66224-87Z01 |
S402..PIC |
2 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-BZ010 |
S402,412..PIC |
2 | ||
| 66241-B5010 |
S402,412..PIC |
2 | ||
| 66224-87Z01 |
S402..PIC |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66301-BZ010 |
S402,412..PIC |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66313-97503 |
S402,412..PIC |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66313-97503 |
S402,412..PIC |
2 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66313-97503 |
S402,412..PIC |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66324-BZ010 |
S402,412..PIC |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66324-BZ010 |
S402,412..PIC |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66324-BZ010 |
S402,412..PIC |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66324-BZ010 |
S402,412..PIC |
4 | ||
| Common parts | ||||
| 57899-BZ010 | ||||
| 64119-BZ020 | ||||
| 65507-BZ020 | ||||
| 65507-BZ040 | ||||
| 65508-BZ020 | ||||
| 65508-BZ040 | ||||
| 81967-BZ010 | ||||
| 90041-20093 | ||||
| 9004A-10145 | ||||
| 9004A-11199 | ||||
| 9004A-11222 | ||||
| 9004A-11245 | ||||
| 9004A-11359 | ||||
| 9004A-15056 | ||||
| 91512-61016 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7554 | ||||
| 8111 | ||||
