S402U-TMRFJD (2008)
Toyota Lite/Townace
Production
Jan 2008
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2007)PIC

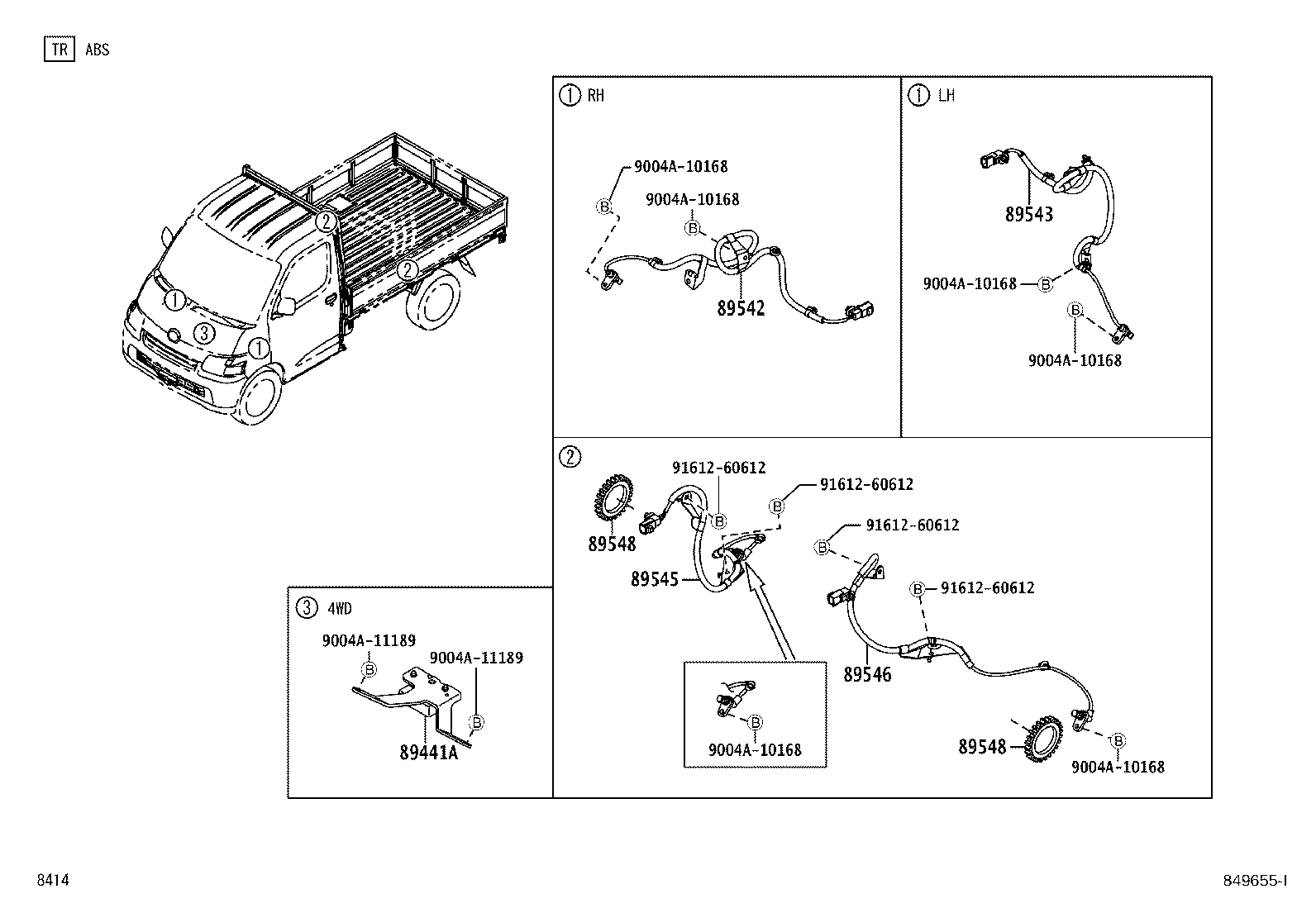

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-B5030 |
S402 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-B5030 |
S402 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-B5030 |
S402,412..PIC |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-B5030 |
S402..PIC |
1 | ||
| 89546-B5031 |
S402,412..PIC |
1 | ||
| 89548 - ROTOR, SKID CONTROL SENSOR | ||||
| 89547-97506 |
S402,412 |
2 | ||
| 89548 - ROTOR, SKID CONTROL SENSOR | ||||
| 89547-97506 |
S402,412 |
2 | ||
| Common parts | ||||
| 9004A-10168 | ||||
| 9004A-11189 | ||||
| 91612-60612 | ||||
