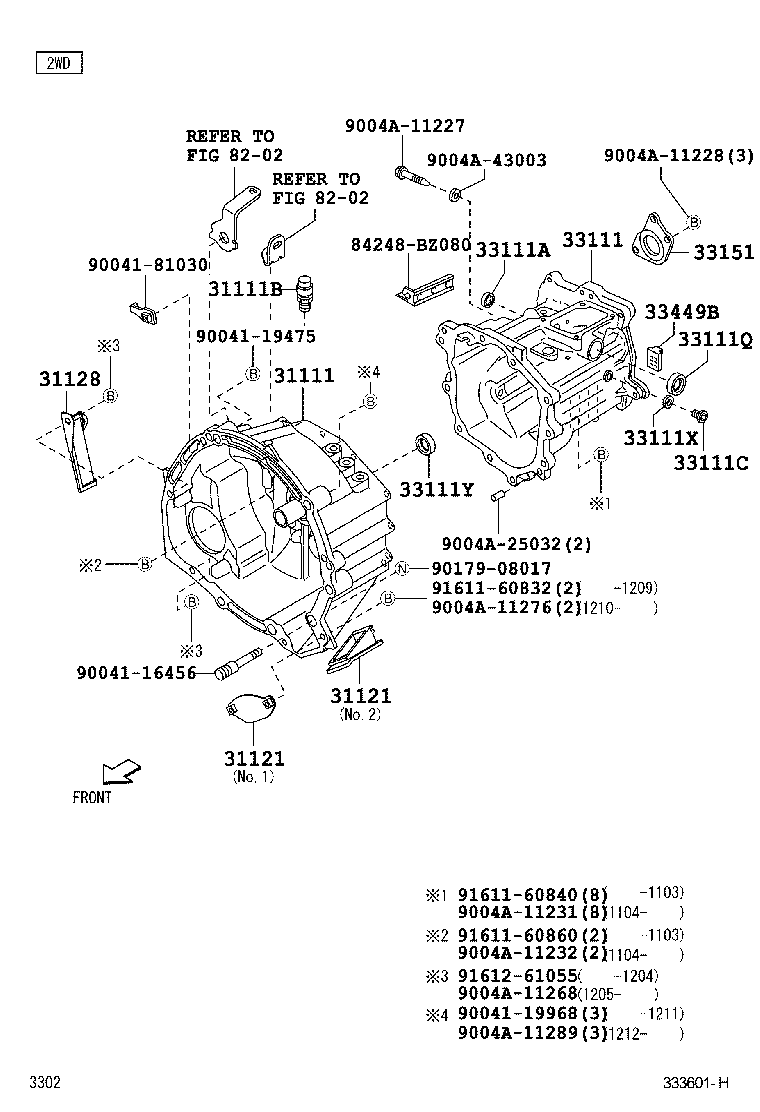

Toyota Lite/townace S402U CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-BZ030	S402,412..5F	01/2008 - 07/2020	1
31111B - PLUG(FOR CLUTCH HOUSING)
9004A-93003	S402..5F	01/2008 - 07/2020	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-BZ020	S402,412..5F NO.2	01/2008 - 02/2016	1
31121-BZ050	S402,412..5F NO.2	03/2016 - 07/2020	1
31121-BZ040	S402,412..5F NO.1	01/2008 - 07/2020	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-BZ020	S402,412..5F NO.2	01/2008 - 02/2016	1
31121-BZ050	S402,412..5F NO.2	03/2016 - 07/2020	1
31121-BZ040	S402,412..5F NO.1	01/2008 - 07/2020	1
31128 - COVER, CLUTCH HOUSING UNDER
31128-97501	S402,412..5F	01/2008 - 09/2015	1
31128-BZ060	S402,412..5F	10/2015 - 07/2020	1
33111 - CASE, MANUAL TRANSMISSION
33111-BZ020	S402..5F	01/2008 - 07/2020	1
33111A - PLUG, MANUAL TRANSMISSION CASE
9004A-33012	S402..5F	01/2008 - 06/2011	1
9004A-33016	S402..5F	06/2011 - 07/2020	1
33111C - PLUG(FOR TRANSMISSION CASE)
9004A-34009	S402..5F	01/2008 - 08/2008	1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
9004A-31015	S402..5F	01/2008 - 07/2020	1
33111X - GASKET, TRANSMISSION CASE PLUG
9004A-43007	S402..5F	01/2008 - 08/2008	1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
9004A-31013	S402..5F	01/2008 - 07/2020	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-BZ010	S402..5F	01/2008 - 07/2020	1
33449B - MAGNET, TRANSMISSION
33449-BZ060	S402..5F	01/2016 - 07/2020	1
33449-BZ010	S402..5F	01/2008 - 12/2015	1
Common parts
84248-BZ080
90041-16456
90041-19475
90041-19968
90041-81030
9004A-11227
9004A-11228
9004A-11231
9004A-11232
9004A-11268
9004A-11276
9004A-11289
9004A-25032
9004A-43003
90179-08017
91611-60832
91611-60840
91611-60860
91612-61055
Linked diagrams
8202

S402U-TMRFJD (2008)

(0801-2007)S402..5F
