S402U-TMDFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )

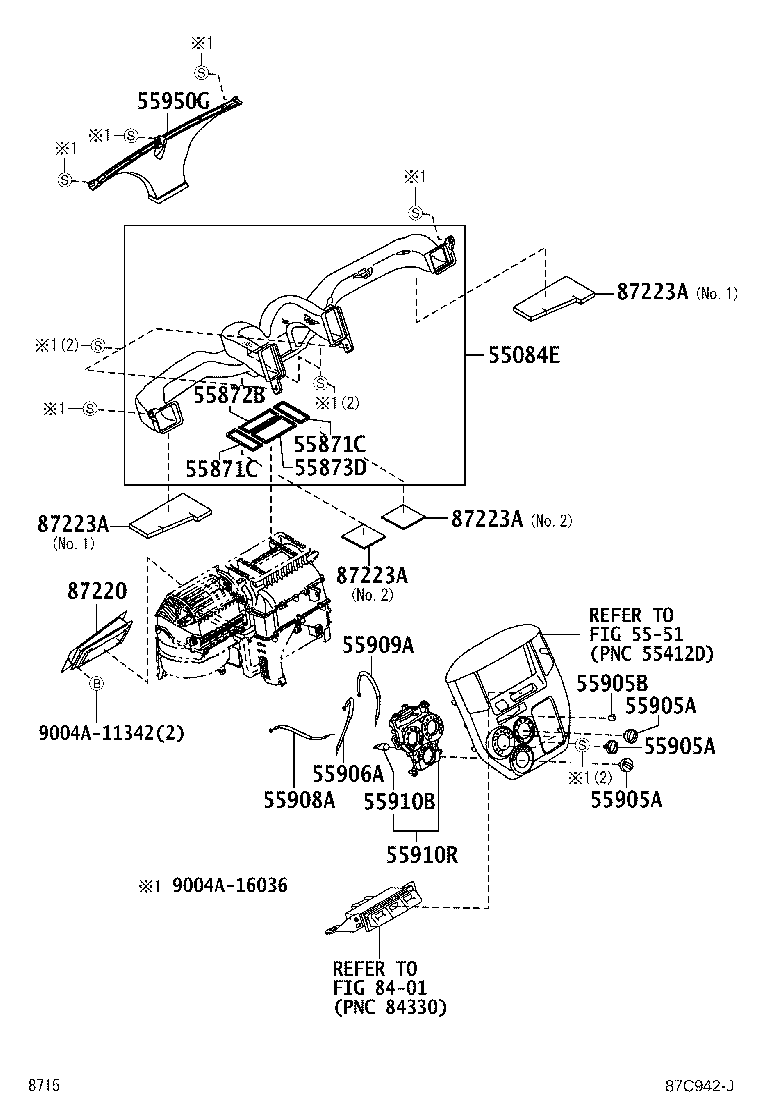

Click highlighted areas on diagram

diagram 55084E 5551 55871C 55871C 55872B 55873D 55905A 55905A 55905A 55905B 55906A 55908A 55909A 55910B 55910R 55950G 8401 87220 87223A 87223A 87223A 87223A 9004A11342 9004A16036
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-BZ010

S402,412

 1
55084-BZ040

S402,412

 1
55871C - SEAL, AIR DUCT
55871-BZ030

S402,412

 2
55871C - SEAL, AIR DUCT
55871-BZ030

S402,412

 2
55872B - SEAL, AIR DUCT,NO.2
55872-BZ020

S402,412

 1
55873D - SEAL, AIR DUCT, CENTER
55873-BZ060

S402,412

 1
55905A - KNOB, HEATER CONTROL
55905-BZ140

S402,412

 3
55905A - KNOB, HEATER CONTROL
55905-BZ140

S402,412

 3
55905A - KNOB, HEATER CONTROL
55905-BZ140

S402,412

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-BZ150

S402,412

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-BZ080

S402,412

ﾓｰﾄﾞ ﾄﾞｱ用

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-BZ080

S402,412

ｴｱ ｲﾝﾚｯﾄ ﾄﾞｱ用

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-BZ030

S402,412

ｴｱ ﾐｯｸｽ ﾄﾞｱ用

 1
55910B - BULB, HEATER CONTROL
81936-BZ020

S402,412

 1
55910R - CONTROL ASSY, HEATER
55910-BZ171

S402,412

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-BZ080

S402,412

 1
87220 - DUCT ASSY, AIR
87220-BZ240

S402,412

 1
87223A - PAD, AIR DUCT
87223-BZ160

S402,412

NO.1

 2
87223-BZ040

S402,412

NO.1

 2
87223-BZ090

S402,412

NO.2

 2
87223A - PAD, AIR DUCT
87223-BZ160

S402,412

NO.1

 2
87223-BZ040

S402,412

NO.1

 2
87223-BZ090

S402,412

NO.2

 2
87223A - PAD, AIR DUCT
87223-BZ160

S402,412

NO.1

 2
87223-BZ040

S402,412

NO.1

 2
87223-BZ090

S402,412

NO.2

 2
87223A - PAD, AIR DUCT
87223-BZ160

S402,412

NO.1

 2
87223-BZ040

S402,412

NO.1

 2
87223-BZ090

S402,412

NO.2

 2
Common parts
9004A-11342
9004A-16036
