S402U-TMDFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)

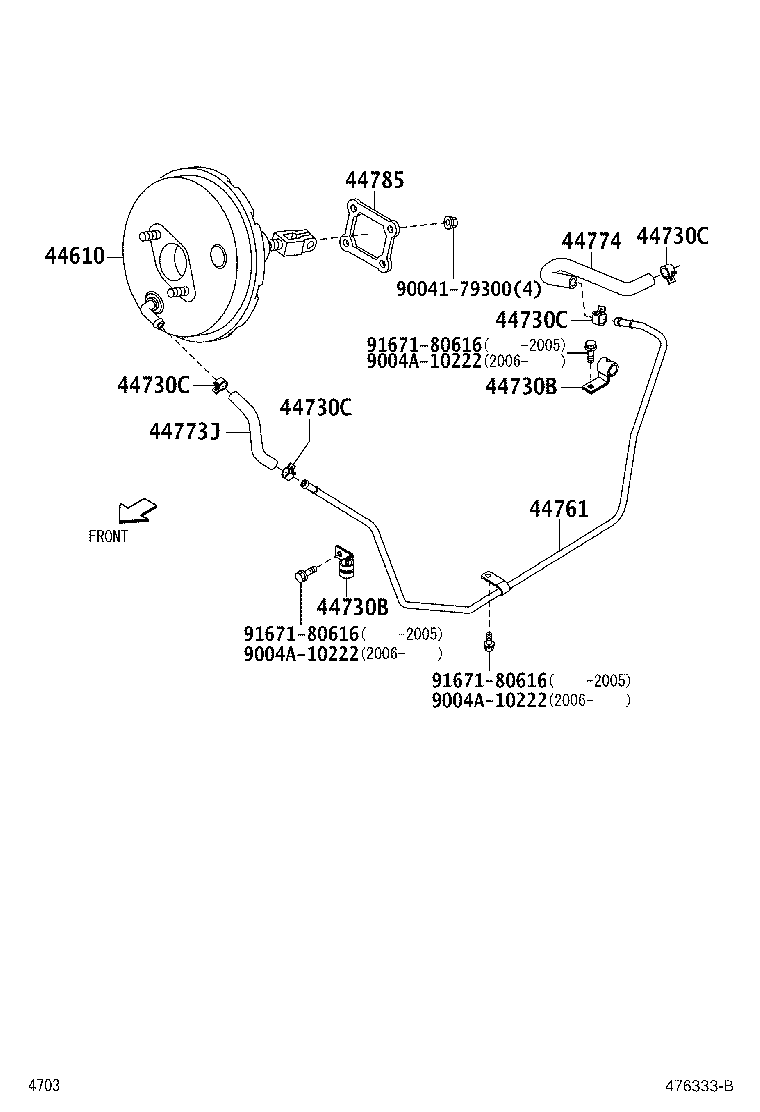

Click highlighted areas on diagram

diagram 44610 44730B 44730B 44730C 44730C 44730C 44730C 44761 44773J 44774 44785 9004179300 9004A10222 9004A10222 9004A10222 9167180616 9167180616 9167180616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-BZ160

S402,412

 1
44730B - CLAMP, VACUUM HOSE
90044-62270

S402,412

 2
44730B - CLAMP, VACUUM HOSE
90044-62270

S402,412

 2
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S402,412

 4
90044-67399

S402,412

 4
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S402,412

 4
90044-67399

S402,412

 4
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S402,412

 4
90044-67399

S402,412

 4
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S402,412

 4
90044-67399

S402,412

 4
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-BZ030

S402,412

 1
44773J - HOSE, VACUUM, NO.3
44750-B5060

S402,412

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-B5050

S402,412

 1
44785 - GASKET, BRAKE BOOSTER
47275-BZ010

S402,412

 1
Common parts
90041-79300
9004A-10222
91671-80616
