S402U-TMDFJD (2008)
Toyota Lite/Townace
Production
Jan 2008
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2007)

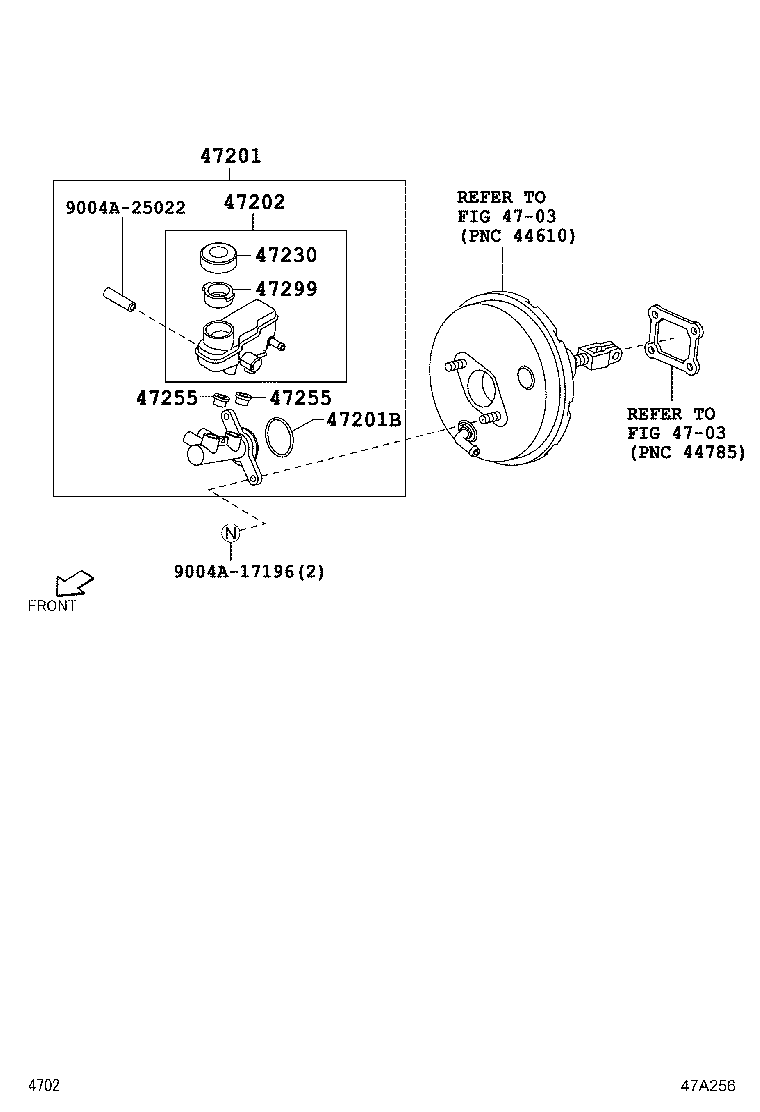

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-BZ270 |
S402,412..5F |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 9004A-30040 |
S402,412 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-BZ140 |
S402,412..5F |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-BZ080 |
S402,412 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-BZ070 |
S402 |
2 | ||
| 47255-BZ071 |
S402,412 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-BZ070 |
S402 |
2 | ||
| 47255-BZ071 |
S402,412 |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-BZ070 |
S402,412 |
1 | ||
| Common parts | ||||
| 9004A-17196 | ||||
| 9004A-25022 | ||||
| Linked diagrams | ||||
| 4703 | ||||
