S402U-TMDFJD (2008)
Toyota Lite/Townace

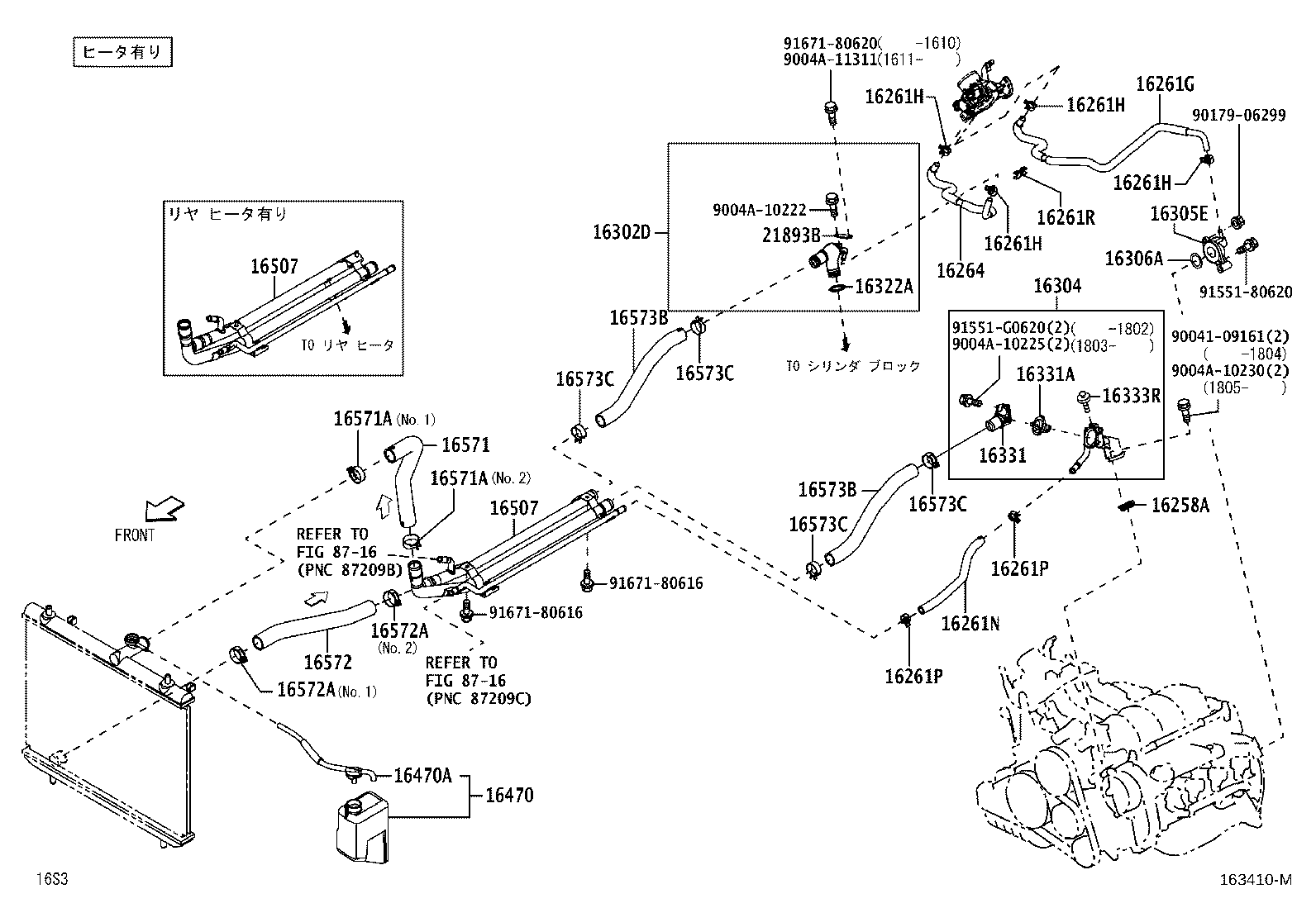

ILLUST NO. 2 OF 2(0801- )3SZVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-BZ010 |
3SZVE..S402,412 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ240 |
3SZVE..S402,412 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67301 |
3SZVE..S402,412 |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67301 |
3SZVE..S402,412 |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67301 |
3SZVE..S402,412 |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67301 |
3SZVE..S402,412 |
4 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-BZ250 |
3SZVE..S402,412 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-66009 |
3SZVE..S402,412 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-66009 |
3SZVE..S402,412 |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 9004A-46335 |
3SZVE..S402,412 |
1 | ||
| 90044-64402 |
3SZVE..S402,412 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-BZ090 |
3SZVE..S402,412 |
1 | ||
| 16302D - PIPE SUB-ASSY, WATER INLET | ||||
| 16302-BZ030 |
3SZVE..S402,412 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-BZ010 |
3SZVE..S402 |
1 | ||
| 16304-BZ012 |
3SZVE..S402,412 |
1 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-BZ010 |
3SZVE..S402,412 |
1 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 16258-BZ030 |
3SZVE..S402,412 |
1 | ||
| 96761-24053 |
3SZVE..S402,412 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 9004A-30038 |
3SZVE..S402,412 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-BZ010 |
3SZVE..S402,412 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90048-33091 |
3SZVE..S402,412 ｶﾞｽｹｯﾄ付き |
1 | ||
| 16333R - PLUG(FOR WATER OUTLET HOUSING) | ||||
| 47546-87202 |
3SZVE..S402,412 |
1 | ||
| 9004A-93005 |
3SZVE..S402,412 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-BZ160 |
3SZVE..S402,412 |
1 | ||
| 16470-BZ161 |
3SZVE..S402,412 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16503-BZ101 |
3SZVE..S402,412 |
1 | ||
| 16503-BZ100 |
3SZVE..S402,412 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ070 |
3SZVE..S402 |
1 | ||
| 16507-BZ120 |
3SZVE..S402 |
1 | ||
| 16507-BZ150 |
3SZVE..S402;3SZVE..S412..PIC |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ070 |
3SZVE..S402 |
1 | ||
| 16507-BZ120 |
3SZVE..S402 |
1 | ||
| 16507-BZ150 |
3SZVE..S402;3SZVE..S412..PIC |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-BZ160 |
3SZVE..S402,412 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
3SZVE..S402,412 NO.1 |
1 | ||
| 90044-67482 |
3SZVE..S402,412 NO.2 |
1 | ||
| 9004A-46395 |
3SZVE..S402,412 NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
3SZVE..S402,412 NO.1 |
1 | ||
| 90044-67482 |
3SZVE..S402,412 NO.2 |
1 | ||
| 9004A-46395 |
3SZVE..S402,412 NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-BZ170 |
3SZVE..S402,412 |
1 | ||
| 16571-BZ340 |
3SZVE..S402,412 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SZVE..S402,412 NO.1 |
1 | ||
| 90044-67482 |
3SZVE..S402,412 NO.2 |
1 | ||
| 9004A-46395 |
3SZVE..S402,412 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SZVE..S402,412 NO.1 |
1 | ||
| 90044-67482 |
3SZVE..S402,412 NO.2 |
1 | ||
| 9004A-46395 |
3SZVE..S402,412 NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16571-BZ180 |
3SZVE..S402,412 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16571-BZ180 |
3SZVE..S402,412 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 9004A-46383 |
3SZVE..S402,412 |
4 | ||
| 90044-67473 |
3SZVE..S402,412 |
4 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 9004A-46383 |
3SZVE..S402,412 |
4 | ||
| 90044-67473 |
3SZVE..S402,412 |
4 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 9004A-46383 |
3SZVE..S402,412 |
4 | ||
| 90044-67473 |
3SZVE..S402,412 |
4 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 9004A-46383 |
3SZVE..S402,412 |
4 | ||
| 90044-67473 |
3SZVE..S402,412 |
4 | ||
| 21893B - BRACKET | ||||
| 21893-BZ060 |
3SZVE..S402,412 |
1 | ||
| Common parts | ||||
| 90041-09161 | ||||
| 9004A-10222 | ||||
| 9004A-10225 | ||||
| 9004A-10230 | ||||
| 9004A-11311 | ||||
| 90179-06299 | ||||
| 91551-80620 | ||||
| 91551-G0620 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8716 | ||||

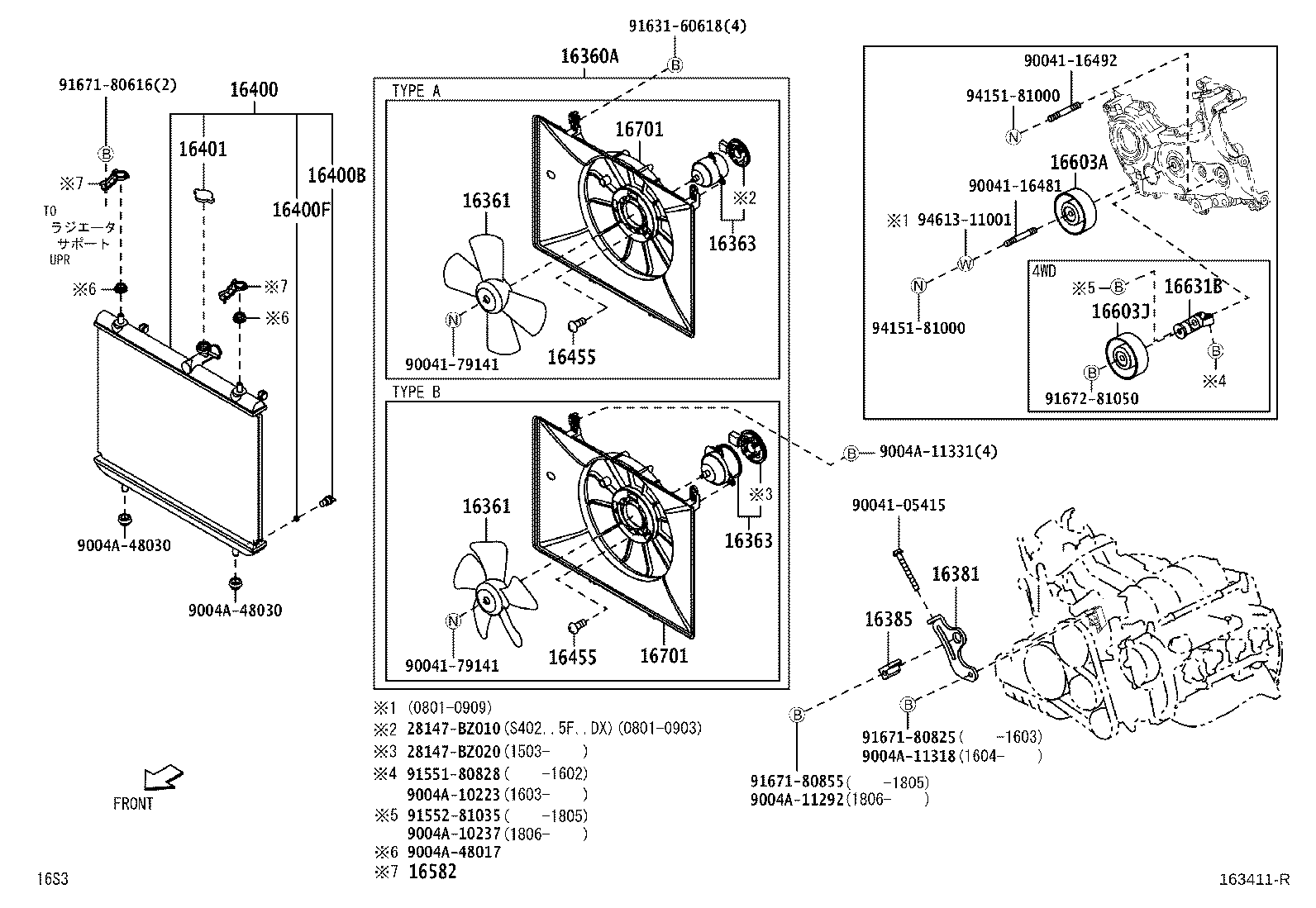

ILLUST NO. 1 OF 2(0801- )3SZVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ051 |
3SZVE..S402,412 |
1 | ||
| 16360-BZ210 |
3SZVE..S402,412 |
1 | ||
| 16361 - FAN | ||||
| 16361-B1090 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16361-BZ090 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16361-BZ030 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
1 | ||
| 16361 - FAN | ||||
| 16361-B1090 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16361-BZ090 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16361-BZ030 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ080 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
1 | ||
| 16363-B1080 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16363-BZ100 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ080 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
1 | ||
| 16363-B1080 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16363-BZ100 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-BZ070 |
3SZVE..S402,412 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-BZ030 |
3SZVE..S402,412 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-BZ321 |
3SZVE..S402,412..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
3SZVE..S402,412 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
3SZVE..S402,412 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-BZ040 |
3SZVE..S402,412 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16672-87201 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
3 | ||
| 90099-04117 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
3 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16672-87201 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
3 | ||
| 90099-04117 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
3 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ060 |
3SZVE..S402,412 |
2 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-23022 |
3SZVE..S402 |
1 | ||
| 16603-B0010 |
3SZVE..S402,412 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-BZ050 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
1 | ||
| 16711-BZ050 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-BZ050 |
3SZVE..S402,412 ﾀｲﾌﾟ A |
1 | ||
| 16711-BZ050 |
3SZVE..S402,412 ﾀｲﾌﾟ B |
1 | ||
| Common parts | ||||
| 28147-BZ010 | ||||
| 28147-BZ020 | ||||
| 90041-05415 | ||||
| 90041-16481 | ||||
| 90041-16492 | ||||
| 90041-79141 | ||||
| 9004A-10223 | ||||
| 9004A-10237 | ||||
| 9004A-11292 | ||||
| 9004A-11318 | ||||
| 9004A-11331 | ||||
| 9004A-48017 | ||||
| 9004A-48030 | ||||
| 91551-80828 | ||||
| 91552-81035 | ||||
| 91631-60618 | ||||
| 91671-80616 | ||||
| 91671-80825 | ||||
| 91671-80855 | ||||
| 91672-81050 | ||||
| 94151-81000 | ||||
| 94613-11001 | ||||
