S402M-ZQRFJD (2008)
Toyota Lite/Townace

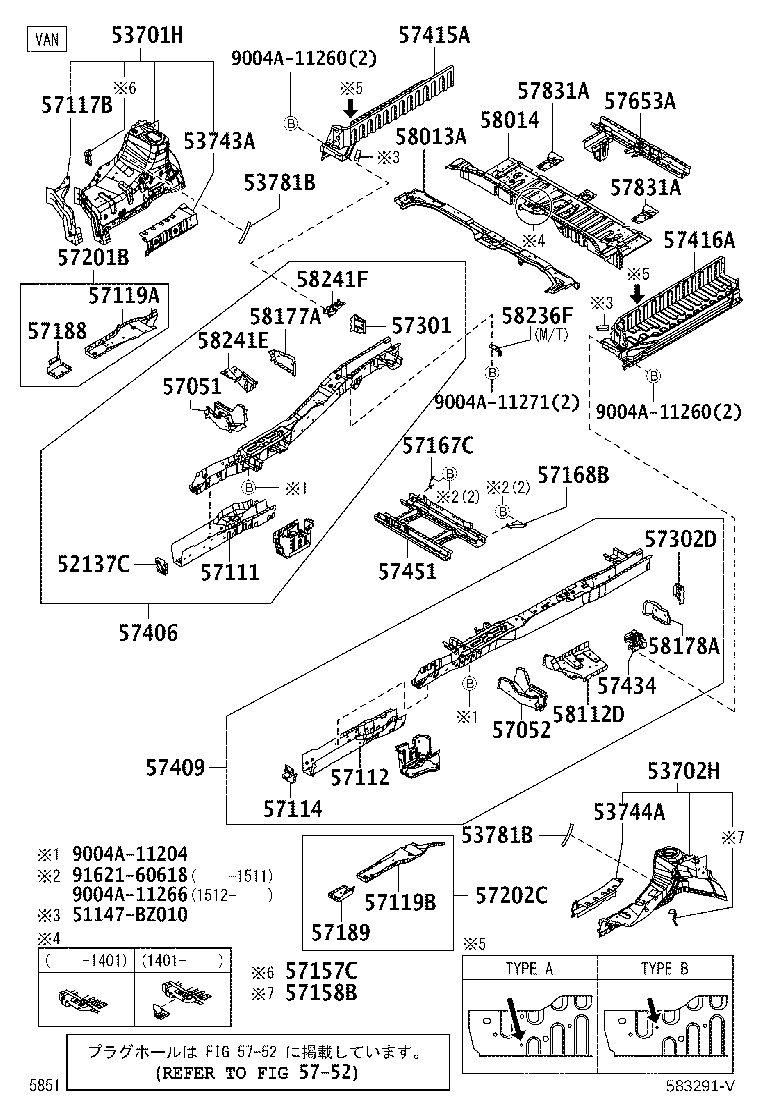

(0801- )S402,412..VAN
MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52137C - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52141-BZ020 |
S402,412 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-BZ250 |
S402,412 |
1 | ||
| 53702H - APRON SUB-ASSY, FENDER, LH | ||||
| 53702-BZ270 |
S402,412 |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-BZ031 |
S402,412 |
1 | ||
| 53743-BZ030 |
S402,412 |
1 | ||
| 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-BZ020 |
S402,412 |
1 | ||
| 53744-BZ021 |
S402,412 |
1 | ||
| 53781B - SEAL, FRONT FENDER APRON, LOWER | ||||
| 53781-BZ010 |
S402,412 |
2 | ||
| 53781B - SEAL, FRONT FENDER APRON, LOWER | ||||
| 53781-BZ010 |
S402,412 |
2 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-BZ090 |
S402,412 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-BZ080 |
S402,412 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-BZ160 |
S402,412 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-BZ130 |
S402 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57202-BZ020 |
S402,412 |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 52021-BZ080 |
S402,412 |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-BZ040 |
S402,412 |
1 | ||
| 57119B - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-BZ030 |
S402,412 |
1 | ||
| 57157C - BRACKET, FLEXIBLE HOSE, FRONT RH | ||||
| 57157-BZ040 |
S402,412 |
1 | ||
| 57158B - BRACKET, FLEXIBLE HOSE, FRONT LH | ||||
| 57158-BZ050 |
S402,412 |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-BZ080 |
S402,412 |
1 | ||
| 57167-BZ060 |
S402 |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-BZ060 |
S402,412 |
1 | ||
| 57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-BZ010 |
S402,412 |
1 | ||
| 57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH | ||||
| 57189-BZ020 |
S402,412 |
1 | ||
| 57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57203-BZ010 |
S402,412 |
1 | ||
| 57202C - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57204-BZ020 |
S402,412 |
1 | ||
| 57301 - OUTRIGGER SUB-ASSY, NO.1 RH | ||||
| 57351-BZ010 |
S402,412..VAN |
1 | ||
| 57302D - OUTRIGGER SUB-ASSY, NO.1 LH | ||||
| 57352-BZ010 |
S402,412..VAN |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-BZ050 |
S402,412..VAN |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-BZ030 |
S402..VAN |
1 | ||
| 57415A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-BZ020 |
S402,412..VAN ﾀｲﾌﾟ A |
1 | ||
| 57047-BZ021 |
S402,412..VAN ﾀｲﾌﾟ B |
1 | ||
| 57416A - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-BZ020 |
S402,412..VAN ﾀｲﾌﾟ A |
1 | ||
| 57048-BZ021 |
S402,412..VAN ﾀｲﾌﾟ B |
1 | ||
| 57434 - REINFORCEMENT, STEP PANEL, LOWER LH | ||||
| 57434-BZ010 |
S402,412..VAN |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-BZ020 |
S402 |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57606-BZ070 |
S402..VAN |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-BZ100 |
S402,412..VAN |
2 | ||
| 57831-BZ030 |
S402,412..VAN |
2 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-BZ100 |
S402,412..VAN |
2 | ||
| 57831-BZ030 |
S402,412..VAN |
2 | ||
| 58013A - PANEL SUB-ASSY, FRONT FLOOR, REAR UPPER | ||||
| 58013-BZ010 |
S402,412..VAN |
1 | ||
| 58013-BZ031 |
S402,412..VAN |
1 | ||
| 58013-BZ030 |
S402,412..VAN |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-BZ010 |
S402,412..VAN |
1 | ||
| 58014-BZ012 |
S402,412..VAN |
1 | ||
| 58014-BZ011 |
S402,412..VAN |
1 | ||
| 58112D - PANEL, FRONT FLOOR, FRONT NO.2 | ||||
| 57381-BZ010 |
S402,412 |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-BZ010 |
S402,412..VAN |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-BZ010 |
S402,412..VAN |
1 | ||
| 58241E - PANEL, FLOOR SIDE, FRONT RH | ||||
| 57371-BZ010 |
S402,412 |
1 | ||
| 58241F - PANEL, FLOOR SIDE, RH | ||||
| 57433-BZ010 |
S402,412..VAN |
1 | ||
| Common parts | ||||
| 51147-BZ010 | ||||
| 9004A-11204 | ||||
| 9004A-11260 | ||||
| 9004A-11266 | ||||
| 9004A-11271 | ||||
| 91621-60618 | ||||
| Linked diagrams | ||||
| 5752 | ||||

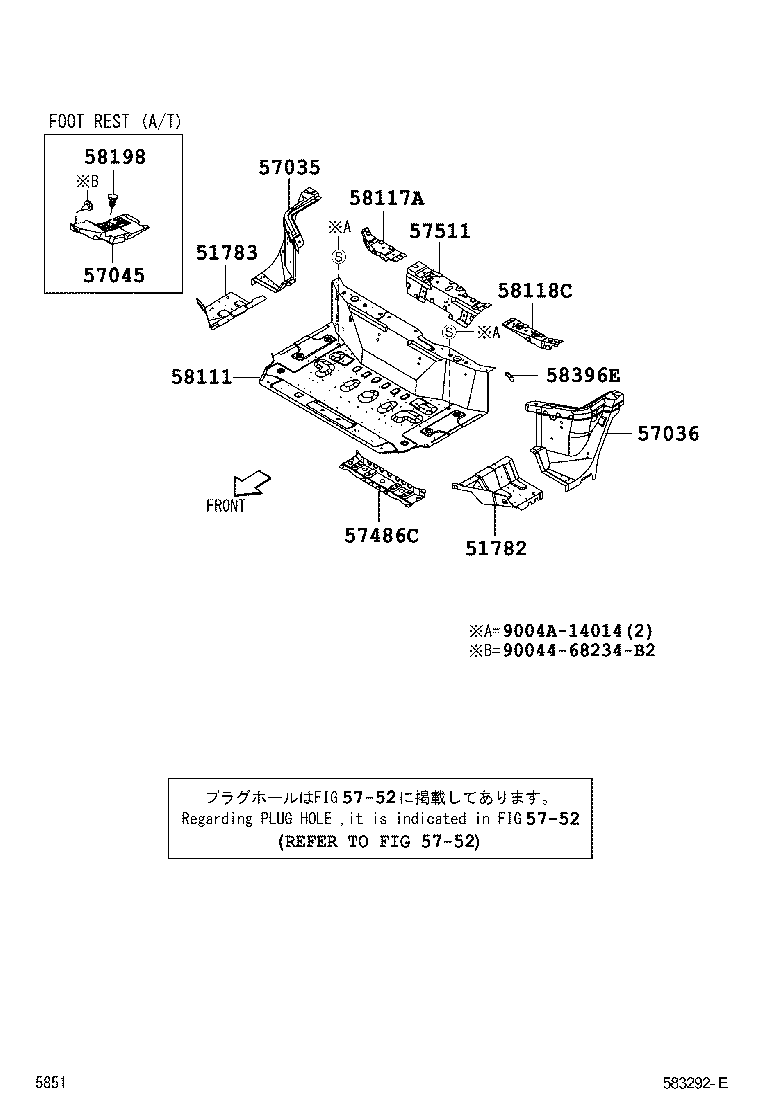

(0801- )S402,412
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51782 - PANEL, STEP, LH | ||||
| 51784-BZ020 |
S402,412 |
1 | ||
| 51783 - PANEL, STEP, FRONT RH | ||||
| 51783-BZ020 |
S402,412 |
1 | ||
| 57035 - PANEL SUB-ASSY, FRONT STEP, RH | ||||
| 57035-BZ020 |
S402,412 |
1 | ||
| 57036 - PANEL SUB-ASSY, FRONT STEP, LH | ||||
| 57036-BZ020 |
S402,412 |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-BZ020 |
S402,412..4FC |
1 | ||
| 57486C - REINFORCEMENT, FRONT FLOOR CROSS, NO.2 | ||||
| 57165-BZ010 |
S402,412 |
1 | ||
| 57165-BZ011 |
S402,412 |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57509-BZ010 |
S402,412 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-BZ200 |
S402,412 |
1 | ||
| 58111-BZ201 |
S402,412 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-BZ010 |
S402,412 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-BZ030 |
S402,412 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 90044-68044N1 |
S402,412..4FC BLACK |
1 | ||
| 58396E - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-BZ040 |
S402,412 |
1 | ||
| Common parts | ||||
| 90044-68234B2 | ||||
| 9004A-14014 | ||||
| Linked diagrams | ||||
| 5752 | ||||
