S402M-ZQDFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )

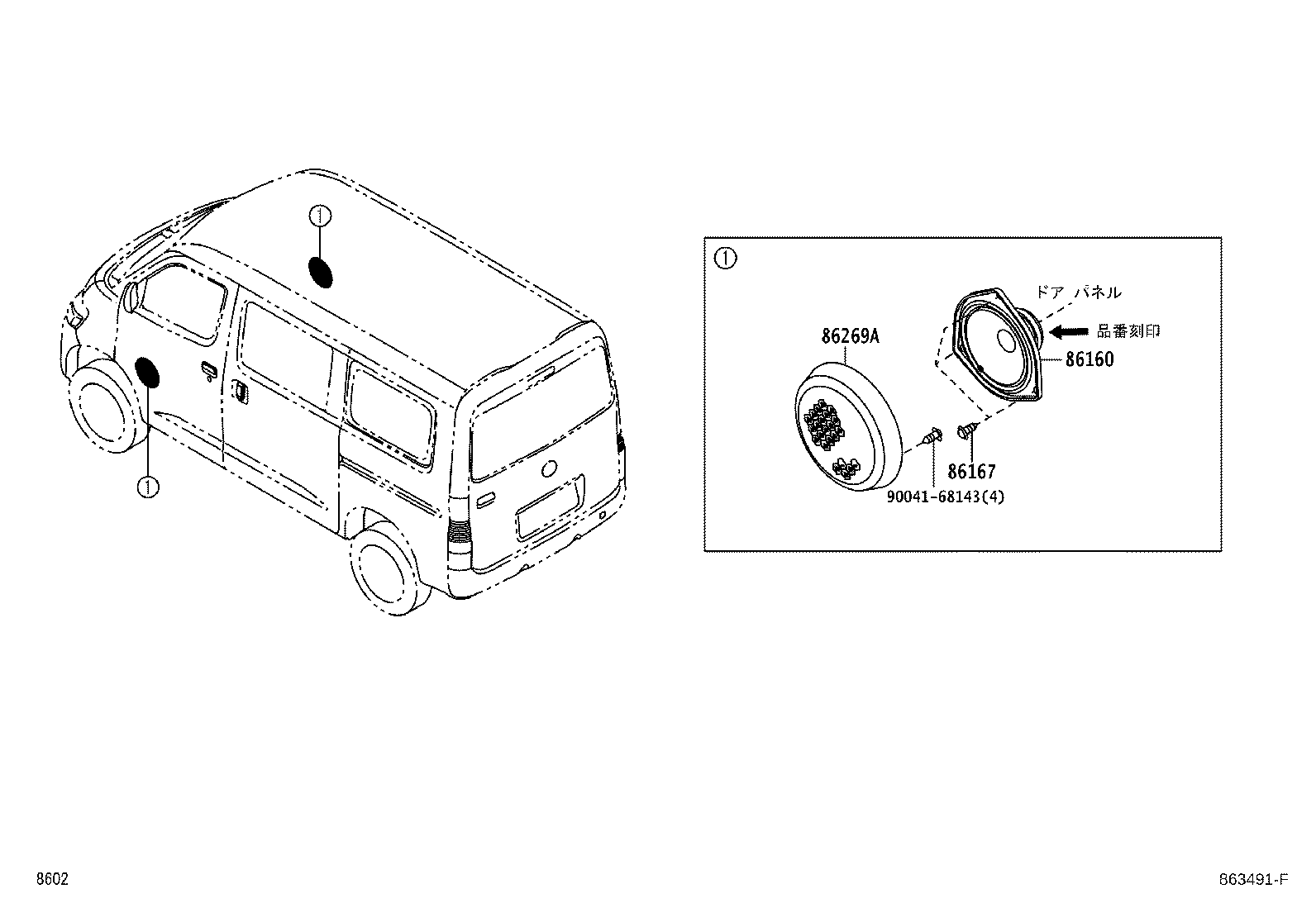

Click highlighted areas on diagram

diagram 86160 86167 86269A 9004168143
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-BZ120

S402,412

品番刻印=86160−BZ120

 2
86160-BZ190

S402,412

品番刻印=86160−BZ190

 2
86160-BZ180

S402,412

品番刻印=86160−BZ180

 2
86160-BZ240

S402,412

品番刻印=86160−BZ240

 2
86167 - SCREW, SPEAKER
9004A-16057

S402,412

長さ=12

 6
86269A - GRILLE, SPEAKER
86269-BZ010B0

S402,412

DK.GRAY,TRIM1#

 2
Common parts
90041-68143
