S402M-ZQDFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )

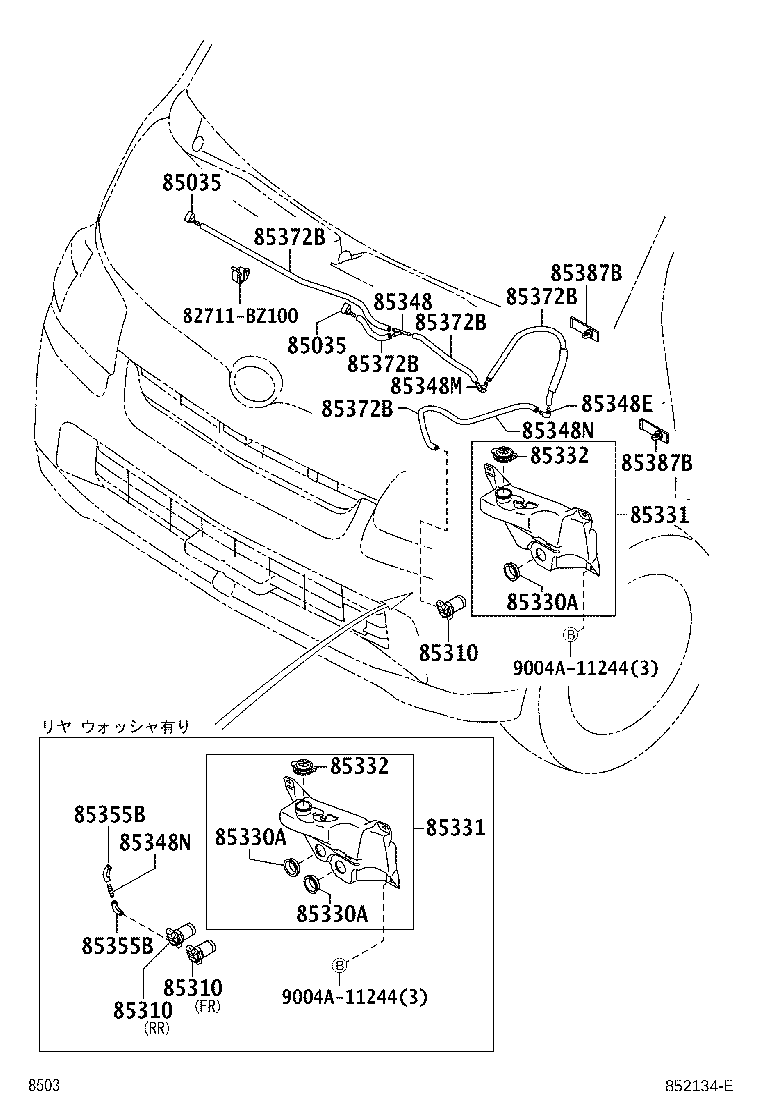

Click highlighted areas on diagram

diagram 82711BZ100 85035 85035 85310 85310 85310 85330A 85330A 85330A 85331 85331 85332 85332 85348 85348E 85348M 85348N 85348N 85355B 85355B 85372B 85372B 85372B 85372B 85372B 85387B 85387B 9004A11244 9004A11244
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-BZ080

S402,412

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-BZ080

S402,412

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-BZ010

S402..GL;S412..VAN

ﾘﾔ

 1
85330-BZ020

S402..GL;S412..VAN

ﾌﾛﾝﾄ

 1
85330-BZ060

S402..GL;S412..VAN

ﾌﾛﾝﾄ

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-BZ010

S402..GL;S412..VAN

ﾘﾔ

 1
85330-BZ020

S402..GL;S412..VAN

ﾌﾛﾝﾄ

 1
85330-BZ060

S402..GL;S412..VAN

ﾌﾛﾝﾄ

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-BZ010

S402..GL;S412..VAN

ﾘﾔ

 1
85330-BZ020

S402..GL;S412..VAN

ﾌﾛﾝﾄ

 1
85330-BZ060

S402..GL;S412..VAN

ﾌﾛﾝﾄ

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

S402..GL;S412..VAN

 2
85373-97202

S402..GL;S412..VAN

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

S402..GL;S412..VAN

 2
85373-97202

S402..GL;S412..VAN

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

S402..GL;S412..VAN

 2
85373-97202

S402..GL;S412..VAN

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-BZ090

S402..GL;S412..VAN

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-BZ090

S402..GL;S412..VAN

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-87204

S402,412

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-87204

S402,412

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-87201

S402,412

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85349-87602

S402,412

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85279-BZ010

S402,412

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-87201

S402..GL;S412..VAN

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-87201

S402..GL;S412..VAN

 1
85355B - JOINT, ELBOW NO.2
85355-87503

S402..GL;S412..VAN

 2
85355B - JOINT, ELBOW NO.2
85355-87503

S402..GL;S412..VAN

 2
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
9004B-44007

S402,412

 5
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
9004B-44007

S402,412

 5
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
9004B-44007

S402,412

 5
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
9004B-44007

S402,412

 5
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
9004B-44007

S402,412

 5
85387B - CLAMP, WASHER, NO.3
82711-52090

S402,412

 2
85387B - CLAMP, WASHER, NO.3
82711-52090

S402,412

 2
Common parts
82711-BZ100
9004A-11244
