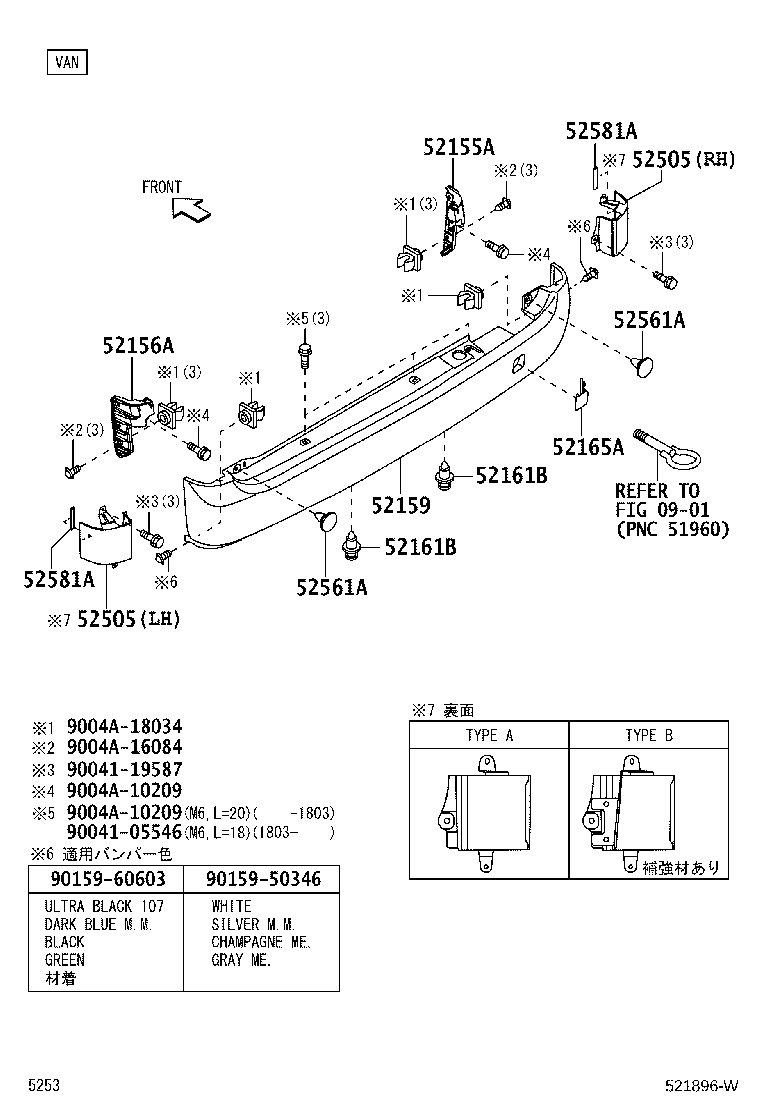

Toyota Lite/townace S402M REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-BZ060	S402,412..VAN	01/2008 - 07/2020	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-BZ070	S402,412..VAN	01/2008 - 07/2020	1
52159 - COVER, REAR BUMPER
52159-BZ350B0	S402..GL SILVER M.M.,1E7	01/2008 - 07/2008	1
52159-BZ350A0	S402..GL WHITE,W09	01/2008 - 07/2008	1
52159-BZ570A0	S402..GL WHITE,W09	08/2008 - 03/2018	1
52159-BZ560A0	S402..GL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ有り(寒冷地仕様),WHITE,W09	08/2008 - 03/2018	1
52159-BZ340A0	S402..GL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ有り(寒冷地仕様),WHITE,W09	01/2008 - 07/2008	1
52159-BZ570B0	S402..GL SILVER M.M.,1E7	08/2008 - 03/2018	1
52159-BZ340B0	S402..GL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ有り(寒冷地仕様),SILVER M.M.,1E7	01/2008 - 07/2008	1
52159-BZ561B0	S402..GL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ有り(寒冷地仕様),SILVER M.M.,1E7	03/2018 - 07/2020	1
52159-BZ571A0	S402..GL WHITE,W09	03/2018 - 07/2020	1
52159-BZ560B0	S402..GL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ有り(寒冷地仕様),SILVER M.M.,1E7	08/2008 - 03/2018	1
52159-BZ571B0	S402..GL SILVER M.M.,1E7	03/2018 - 07/2020	1
52159-BZ561A0	S402..GL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ有り(寒冷地仕様),WHITE,W09	03/2018 - 07/2020	1
52161B - PIECE, REAR BUMPER
9004A-46352	S402..GL;S412..VAN	08/2015 - 09/2019	2
90044-68320	S402,412..VAN	01/2008 - 02/2013	2
9004A-46323	S402,412..VAN	09/2019 - 07/2020	2
9004A-46323	S402..GL;S412..VAN	03/2013 - 08/2015	2
52161B - PIECE, REAR BUMPER
9004A-46352	S402..GL;S412..VAN	08/2015 - 09/2019	2
90044-68320	S402,412..VAN	01/2008 - 02/2013	2
9004A-46323	S402,412..VAN	09/2019 - 07/2020	2
9004A-46323	S402..GL;S412..VAN	03/2013 - 08/2015	2
52165A - COVER, REAR BUMPER, UPR RH
52165-BZ180A0	S402,412..GL WHITE,W09	08/2008 - 07/2020	1
52165-BZ180B0	S402,412..GL SILVER M.M.,1E7	08/2008 - 07/2020	1
52165-BZ090B0	S402..GL SILVER M.M.,1E7	01/2008 - 07/2008	1
52165-BZ040	S402..GL	01/2008 - 07/2008	1
52165-BZ090A0	S402..GL WHITE,W09	01/2008 - 07/2008	1
52505 - FILLER SUB-ASSY, REAR BUMPER
52506-BZ020	S402,412..VAN ﾀｲﾌﾟ B,右側	10/2014 - 07/2020	1
52566-BZ010	S402,412..VAN ﾀｲﾌﾟ A,左側	01/2008 - 09/2014	1
52507-BZ020	S402,412..VAN ﾀｲﾌﾟ B,左側	10/2014 - 07/2020	1
52565-BZ010	S402,412..VAN ﾀｲﾌﾟ A,右側	01/2008 - 09/2014	1
52505 - FILLER SUB-ASSY, REAR BUMPER
52506-BZ020	S402,412..VAN ﾀｲﾌﾟ B,右側	10/2014 - 07/2020	1
52566-BZ010	S402,412..VAN ﾀｲﾌﾟ A,左側	01/2008 - 09/2014	1
52507-BZ020	S402,412..VAN ﾀｲﾌﾟ B,左側	10/2014 - 07/2020	1
52565-BZ010	S402,412..VAN ﾀｲﾌﾟ A,右側	01/2008 - 09/2014	1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67204C0	S402..VAN BLACK	01/2008 - 06/2008	2
9004A-46334	S402,412..VAN	06/2017 - 07/2020	2
90044-67567	S402,412..VAN	06/2008 - 05/2017	2
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67204C0	S402..VAN BLACK	01/2008 - 06/2008	2
9004A-46334	S402,412..VAN	06/2017 - 07/2020	2
90044-67567	S402,412..VAN	06/2008 - 05/2017	2
52581A - PROTECTOR, REAR BUMPER FILLER
52581-BZ080	S402..VAN	01/2008 - 02/2008	2
52581-BZ110	S402,412..VAN	03/2008 - 07/2020	2
52581A - PROTECTOR, REAR BUMPER FILLER
52581-BZ080	S402..VAN	01/2008 - 02/2008	2
52581-BZ110	S402,412..VAN	03/2008 - 07/2020	2
Common parts
90041-05546
90041-19587
9004A-10209
9004A-16084
9004A-18034
90159-50346
90159-60603
Linked diagrams
0901

S402M-ZQDFJD (2008)

(0801-2007)VAN
