S402M-ZQDFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801-2007)

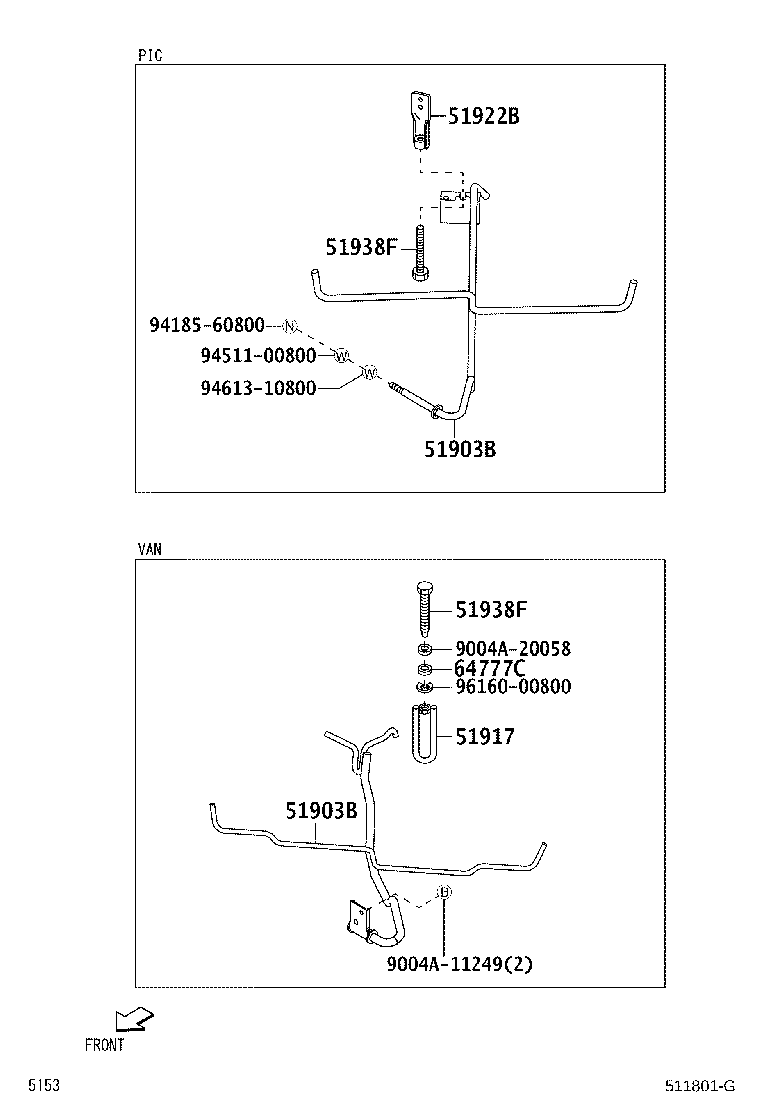

Click highlighted areas on diagram

diagram 51903B 51903B 51917 51922B 51938F 51938F 64777C 9004A11249 9004A20058 9418560800 9451100800 9461310800 9616000800
Part # Description Qty Price
51903B - CARRIER SUB-ASSY, SPARE WHEEL
51903-BZ070

S402,412..VAN

 1
51903B - CARRIER SUB-ASSY, SPARE WHEEL
51903-BZ070

S402,412..VAN

 1
51917 - HOOK, SPARE WHEEL CARRIER
51909-BZ031

S402,412..VAN

 1
51909-BZ030

S402..VAN

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
9004A-10154

S402,412..VAN

 1
90041-01685

S402,412..VAN

 1
90041-01707

S402..VAN

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
9004A-10154

S402,412..VAN

 1
90041-01685

S402,412..VAN

 1
90041-01707

S402..VAN

 1
64777C - CUSHION, SPARE WHEEL
64777-BZ010

S402,412..VAN

 1
Common parts
9004A-11249
9004A-20058
94185-60800
94511-00800
94613-10800
96160-00800
