S402M-ZQDFJD (2008)
Toyota Lite/Townace
Production
Jan 2008
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2007)

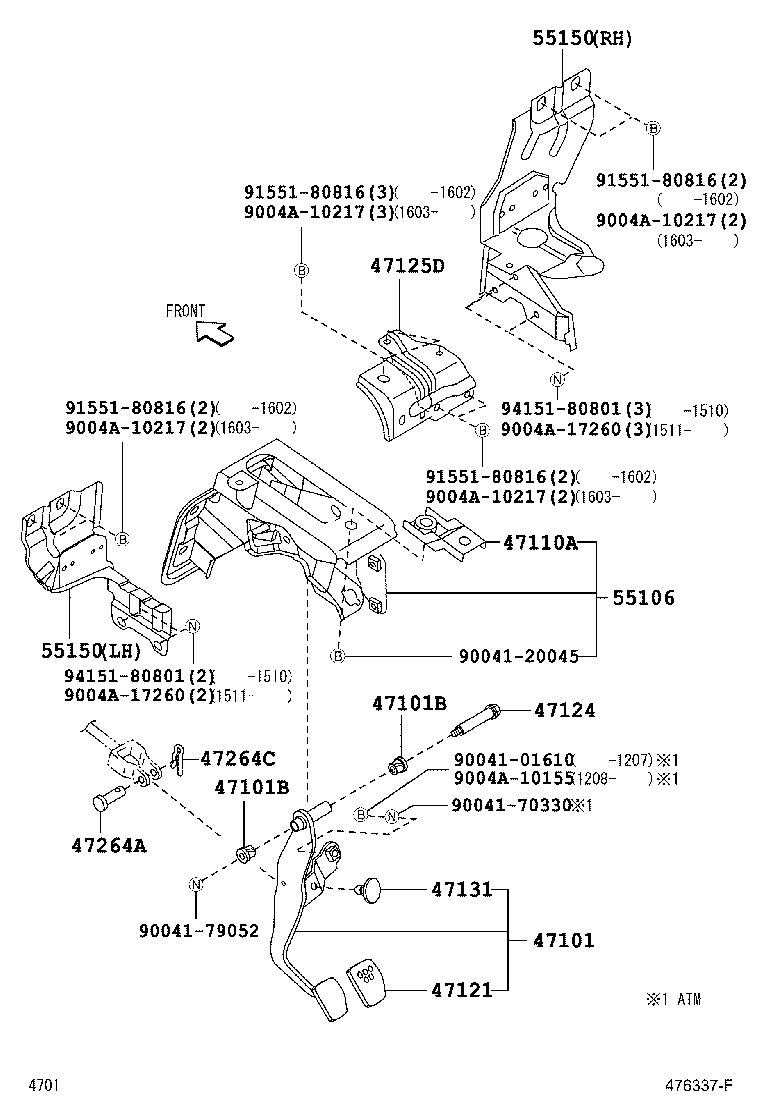

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-BZ170 |
S402,412 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
S402,412 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
S402,412 |
2 | ||
| 47110A - BRACKET ASSY, PEDAL | ||||
| 55150-BZ050 |
S402,412 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-BZ100 |
S402,412 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-BZ010 |
S402,412 |
1 | ||
| 47125D - STAY, BRAKE PEDAL BRACKET | ||||
| 55013-BZ010 |
S402,412 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 9004A-54029 |
S402,412 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90042-40075 |
S402,412 |
1 | ||
| 90042-40151 |
S402,412 |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68337 |
S402,412 |
1 | ||
| 90044-68076 |
S402,412 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-BZ231 |
S402,412..4FC |
1 | ||
| 55106-BZ230 |
S402,412..4FC |
1 | ||
| 55150 - BRACKET ASSY, PEDAL | ||||
| 55716-BZ010 |
S402,412 左側 |
1 | ||
| 55108-BZ010 |
S402,412 右側 |
1 | ||
| 55150 - BRACKET ASSY, PEDAL | ||||
| 55716-BZ010 |
S402,412 左側 |
1 | ||
| 55108-BZ010 |
S402,412 右側 |
1 | ||
| Common parts | ||||
| 90041-01610 | ||||
| 90041-20045 | ||||
| 90041-70330 | ||||
| 90041-79052 | ||||
| 9004A-10155 | ||||
| 9004A-10217 | ||||
| 9004A-17260 | ||||
| 91551-80816 | ||||
| 94151-80801 | ||||
