S402M-ZQDFJD (2008)
Toyota Lite/Townace
Production
Jan 2008
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2007) ; (2007- )

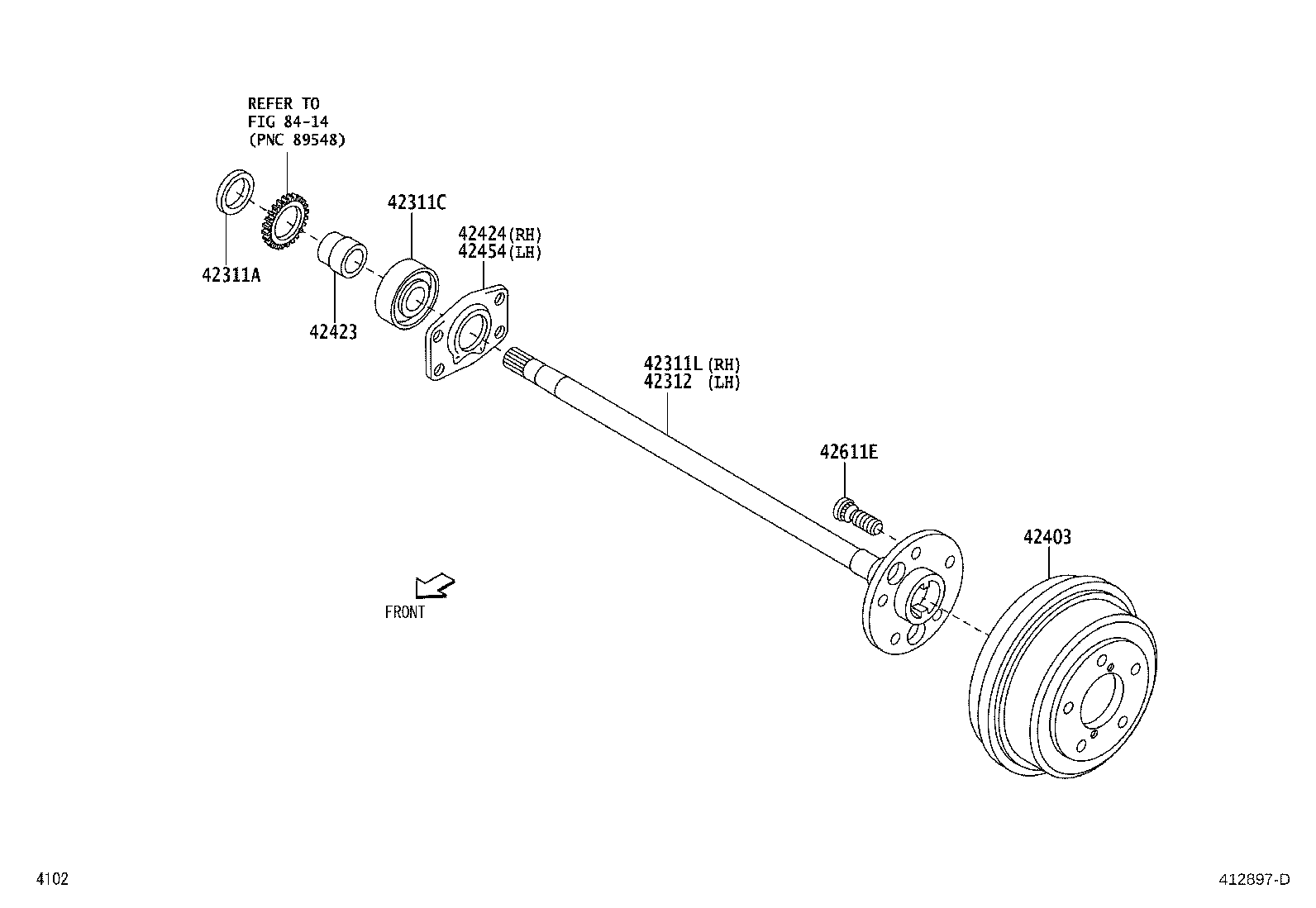

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 9004A-31041 |
S402,412 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 9004A-36043 |
S402,412 |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-BZ031 |
S402,412 |
1 | ||
| 42311-BZ030 |
S402,412 |
1 | ||
| 42311-BZ090 |
S402,412 |
1 | ||
| 42311-BZ032 |
S402,412 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-BZ020 |
S402,412 |
1 | ||
| 42312-BZ022 |
S402,412 |
1 | ||
| 42312-BZ021 |
S402,412 |
1 | ||
| 42312-BZ070 |
S402,412 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-BZ100 |
S402,412 |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-BZ100 |
S402,412 |
2 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-BZ070 |
S402,412 |
1 | ||
| 42424-BZ040 |
S402,412 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42424-BZ070 |
S402,412 |
1 | ||
| 42424-BZ040 |
S402,412 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90049-12055 |
S402,412 |
10 | ||
| Linked diagrams | ||||
| 8414 | ||||
