S402M-ZQDFJD (2008)
Toyota Lite/Townace
Production
Jan 2008
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

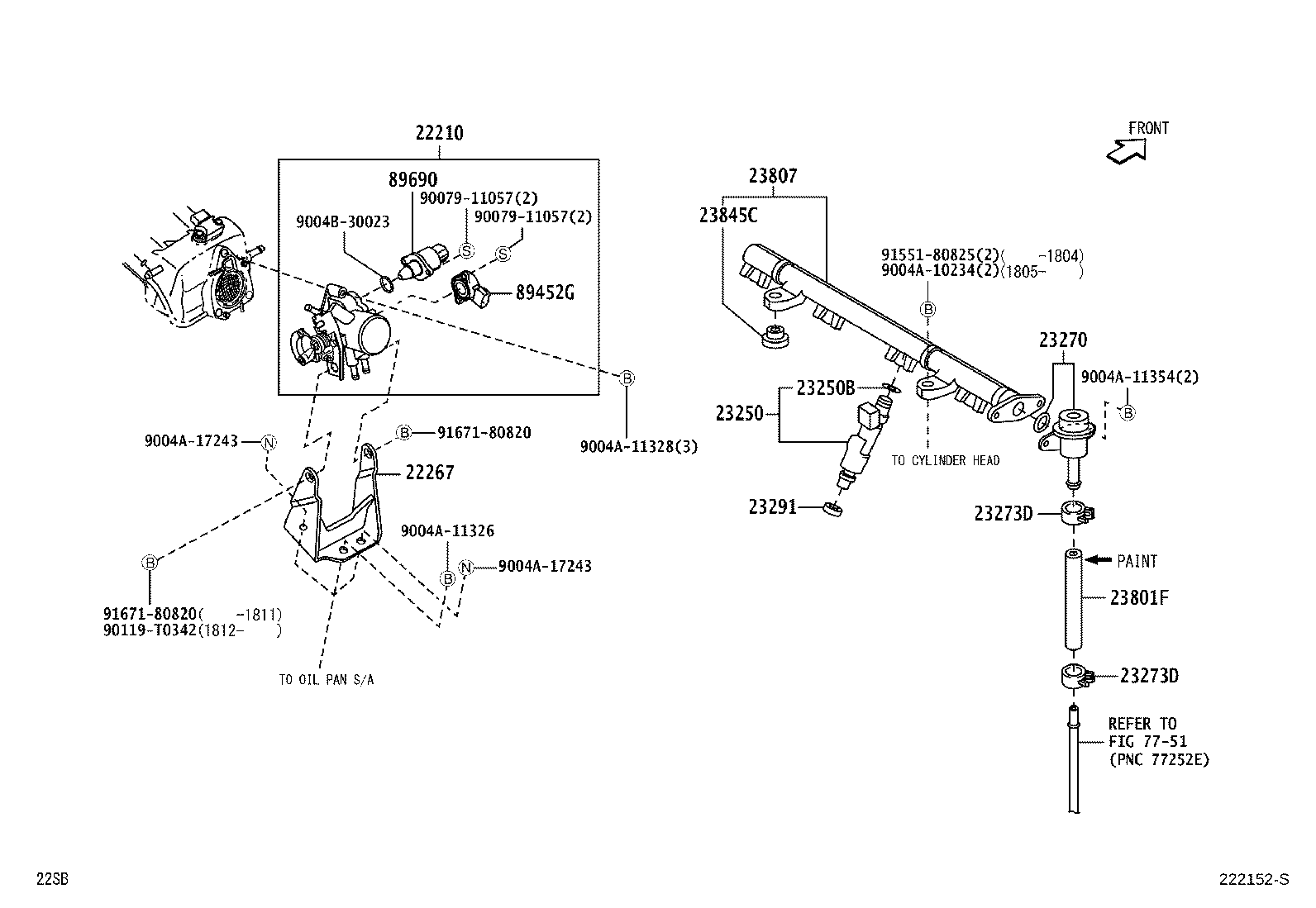

ILLUST NO. 1 OF 2(0801- )3SZVE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-BZ110 |
3SZVE..S402 |
1 | ||
| 22210-BZ111 |
3SZVE..S402,412 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-BZ060 |
3SZVE..S402,412 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-BZ010 |
3SZVE..S402,412 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90043-01136 |
3SZVE..S402,412 |
4 | ||
| 90043-01136 |
3SZVE..S402,412 日本調達部品 |
4 | ||
| 9004A-30055 |
3SZVE..S402,412 現地調達部品 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-97501 |
3SZVE..S402,412 |
1 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 9004A-46384 |
3SZVE..S402,412 |
2 | ||
| 90044-67234 |
3SZVE..S402,412 |
2 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 9004A-46384 |
3SZVE..S402,412 |
2 | ||
| 90044-67234 |
3SZVE..S402,412 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-BZ010 |
3SZVE..S402,412 |
4 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-B0030 |
3SZVE..S402,412 識別ﾍﾟｲﾝﾄ=白 |
1 | ||
| 23271-B0040 |
3SZVE..S402,412 識別ﾍﾟｲﾝﾄ=青 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-BZ030 |
3SZVE..S402,412 |
1 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-BZ010 |
3SZVE..S402,412 |
2 | ||
| 89452G - SENSOR, THROTTLE POSITION | ||||
| 89452-97401 |
S402,412 |
1 | ||
| 89690 - ACTUATOR ASSY, IDLE SPEED CONTROL | ||||
| 9004B-82002 |
S402,412 |
1 | ||
| Common parts | ||||
| 9004A-10234 | ||||
| 9004A-11326 | ||||
| 9004A-11328 | ||||
| 9004A-11354 | ||||
| 9004A-17243 | ||||
| 9004B-30023 | ||||
| 90079-11057 | ||||
| 90119-T0342 | ||||
| 91551-80825 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7751 | ||||

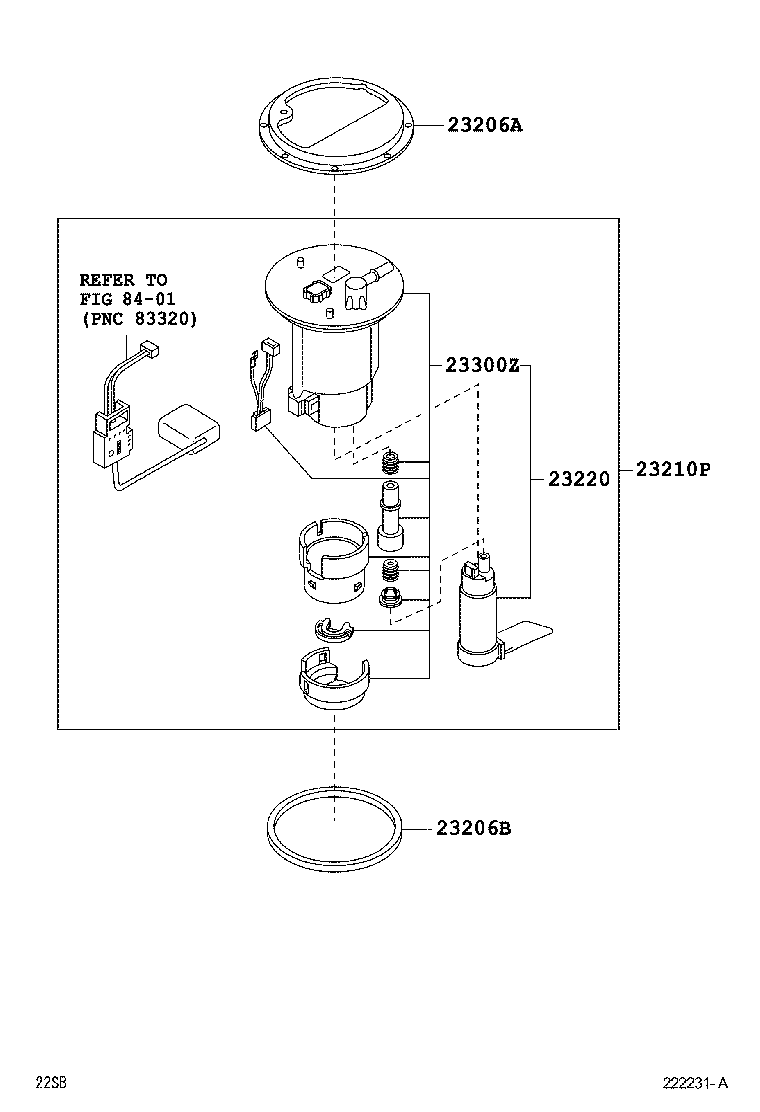

ILLUST NO. 2 OF 2(0801- )3SZVE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23265-BZ010 |
3SZVE..S402,412 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 23232-BZ010 |
3SZVE..S402,412 |
1 | ||
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-BZ110 |
3SZVE..S402 |
1 | ||
| 23210-BZ020 |
3SZVE..S402,412 |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23100-BZ030 |
3SZVE..S402,412 |
1 | ||
| 23100-BZ181 |
3SZVE..S402,412 |
1 | ||
| 23100-BZ180 |
3SZVE..S402,412 |
1 | ||
| 23100-BZ020 |
3SZVE..S402 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23390-BZ030 |
3SZVE..S402,412 |
1 | ||
| 23390-BZ031 |
3SZVE..S402,412 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
