S402M-ZMRFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )S402,412

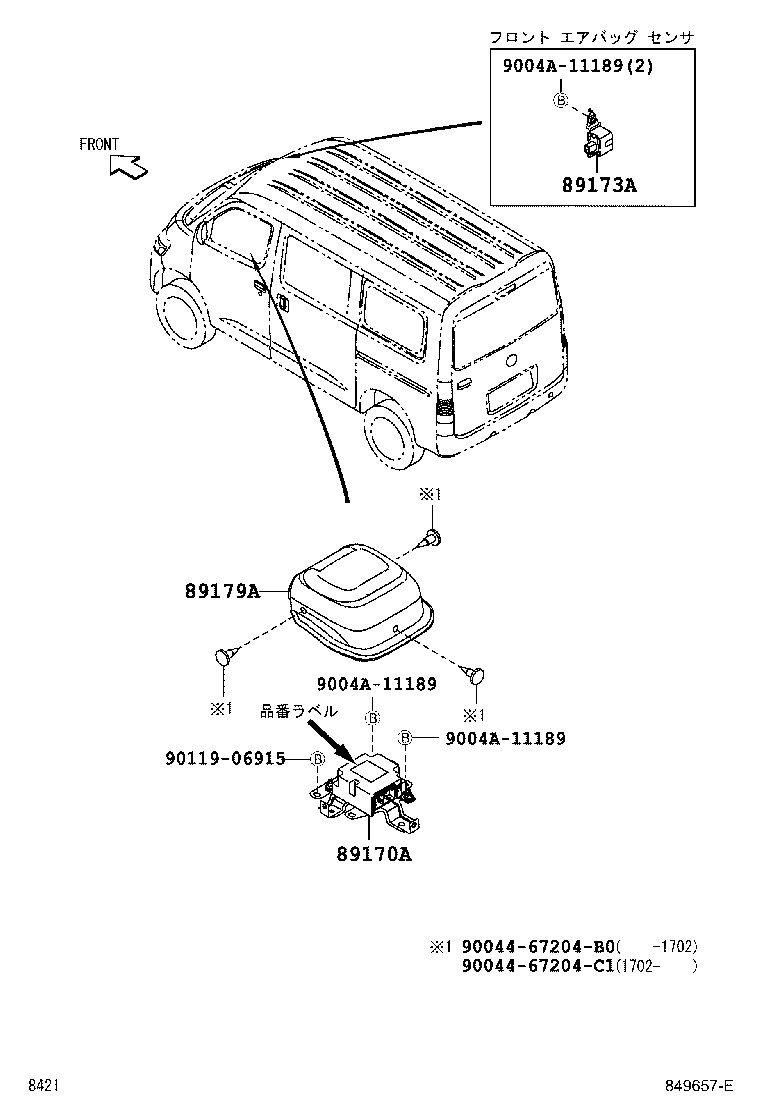

Click highlighted areas on diagram

diagram 89170A 89173A 89179A 9004467204B0 9004467204C1 9004A11189 9004A11189 9004A11189 9011906915
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-BZ110

S402,412

品番ﾗﾍﾞﾙ有り

 1
89170-BZ590

S402,412

品番ﾗﾍﾞﾙ有り

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-BZ040

S402,412

 1
89179A - COVER, AIR BAG SENSOR
89179-BZ020B0

S402,412

DK.GRAY,TRIM1#

 1
Common parts
90044-67204B0
90044-67204C1
9004A-11189
90119-06915
