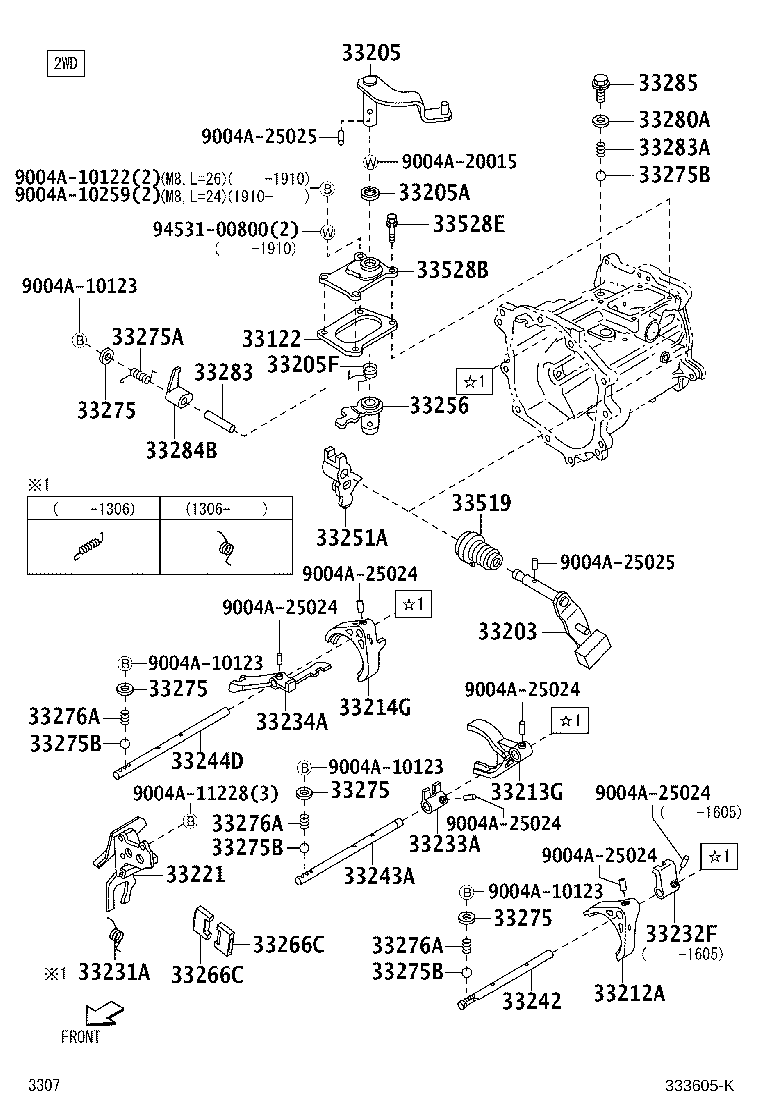

S402M-ZMRFJD (2008)
Toyota Lite/Townace
(0801-2007)S402..5F
2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-BZ020 |
S402..5F |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-BZ030 |
S402..5F |
1 | ||
| 33203-BZ060 |
S402..5F |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-BZ030 |
S402..5F |
1 | ||
| 33205-BZ050 |
S402..5F |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 9004A-31017 |
S402..5F |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 9004A-50032 |
S402..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-BZ010 |
S402..5F |
1 | ||
| 33212-BZ040 |
S402..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-BZ040 |
S402..5F |
1 | ||
| 33213-BZ090 |
S402..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-BZ050 |
S402..5F |
1 | ||
| 33214-BZ010 |
S402..5F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-BZ010 |
S402..5F |
1 | ||
| 33201-BZ011 |
S402..5F |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 9004A-50130 |
S402..5F |
1 | ||
| 9004A-50034 |
S402..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-BZ010 |
S402..5F |
1 | ||
| 33232-BZ020 |
S402..5F |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-BZ010 |
S402..5F |
1 | ||
| 33233-BZ030 |
S402..5F |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-BZ010 |
S402..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-BZ050 |
S402..5F |
1 | ||
| 33242-BZ010 |
S402..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-BZ090 |
S402..5F |
1 | ||
| 33243-BZ030 |
S402..5F |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-BZ070 |
S402..5F |
1 | ||
| 33244-BZ010 |
S402..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-BZ050 |
S402..5F |
1 | ||
| 33251-BZ010 |
S402..5F |
1 | ||
| 33251-BZ060 |
S402..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-BZ010 |
S402..5F |
1 | ||
| 33256-BZ040 |
S402..5F |
1 | ||
| 33256-BZ050 |
S402..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-BZ040 |
S402..5F |
2 | ||
| 33266-BZ050 |
S402..5F |
2 | ||
| 33266-BZ010 |
S402..5F |
2 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-BZ040 |
S402..5F |
2 | ||
| 33266-BZ050 |
S402..5F |
2 | ||
| 33266-BZ010 |
S402..5F |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
S402..5F 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
S402..5F 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
S402..5F 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
S402..5F 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 9004A-50033 |
S402..5F 長さ=22.3 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 9004A-36044 |
S402..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 9004A-36044 |
S402..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 9004A-36044 |
S402..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 9004A-36044 |
S402..5F |
4 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 9004A-50028 |
S402..5F |
3 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 9004A-50028 |
S402..5F |
3 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 9004A-50028 |
S402..5F |
3 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 9004A-43004 |
S402..5F |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-BZ050 |
S402..5F |
1 | ||
| 33283-BZ010 |
S402..5F |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 9004A-50104 |
S402..5F |
1 | ||
| 9004A-50125 |
S402..5F |
1 | ||
| 33284B - PIN, REVERSE RESTRICT, NO.2 | ||||
| 33284-BZ020 |
S402..5F |
1 | ||
| 33284-BZ010 |
S402..5F |
1 | ||
| 33285 - HOLDER, REVERSE RESTRICT PIN | ||||
| 33285-BZ020 |
S402..5F |
1 | ||
| 33285-BZ010 |
S402..5F |
1 | ||
| 33519 - BOOT, CONTROL SHAFT DUST | ||||
| 33519-BZ010 |
S402..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33528-87Z01 |
S402..5F |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 91611-60828 |
S402..5F *8−1.25PX28−28 |
2 | ||
| 9004A-11230 |
S402..5F |
2 | ||
| 9004A-10259 |
S402..5F |
2 | ||
| Common parts | ||||
| 9004A-10122 | ||||
| 9004A-10123 | ||||
| 9004A-10259 | ||||
| 9004A-11228 | ||||
| 9004A-20015 | ||||
| 9004A-25024 | ||||
| 9004A-25025 | ||||
| 94531-00800 | ||||
