S402M-ZMRFJD (2008)

Toyota Lite/Townace

Production Jan 2008 - Jul 2020
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )S402,412..5F ; (2007- )5F

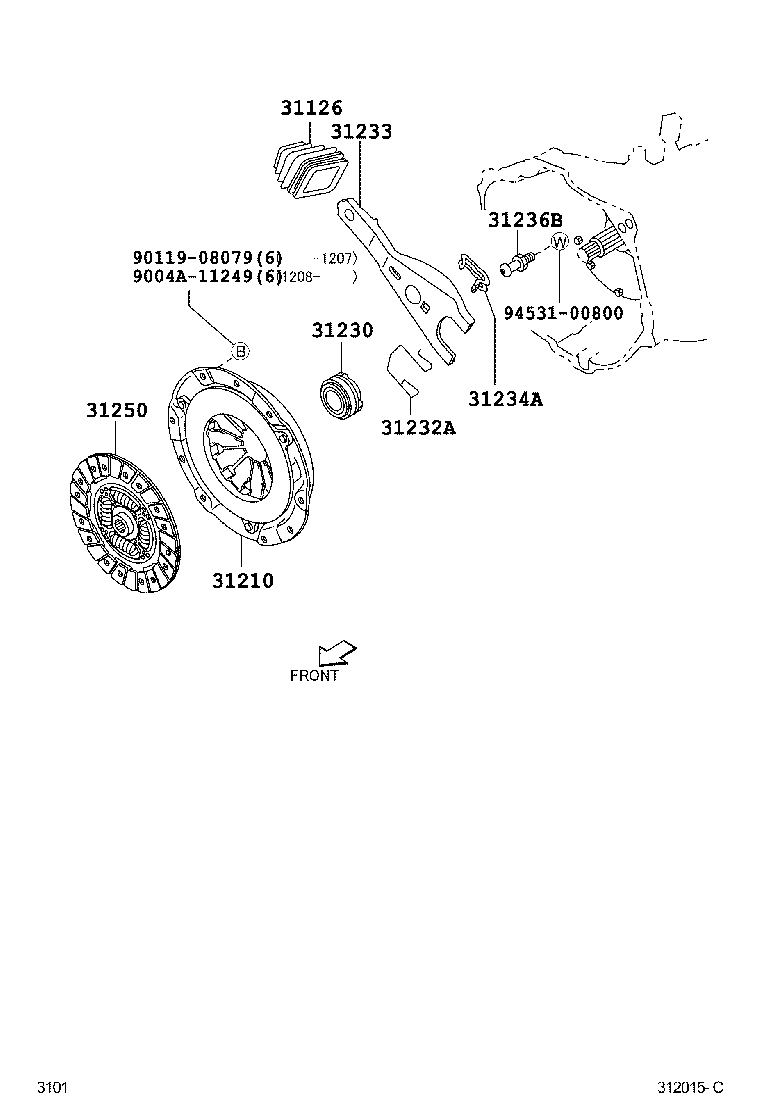

Click highlighted areas on diagram

diagram 31126 31210 31230 31232A 31233 31234A 31236B 31250 9004A11249 9011908079 9453100800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-BZ020

S402..5F

 1
31126-BZ010

S402..5F

 1
31210 - COVER ASSY, CLUTCH
31210-BZ081

S402,412..5F

 1
31210-BZ080

S402,412..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-BZ060

S402..5F

 1
31230-BZ010

S402..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-BZ020

S402..5F

 1
31232-BZ080

S402..5F

 1
31233 - FORK, CLUTCH RELEASE
31233-BZ060

S402..5F

 1
31234A - SPRING, RELEASE FORK SUPPORT
31234-BZ010

S402..5F

 1
31234-BZ030

S402..5F

 1
31234-BZ031

S402..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-BZ010

S402..5F

 1
31250 - DISC ASSY, CLUTCH
31250-BZ171

S402,412..5F

 1
31250-BZ170

S402,412..5F

 1
Common parts
9004A-11249
90119-08079
94531-00800
