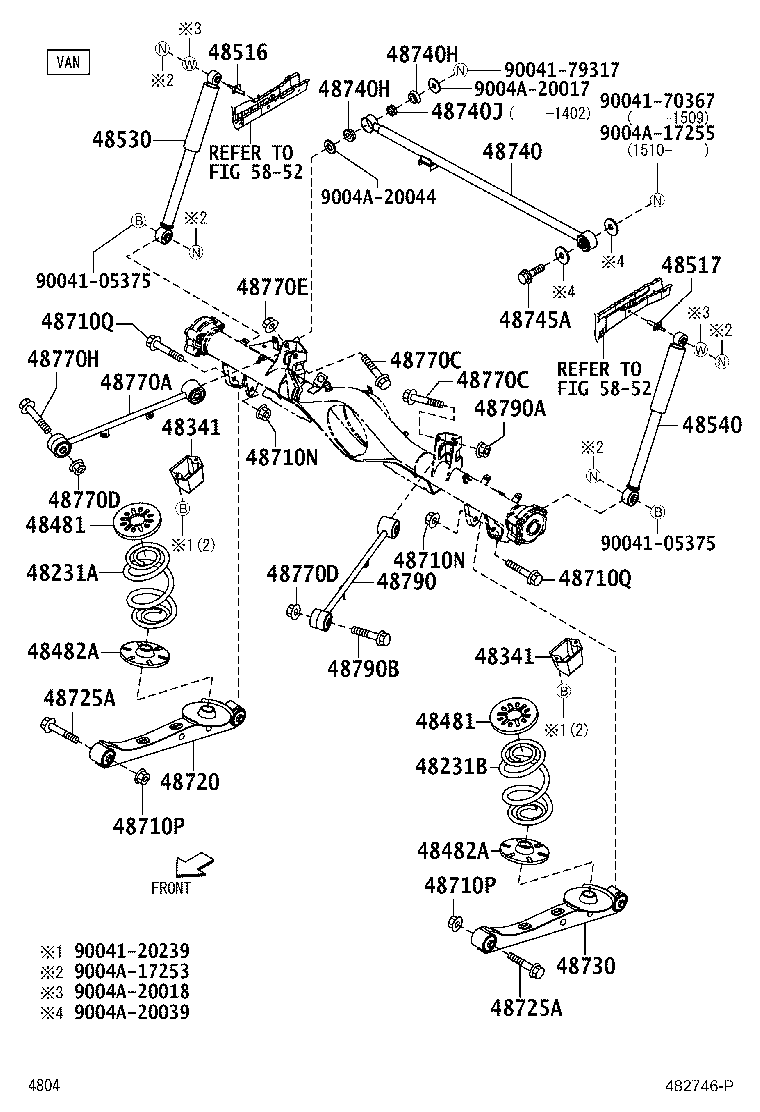

Toyota Lite/townace S402M REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48231A - SPRING, COIL, REAR RH
48231-BZ200	S402,412..VAN	01/2008 - 07/2020	1
48231B - SPRING, COIL, REAR LH
48231-BZ200	S402,412..VAN	01/2008 - 07/2020	1
48341 - BUMPER, REAR SPRING
48341-BZ010	S402,412..VAN	01/2008 - 07/2020	2
48341 - BUMPER, REAR SPRING
48341-BZ010	S402,412..VAN	01/2008 - 07/2020	2
48481 - SEAT, REAR SPRING, UPPER
48481-BZ040	S402,412..VAN	01/2008 - 07/2020	2
48481 - SEAT, REAR SPRING, UPPER
48481-BZ040	S402,412..VAN	01/2008 - 07/2020	2
48482A - SEAT, REAR SPRING, LOWER
48482-BZ010	S402,412..VAN	01/2008 - 07/2020	2
48482A - SEAT, REAR SPRING, LOWER
48482-BZ010	S402,412..VAN	01/2008 - 07/2020	2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-BZ080	S402,412..VAN	01/2008 - 07/2020	1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-BZ080	S402,412..VAN	01/2008 - 07/2020	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-BZ280	S402..VAN ﾏｰｸ 48531−BZ280	01/2008 - 07/2011	1
48531-BZ282	S402..VAN ﾏｰｸ 48531−BZ282	12/2013 - 11/2014	1
48531-BZ281	S402..VAN ﾏｰｸ 48531−BZ281	08/2011 - 11/2013	1
48531-BZ283	S402..VAN ﾏｰｸ 48531−BZ283	12/2014 - 02/2015	1
48531-BZ284	S402..VAN ﾏｰｸ 48531−BZ284	03/2015 - 07/2020	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-BZ281	S402..VAN ﾏｰｸ 48531−BZ281	08/2011 - 11/2013	1
48531-BZ280	S402..VAN ﾏｰｸ 48531−BZ280	01/2008 - 07/2011	1
48531-BZ284	S402..VAN ﾏｰｸ 48531−BZ284	03/2015 - 07/2020	1
48531-BZ282	S402..VAN ﾏｰｸ 48531−BZ282	12/2013 - 11/2014	1
48531-BZ283	S402..VAN ﾏｰｸ 48531−BZ283	12/2014 - 02/2015	1
48710N - NUT, NO.1(FOR REAR LOWER CONTROL ARM)
90041-70366	S402,412..VAN	01/2008 - 09/2015	2
9004A-17254	S402,412..VAN	10/2015 - 07/2020	2
48710N - NUT, NO.1(FOR REAR LOWER CONTROL ARM)
90041-70366	S402,412..VAN	01/2008 - 09/2015	2
9004A-17254	S402,412..VAN	10/2015 - 07/2020	2
48710P - NUT, NO.2(FOR REAR LOWER CONTROL ARM)
9004A-17257	S402,412..VAN	10/2015 - 07/2020	2
90041-79318	S402,412..VAN	01/2008 - 09/2015	2
48710P - NUT, NO.2(FOR REAR LOWER CONTROL ARM)
9004A-17257	S402,412..VAN	10/2015 - 07/2020	2
90041-79318	S402,412..VAN	01/2008 - 09/2015	2
48710Q - BOLT(FOR REAR LOWER CONTROL ARM)
90041-01664	S402,412..VAN	01/2008 - 11/2015	2
9004A-10159	S402,412..VAN	11/2015 - 07/2020	2
48710Q - BOLT(FOR REAR LOWER CONTROL ARM)
90041-01664	S402,412..VAN	01/2008 - 11/2015	2
9004A-10159	S402,412..VAN	11/2015 - 07/2020	2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-BZ040	S402,412..VAN	01/2008 - 07/2020	1
48725A - BOLT(FOR LOWER CONTROL ARM)
90041-05378	S402,412..VAN	01/2008 - 11/2015	2
9004A-10149	S402,412..VAN	11/2015 - 07/2020	2
48725A - BOLT(FOR LOWER CONTROL ARM)
90041-05378	S402,412..VAN	01/2008 - 11/2015	2
9004A-10149	S402,412..VAN	11/2015 - 07/2020	2
48730 - ARM ASSY, LOWER CONTROL, LH
48720-BZ040	S402,412..VAN	01/2008 - 07/2020	1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-BZ051	S402,412..VAN..5F	02/2014 - 07/2020	1
48740-BZ050	S402,412..VAN..5F	01/2008 - 01/2014	1
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85149	S402,412..VAN	01/2008 - 01/2014	2
48706-BZ060	S402,412..VAN	02/2014 - 07/2020	2
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85149	S402,412..VAN	01/2008 - 01/2014	2
48706-BZ060	S402,412..VAN	02/2014 - 07/2020	2
48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD)
90043-86103	S402,412..VAN	01/2008 - 02/2014	1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
9004A-10160	S402,412..VAN	11/2015 - 07/2020	1
90041-05407	S402,412..VAN	01/2008 - 11/2015	1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48710-BZ070	S402,412..VAN	01/2008 - 07/2020	1
48770C - BOLT(FOR REAR UPPER CONTROL ARM)
9004A-10157	S402,412..VAN	11/2015 - 07/2020	2
90041-01662	S402,412..VAN	01/2008 - 11/2015	2
48770C - BOLT(FOR REAR UPPER CONTROL ARM)
9004A-10157	S402,412..VAN	11/2015 - 07/2020	2
90041-01662	S402,412..VAN	01/2008 - 11/2015	2
48770D - NUT(FOR REAR UPPER CONTROL ARM)
90041-79318	S402,412..VAN	01/2008 - 09/2015	2
9004A-17257	S402,412..VAN	10/2015 - 07/2020	2
48770D - NUT(FOR REAR UPPER CONTROL ARM)
90041-79318	S402,412..VAN	01/2008 - 09/2015	2
9004A-17257	S402,412..VAN	10/2015 - 07/2020	2
48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH)
90041-70366	S402,412..VAN	01/2008 - 09/2015	1
9004A-17254	S402,412..VAN	10/2015 - 07/2020	1
48770H - BOLT(FOR REAR UPPER CONTROL ARM RH)
9004A-10149	S402,412..VAN	11/2015 - 07/2020	1
90041-05378	S402,412..VAN	01/2008 - 11/2015	1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48710-BZ070	S402,412..VAN	01/2008 - 07/2020	1
48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH)
9004A-17254	S402,412..VAN	10/2015 - 07/2020	1
90041-70366	S402,412..VAN	01/2008 - 09/2015	1
48790B - BOLT(FOR REAR UPPER CONTROL ARM LH)
9004A-10149	S402,412..VAN	11/2015 - 07/2020	1
90041-05378	S402,412..VAN	01/2008 - 11/2015	1
Common parts
90041-05375
90041-20239
90041-70367
90041-79317
9004A-17253
9004A-17255
9004A-20017
9004A-20018
9004A-20039
9004A-20044
Linked diagrams
5852

S402M-ZMDFJD (2008)

(0801-2007)VAN
