KM85-TKQDE (2002)

Toyota Lite/Townace

Production Aug 2002 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0208-0408)CM75,8#,KM75,80..JL ; (0208- )KM85..5H ; (0408- )KM75,80..JL ; (05

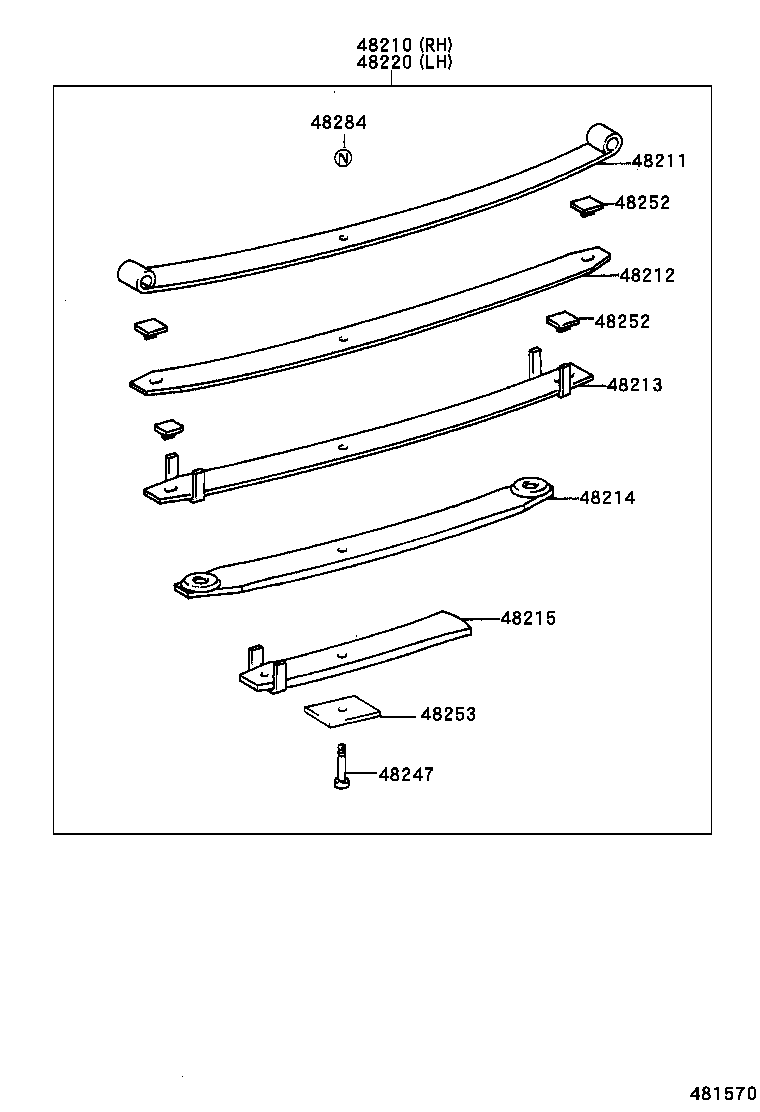

Click highlighted areas on diagram

5-LEAF,TYPE C

diagram 48210 48211 48212 48213 48214 48215 48220 48247 48252 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼｮｳ,ｲﾗｽﾄﾏｰｸ = R-27830

 1
48210-27820

CM8#,KM8#..CBU,IV3

5枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼｮｳ,ｲﾗｽﾄﾏｰｸ = R-27820

 1
48211 - LEAF, REAR SPRING, NO.1
48211-27820

CM8#,KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48211-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48212 - LEAF, REAR SPRING, NO.2
48212-27820

KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48212-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48213 - LEAF, REAR SPRING, NO.3
48202-27820

CM8#,KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48202-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48214 - LEAF, REAR SPRING, NO.4
48203-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48203-27820

CM8#,KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48215 - LEAF, REAR SPRING, NO.5
48204-27820

CM8#,KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48204-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48220 - SPRING ASSY, REAR LH
48210-27830

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼｮｳ,ｲﾗｽﾄﾏｰｸ = R-27830

 1
48210-27820

CM8#,KM8#..CBU,IV3

5枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼｮｳ,ｲﾗｽﾄﾏｰｸ = R-27820

 1
48247 - BOLT, REAR SPRING, CENTER
48247-25020

CM85..TS;CM75,KM75,85..JL,SJL;CM80,KM80..TS..3SO..CBU

5-LEAF(TYPE A,B)

 2
48247-36530

CM8#,KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48247-36052

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6)

 8
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6)

 8
48253 - SPACER, REAR SPRING, NO.1
48253-26630

CM8#,KM8#..CBU,IV3

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27820

 2
48253-26690

CM80,KM80..TS..CBU;CM75,85,KM75,85..JL

5-LEAF(TYPE C),ｲﾗｽﾄﾏｰｸ = R-27830

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

CM75..CBU;CM70,8#,KM7#,8#

 2
48284-37130

CM7#,8#,KM7#,8#

 2
