Toyota Lite/townace KM85 HEADLAMP

KM85-TBQDE6 (2002)

Toyota Lite/Townace

Production Aug 2002 - Aug 2007

Engine 7KE

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CM7#,8#,KM7#,8# 12V 60/55W,ﾊﾛｹﾞﾝ	08/2002 - 08/2007	2
90981-22004	CM7#,8#,KM7#,8# 12V 60/55W,HAL WH	06/1999 - 08/2002	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-27090	KM7#,8#	08/2004 - 12/2999	1
81130-27080	CM7#,8#,KM7#,8#	08/2002 - 08/2004	1
81130-27080	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
81144 - COVER, HEADLAMP, NO.1
90075-65002	CM7#,8#,KM7#,8#	06/1999 - 08/2002	2
90075-65002	KM7#,8#	08/2002 - 12/2999	2
90075-65002	CM7#,8#	08/2002 - 08/2004	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-27080	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
81170-27090	KM7#,8#	08/2004 - 12/2999	1
81170-27080	CM7#,8#,KM7#,8#	08/2002 - 08/2004	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043	CM7#,8#,KM7#,8# 12V 21W	06/1999 - 08/2002	2
90981-13043	CM7#,8#,KM7#,8# 12V 21W	08/2002 - 08/2004	2
90981-15011	KM7#,8# 12V 21W,ｱﾝﾊﾞｰ	08/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99080	CM7#,8#,KM7#,8#	06/1999 - 08/2002	2
90075-99080	CM7#,8#,KM7#,8#	08/2002 - 08/2004	2
90075-60028	KM7#,8#	08/2004 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CM7#,8# 12V 5W	08/2002 - 08/2004	2
99132-12050	KM7#,8# 12V 5W	08/2002 - 12/2999	2
99132-12050	CM7#,8#,KM7#,8# 12V 5W	06/1999 - 08/2002	2
81615D - SOCKET, CLEARANCE LAMP
99159-10228	CM7#,8#,KM7#,8#	06/1999 - 08/2002	2
99159-10228	CM7#,8#,KM7#,8#	08/2002 - 08/2004	2
Common parts
71196-26040
90159-50369
90467-13078
90950-01759
90950-01968
Linked diagrams
5252

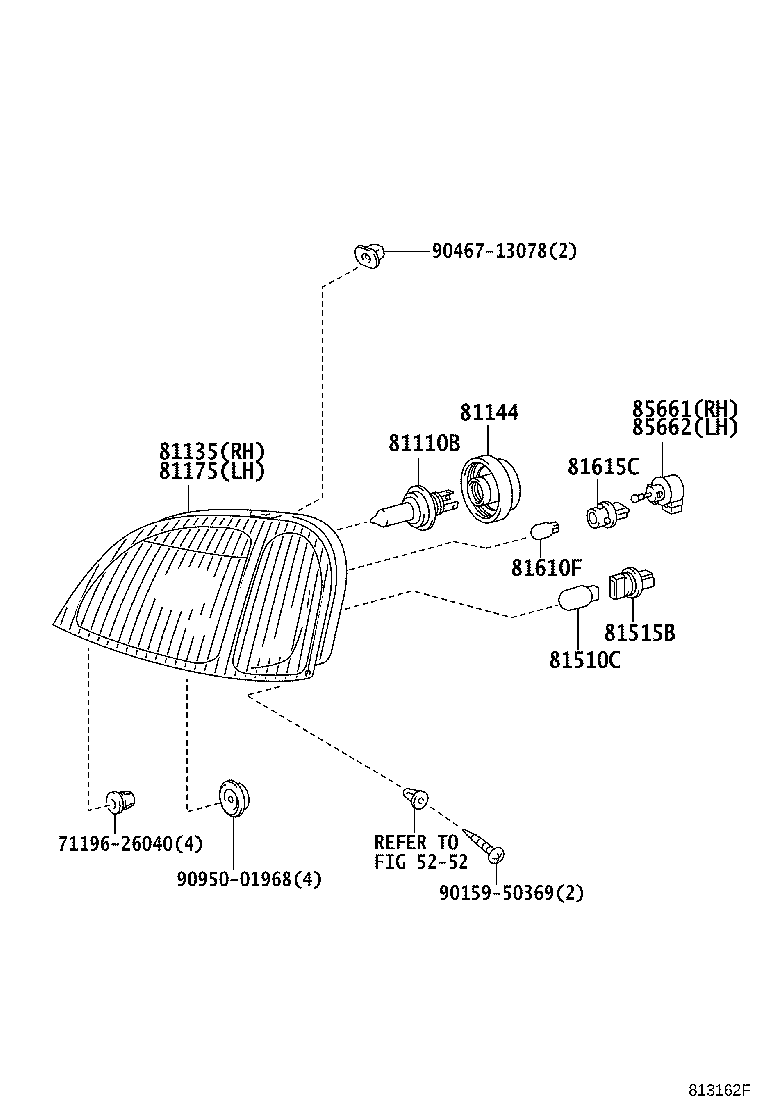

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CM7#,8#,KM7#,8# 12V 60/55W,ﾊﾛｹﾞﾝ	08/2002 - 08/2007	2
90981-22004	CM7#,8#,KM7#,8# 12V 60/55W,HAL WH	06/1999 - 08/2002	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-27090	KM7#,8#	08/2004 - 12/2999	1
81130-27080	CM7#,8#,KM7#,8#	08/2002 - 08/2004	1
81130-27080	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
81144 - COVER, HEADLAMP, NO.1
90075-65002	CM7#,8#,KM7#,8#	06/1999 - 08/2002	2
90075-65002	KM7#,8#	08/2002 - 12/2999	2
90075-65002	CM7#,8#	08/2002 - 08/2004	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-27080	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
81170-27090	KM7#,8#	08/2004 - 12/2999	1
81170-27080	CM7#,8#,KM7#,8#	08/2002 - 08/2004	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043	CM7#,8#,KM7#,8# 12V 21W	06/1999 - 08/2002	2
90981-13043	CM7#,8#,KM7#,8# 12V 21W	08/2002 - 08/2004	2
90981-15011	KM7#,8# 12V 21W,ｱﾝﾊﾞｰ	08/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99080	CM7#,8#,KM7#,8#	06/1999 - 08/2002	2
90075-99080	CM7#,8#,KM7#,8#	08/2002 - 08/2004	2
90075-60028	KM7#,8#	08/2004 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CM7#,8# 12V 5W	08/2002 - 08/2004	2
99132-12050	KM7#,8# 12V 5W	08/2002 - 12/2999	2
99132-12050	CM7#,8#,KM7#,8# 12V 5W	06/1999 - 08/2002	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
81125-27090	KM7#,8#	08/2004 - 12/2999	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-22020	KM7#,8#	08/2004 - 12/2999	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-22020	KM7#,8#	08/2004 - 12/2999	1
Common parts
71196-26040
90159-50369
90467-13078
90950-01968
Linked diagrams
5252
