KM80-TSQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)1SO

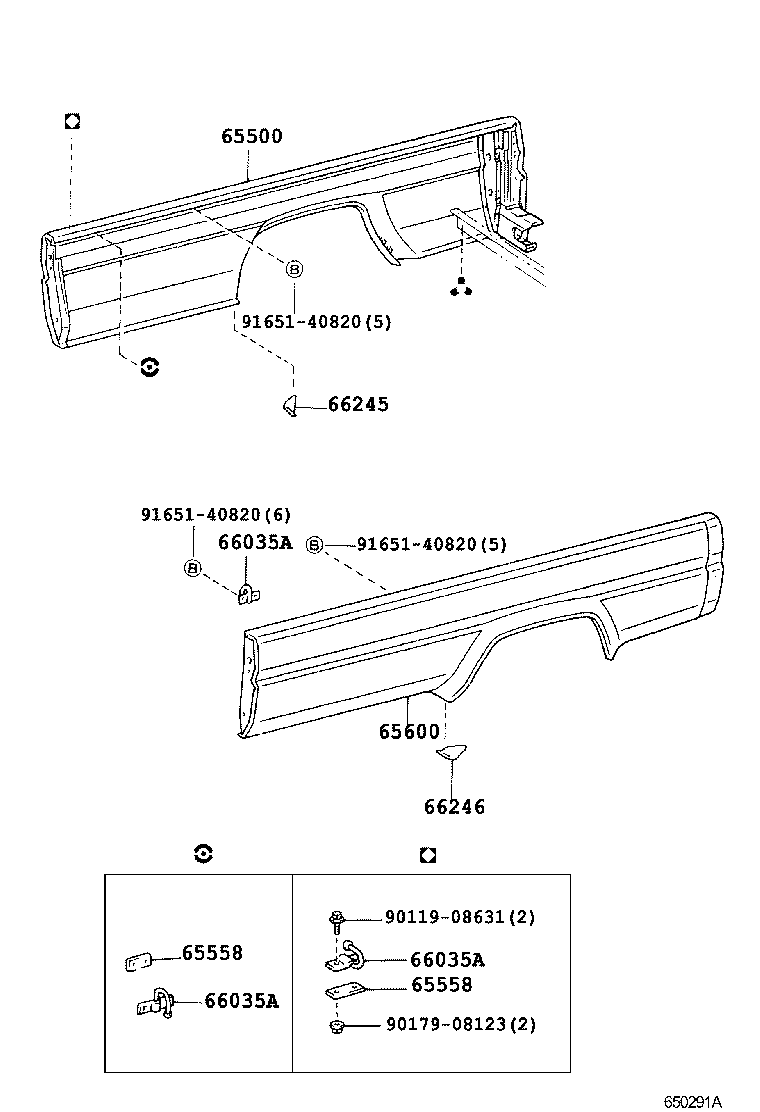

Click highlighted areas on diagram

diagram 65500 65558 65558 65600 66035A 66035A 66035A 66245 66246 9011908631 9017908123 9165140820 9165140820 9165140820
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95705

KM70,80..T1

 1
65500-95706

KM70,80..T1

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
65558 - SPACER, ROPE HOOK
65558-95701

KM70,80..1SO

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 10
65558 - SPACER, ROPE HOOK
65558-95701

KM70,80..1SO

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 10
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95705

KM70,80..T1

 1
65600-95706

KM70,80..T1

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
66035A - ROPE HOOK SET
66301-95700

KM70,80..TS..1SO

 3
66301-95700

KM70,80..1SO

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 14
66035A - ROPE HOOK SET
66301-95700

KM70,80..TS..1SO

 3
66301-95700

KM70,80..1SO

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 14
66035A - ROPE HOOK SET
66301-95700

KM70,80..TS..1SO

 3
66301-95700

KM70,80..1SO

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 14
66245 - PROTECTOR, REAR BODY, NO.3 RH
66245-95701

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
66246 - PROTECTOR, REAR BODY, NO.3 LH
66246-95701

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
Common parts
90119-08631
90179-08123
91651-40820
