KM80-TSQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

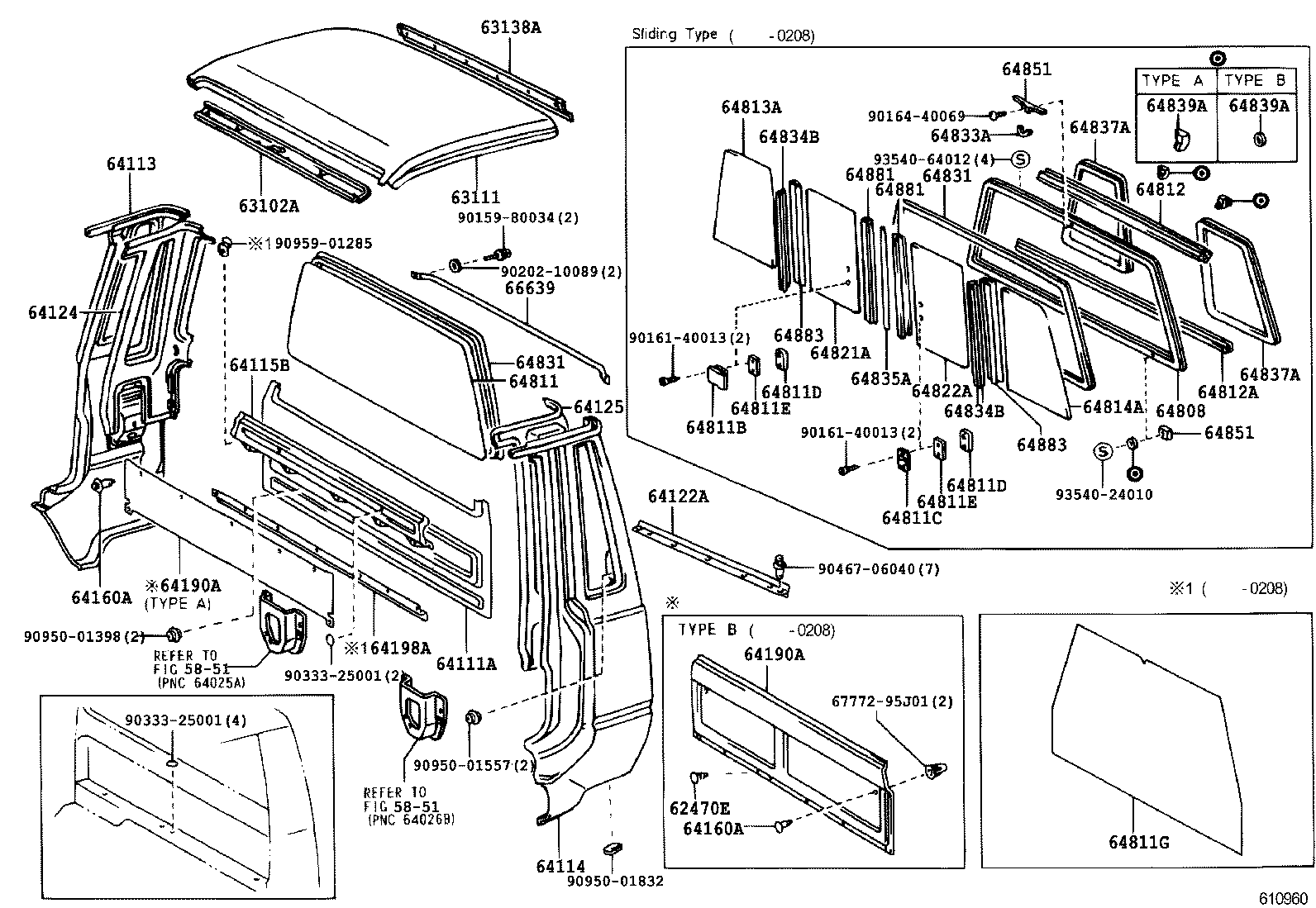

Click highlighted areas on diagram

diagram 5851 5851 62470E 63102A 63111 63138A 64111A 64113 64114 64115B 64122A 64124 64125 64160A 64160A 64190A 64190A 64198A 64808 64811 64811B 64811C 64811D 64811D 64811E 64811E 64811G 64812 64812A 64813A 64814A 64821A 64822A 64831 64831 64833A 64834B 64834B 64835A 64837A 64837A 64839A 64839A 64851 64851 64881 64881 64883 64883 66639 6777295J01 9015980034 9016140013 9016140013 9016440069 9020210089 9033325001 9033325001 9046706040 9095001398 9095001557 9095001832 9095901285 9354024010 9354064012
Part # Description Qty Price
62470E - CLIP(FOR BACK PANEL TRIM)
90467-10034B7

CM85..TS;CM7#,80,KM7#,8#

DK.CHARCOAL,TRIM1#

 7
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM7#,8#,KM7#,8#..DX

 1
63102-95707

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
63111 - PANEL, ROOF
63111-95715

CM7#,8#,KM7#,8#

 1
63111-27010

CM7#,8#,KM7#,8#

 1
63138A - REINFORCEMENT, BACK WINDOW, UPPER
63138-95700

CM7#,8#,KM7#,8#

 1
64111A - PANEL, BACK
64111-27040

CM7#,8#,KM7#,8#

 1
64111-27020

CM7#,8#,KM7#,8#

 1
64113 - PANEL, BACK CORNER, OUTER RH
64103-27030

CM7#,8#,KM7#,8#

 1
64103-27020

KM70,80..TS..1SO..DX

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
64103-27010

CM7#,8#,KM7#,8#

 1
64103-27040

KM70,80..TS..1SO..DX

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
64114 - PANEL, BACK CORNER, OUTER LH
64104-27020

KM70,80..TS..1SO..DX

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
64104-27010

CM7#,8#,KM7#,8#

 1
64104-27030

CM7#,8#,KM7#,8#

 1
64104-27040

KM70,80..TS..1SO..DX

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
64115B - REINFORCEMENT, BACK PANEL
64115-27010

CM7#,8#,KM7#,8#

 1
64122A - BAFFLE, DUST REAR BODY
64122-27030

CM7#,8#,KM7#,8#

 1
64124 - PANEL, BACK CORNER, INSIDE, RH
64015-27010

CM7#,8#,KM7#,8#..DX

 1
64015-27011

CM7#,8#,KM7#,8#..DX

 1
64015-27021

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
64015-27020

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
64125 - PANEL, BACK CORNER, INSIDE, LH
64016-27030

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
64016-27021

CM7#,8#,KM7#,8#..DX

 1
64016-27020

CM7#,8#,KM7#,8#..DX

 1
64016-27031

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
64160A - CLIP(FOR BACK PANEL UPPER SILENCER)
90467-06171C0

CM7#,8#

ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙ ｻｲﾚﾝｻ=TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ),BLACK,TRIM1#

 7
90467-07054B3

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙ ｻｲﾚﾝｻ=TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ),DK.CHARCOAL,TRIM1#

 2
64160A - CLIP(FOR BACK PANEL UPPER SILENCER)
90467-06171C0

CM7#,8#

ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙ ｻｲﾚﾝｻ=TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ),BLACK,TRIM1#

 7
90467-07054B3

CM85..TS;CM7#,80,KM7#,8#

ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙ ｻｲﾚﾝｻ=TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ),DK.CHARCOAL,TRIM1#

 2
64190A - SILENCER ASSY, BACK PANEL
64190-27020

CM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64190-27010B2

CM85..TS;CM7#,80,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
64190A - SILENCER ASSY, BACK PANEL
64190-27020

CM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64190-27010B2

CM85..TS;CM7#,80,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
64198A - BRACKET, BACK PANEL SILENCER
64198-95700

CM85..TS;CM7#,80,KM7#,8#

 1
64811 - GLASS, BACK WINDOW
64811-27010

CM7#,8#,KM7#,8#..DX

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95700

CM7#,8#,KM7#,8#

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95700

CM7#,8#,KM7#,8#

 1
66639 - BAR, BACK WINDOW GUARD, LOWER
66639-95700

KM70,80..TS..1SO..DX

 1
Common parts
67772-95J01
90159-80034
90161-40013
90164-40069
90202-10089
90333-25001
90467-06040
90950-01398
90950-01557
90950-01832
90959-01285
93540-24010
93540-64012
Linked diagrams
5851
