KM80-TSQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

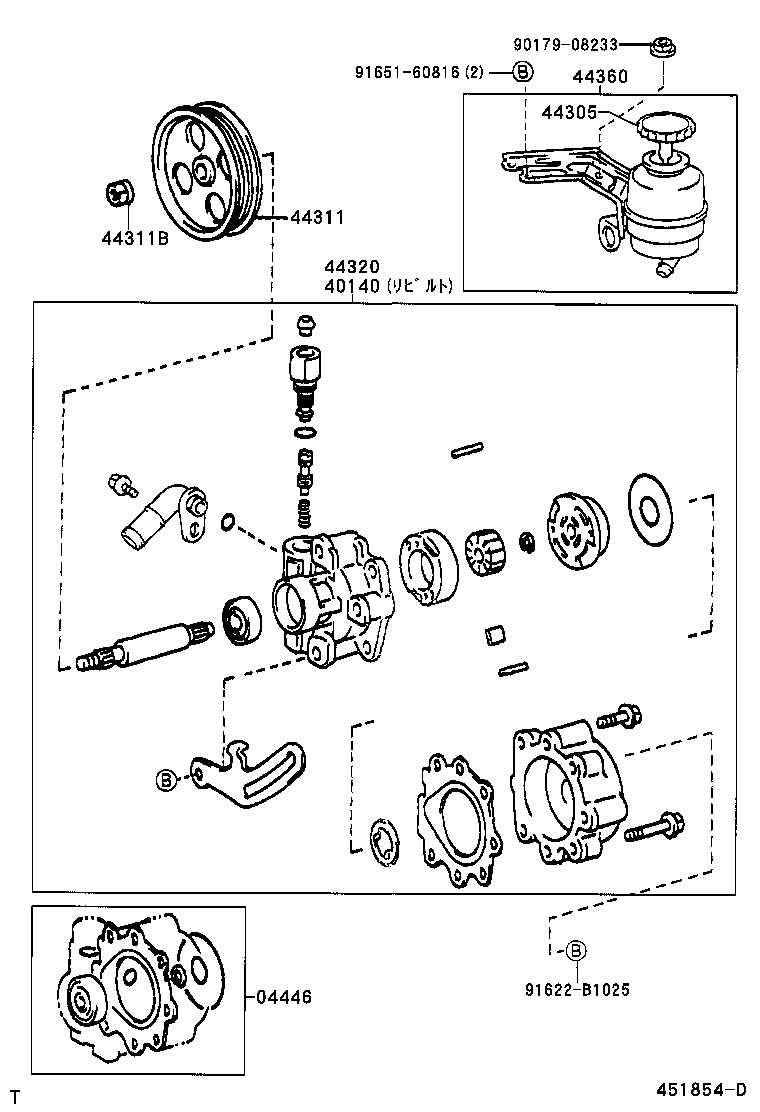

ILLUST NO. 1 OF 2(9906- )CM7#,8#

Click highlighted areas on diagram

diagram 04446 40140 44305 44311 44311B 44320 44360 9017908233 91622B1025 9165160816
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-34010

CM7#,8#,KM7#,8#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-27140

KM7#,8#

 1
40140-27130

CM7#,8#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020

CM7#,8#,KM7#,8#

 1
44311 - PULLEY, VANE PUMP
44311-27040

KM7#,8#

 1
44311-28080

CM7#,8#

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

KM7#,8#

 1
90179-12022

CM7#,8#

 1
44320 - PUMP ASSY, VANE
44320-27130

CM7#,8#

 1
44320-27140

KM7#,8#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-27130

KM7#,8#

 1
44360-27120

CM7#,8#

 1
Common parts
90179-08233
91622-B1025
91651-60816

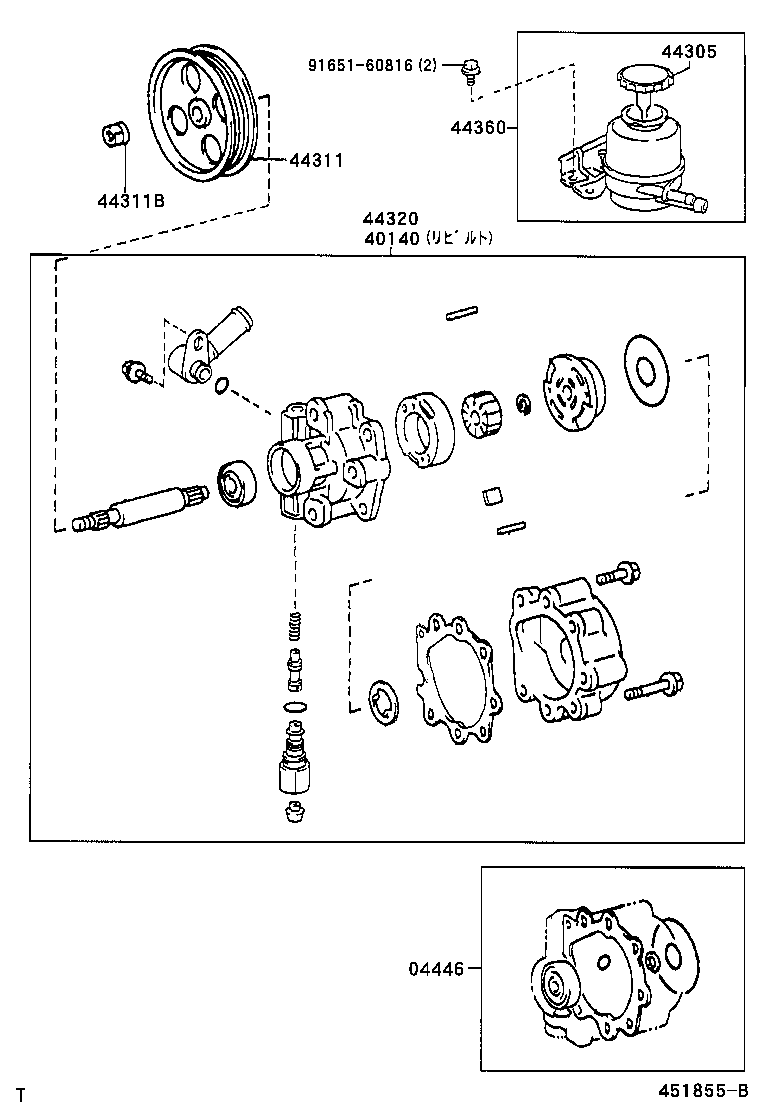

ILLUST NO. 1 OF 2(9906- )KM7#,8#

Click highlighted areas on diagram

diagram 04446 40140 44305 44311 44311B 44320 44360 9165160816
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-34010

CM7#,8#,KM7#,8#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-27140

KM7#,8#

 1
40140-27130

CM7#,8#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020

CM7#,8#,KM7#,8#

 1
44311 - PULLEY, VANE PUMP
44311-27040

KM7#,8#

 1
44311-28080

CM7#,8#

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

KM7#,8#

 1
90179-12022

CM7#,8#

 1
44320 - PUMP ASSY, VANE
44320-27130

CM7#,8#

 1
44320-27140

KM7#,8#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-27130

KM7#,8#

 1
44360-27120

CM7#,8#

 1
Common parts
91651-60816
