KM75-TWQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)CM7#,KM7# ; (0208- )CM7#,KM7#..CBU,IV3

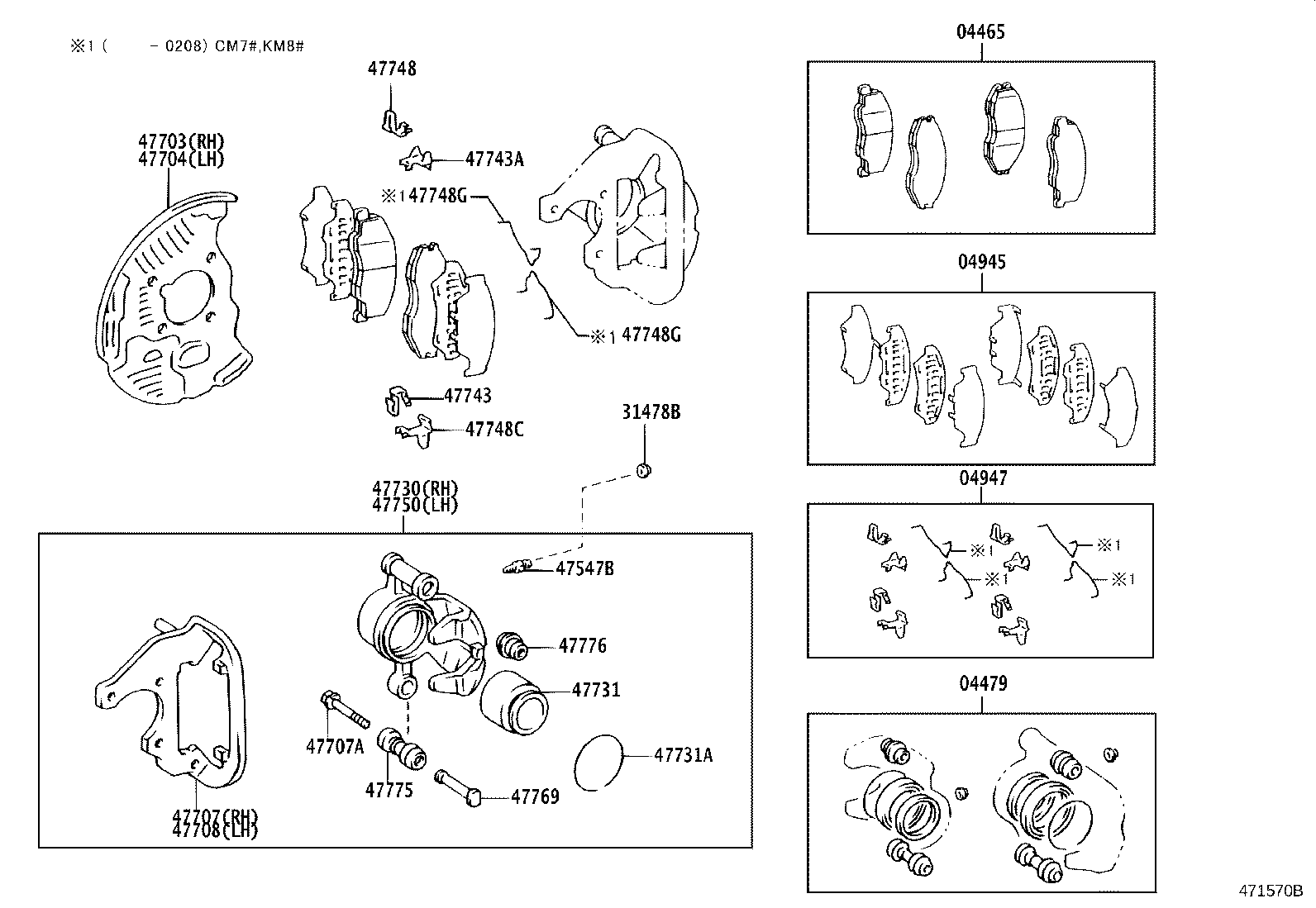

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47707 47707A 47708 47730 47731 47731A 47743 47743A 47748 47748C 47748G 47748G 47750 47769 47775 47776
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-28420

CM7#,KM7#

ﾏｰｸ AISIN T536

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-28050

CM7#,8#,KM7#,8#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-28130

CM7#,KM7#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-14020

CM7#,8#,KM7#,8#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CM7#,8#,KM7#,8#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27040

CM7#,KM7#

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-28090

CM7#,KM7#

ｱﾘ(ABS)

 1
47703-28072

CM7#,KM7#

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-28072

CM7#,KM7#

 1
47704-28090

CM7#,KM7#

ｱﾘ(ABS)

 1
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-28140

CM7#,KM7#

 1
47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-10385

CM7#,8#,KM7#,8#

 2
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47708-28140

CM7#,KM7#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-28210

CM7#,KM7#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-28040

CM7#,8#,KM7#,8#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-67001

CM7#,8#,KM7#,8#

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-14040

CM7#,8#,KM7#,8#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-28010

CM7#,8#,KM7#,8#

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-14050

CM7#,8#,KM7#,8#

 2
47748C - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47748-28010

CM7#,8#,KM7#,8#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-28210

CM7#,KM7#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28020

CM7#,8#,KM7#,8#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-28020

CM7#,8#,KM7#,8#

 2
47776 - BOOT, MAIN PIN(FOR FRONT DISC BRAKE)
47776-14010

CM7#,8#,KM7#,8#

 2

(9906-0208)CM8#,KM8# ; (0208- )CM75,8#,KM75,8#..JL

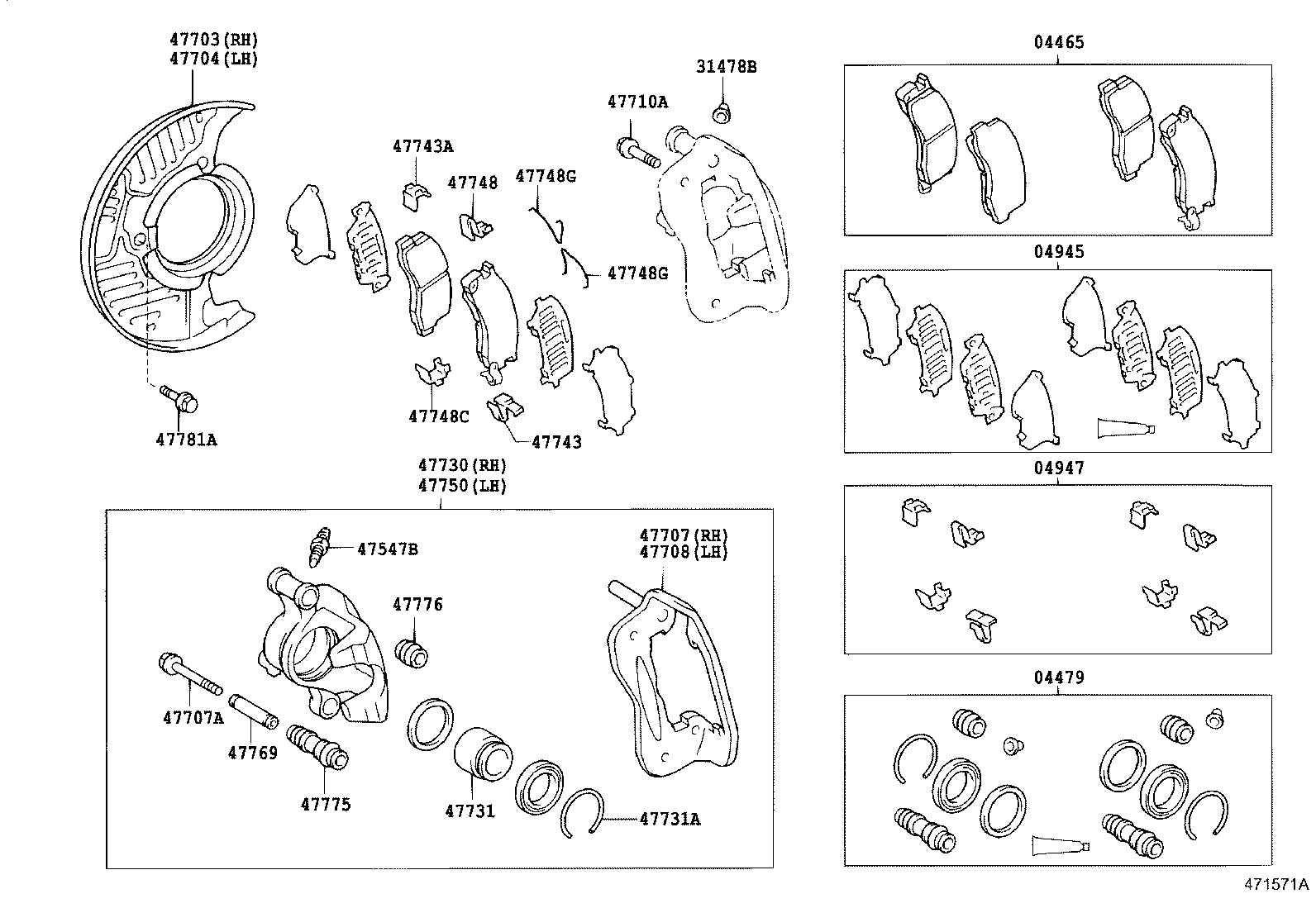

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47707 47707A 47708 47710A 47730 47731 47731A 47743 47743A 47748 47748C 47748G 47748G 47750 47769 47775 47776 47781A
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-28420

CM7#,KM7#

ﾏｰｸ AISIN T536

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-28050

CM7#,8#,KM7#,8#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-28130

CM7#,KM7#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-14020

CM7#,8#,KM7#,8#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CM7#,8#,KM7#,8#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27040

CM7#,KM7#

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-28090

CM7#,KM7#

ｱﾘ(ABS)

 1
47703-28072

CM7#,KM7#

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-28072

CM7#,KM7#

 1
47704-28090

CM7#,KM7#

ｱﾘ(ABS)

 1
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-28140

CM7#,KM7#

 1
47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-10385

CM7#,8#,KM7#,8#

 2
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47708-28140

CM7#,KM7#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-28210

CM7#,KM7#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-28040

CM7#,8#,KM7#,8#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-67001

CM7#,8#,KM7#,8#

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-14040

CM7#,8#,KM7#,8#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-28010

CM7#,8#,KM7#,8#

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-14050

CM7#,8#,KM7#,8#

 2
47748C - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47748-28010

CM7#,8#,KM7#,8#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-28210

CM7#,KM7#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28020

CM7#,8#,KM7#,8#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-28020

CM7#,8#,KM7#,8#

 2
47776 - BOOT, MAIN PIN(FOR FRONT DISC BRAKE)
47776-14010

CM7#,8#,KM7#,8#

 2
