KM75-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

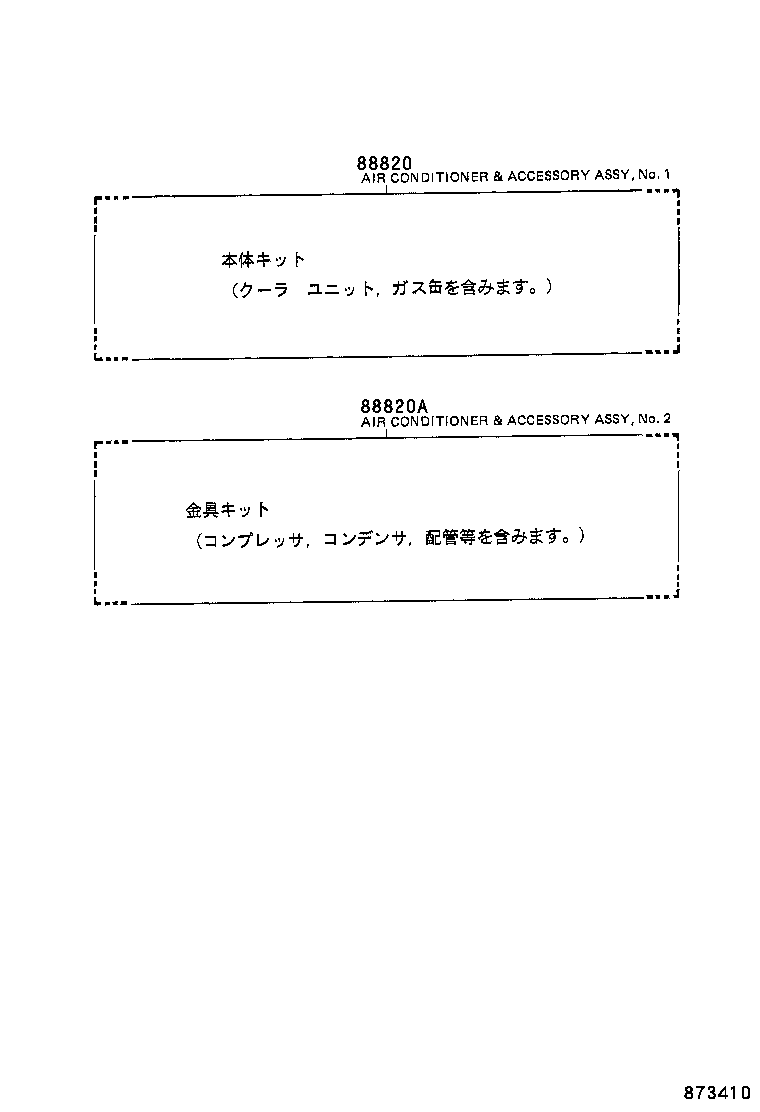

ILLUST NO. 1 OF 2(9906-0208)

Click highlighted areas on diagram

diagram 88820 88820A
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-27130

CM7#,8#,KM7#,8#

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-27390

KM7#,8#

 1

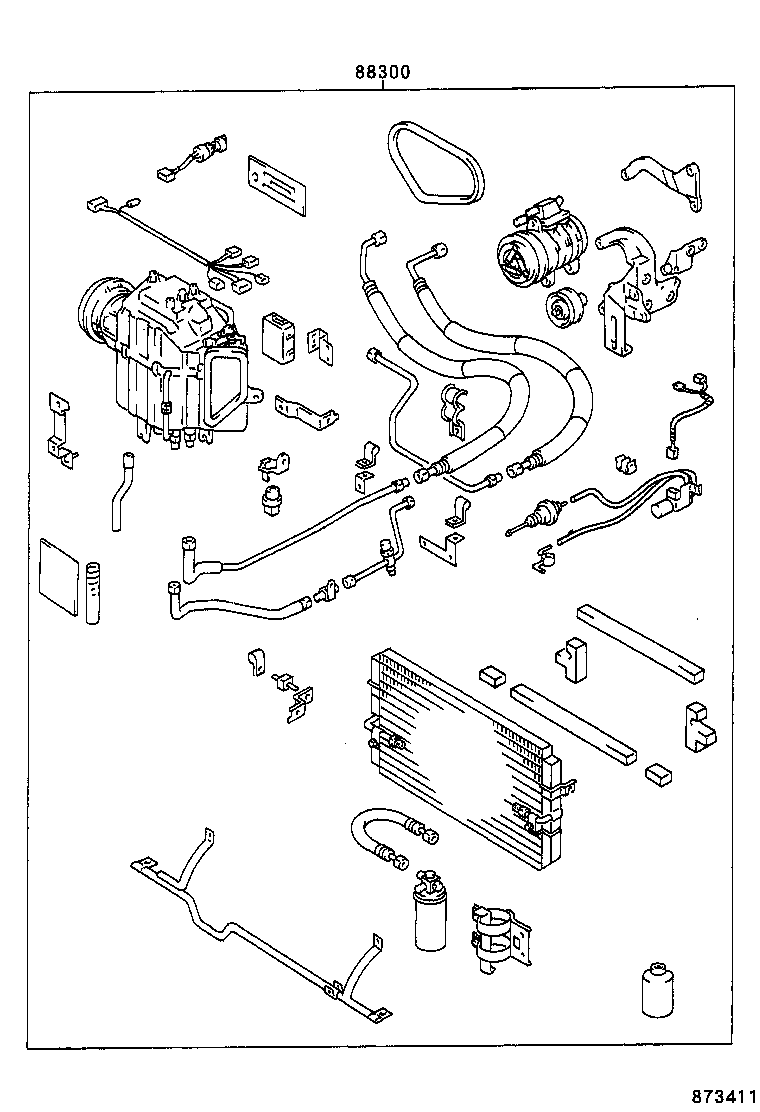

ILLUST NO. 2 OF 2(9906- )KM85..5H;CM7#,8#,KM7#,80

Click highlighted areas on diagram

diagram 88300
Part # Description Qty Price
