KM75-TLSDE3 (1999)
Toyota Lite/Townace

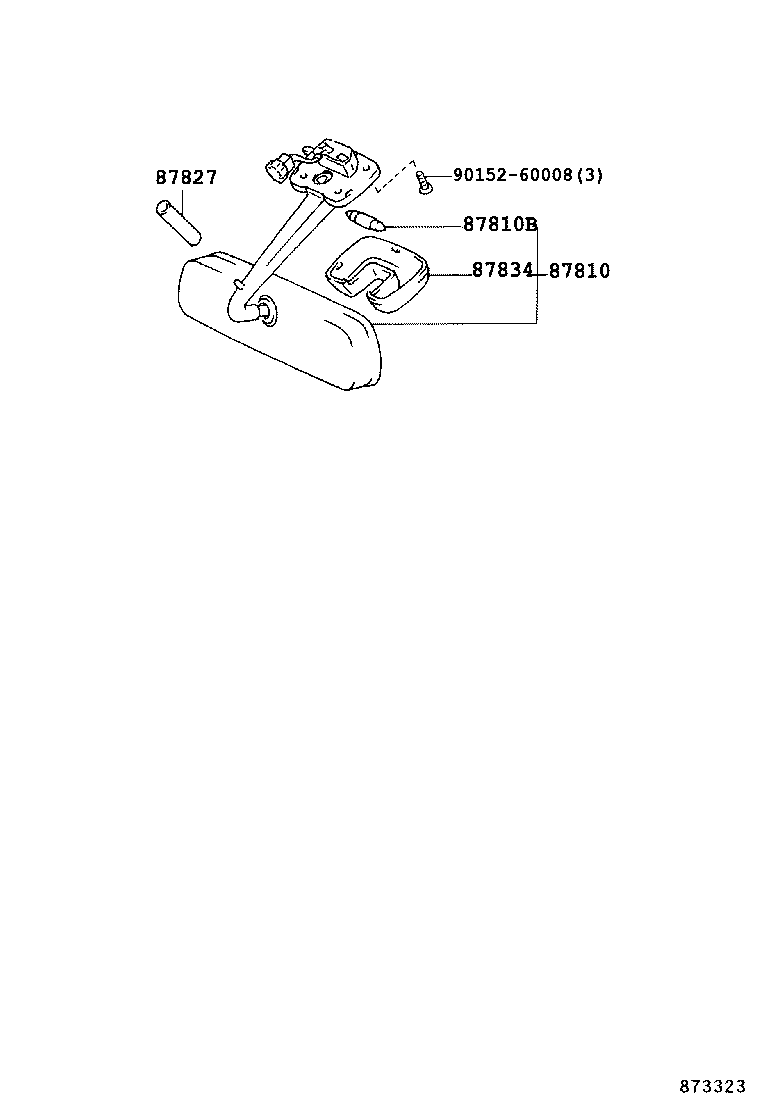

ILLUST NO. 1 OF 2(9906- )
ｲﾝﾅ ﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95707B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 87810-95708B0 |
KM70..JL..5H;KM70..1SO..5H;KM70..SJL..3SO;CM7#,80,KM75..CBU,IV3;CM85,KM8#..TS..(CBU,IV3) ﾎﾞｳｹﾞﾝ ﾐﾗ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 87810-95707B0 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 87810-95708B0 |
CM85..TS;CM7#,80,KM7#,8#..DX ﾎﾞｳｹﾞﾝ ﾐﾗ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
CM7#,8#,KM7#,8# 12V 10W |
1 | ||
| 90981-11027 |
KM7#,8# 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-22020 |
CM7#,8#,KM7#,8# 長さ=350 |
1 | ||
| 87828-23010 |
CM7#,8#,KM7#,8# 長さ=405 |
1 | ||
| 87828-22020 |
KM7#,8# 長さ=35.8 |
1 | ||
| 87828-23010 |
KM7#,8# 長さ=40.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 81243-95701 |
KM7#,8# |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||

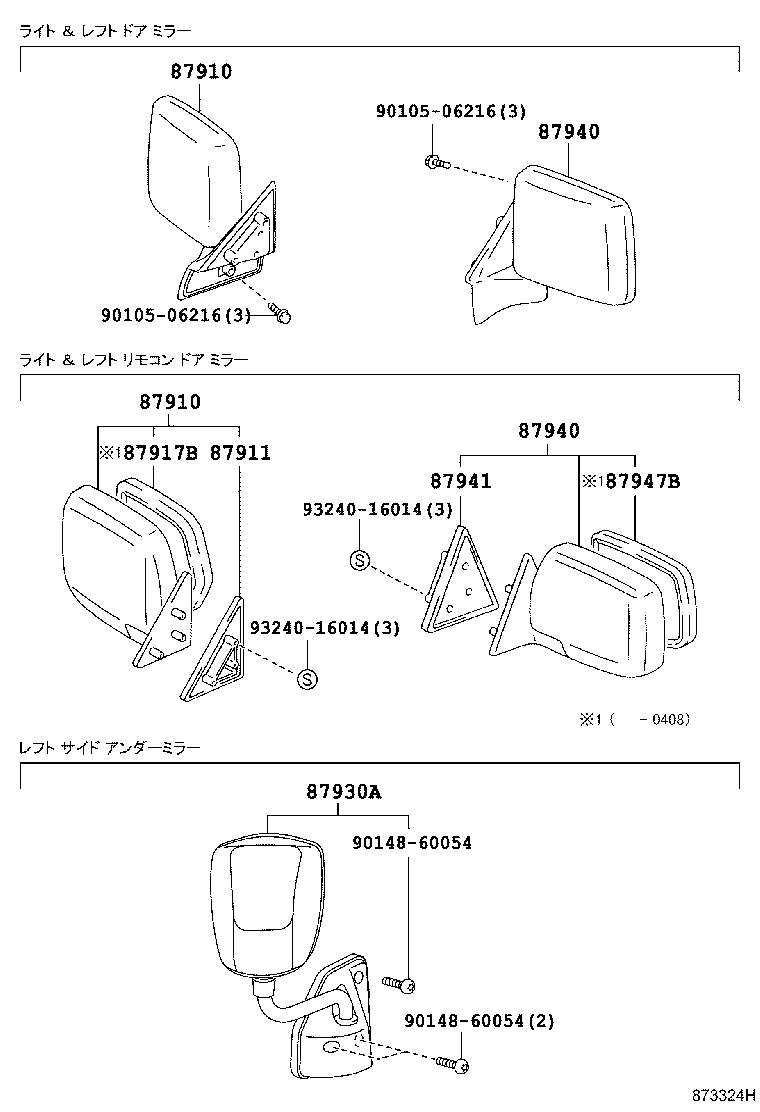

ILLUST NO. 2 OF 2(9906- )
ｱｳﾀ ﾐﾗｰ(ﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-27030 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87910-95724 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ﾌｴﾝﾀﾞ ﾛﾝｸﾞ ﾐﾗｰ |
1 | ||
| 87910-27030 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-27030 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87910-95724 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ﾌｴﾝﾀﾞ ﾛﾝｸﾞ ﾐﾗｰ |
1 | ||
| 87910-27030 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87930A - MIRROR ASSY, OUTER UNDER VIEW | ||||
| 87930-27010 |
KM7#,8#..CBU,IV3 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95731 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8# ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95731 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8# ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 87941-95701 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| Common parts | ||||
| 90105-06216 | ||||
| 90148-60054 | ||||
| 93240-16014 | ||||

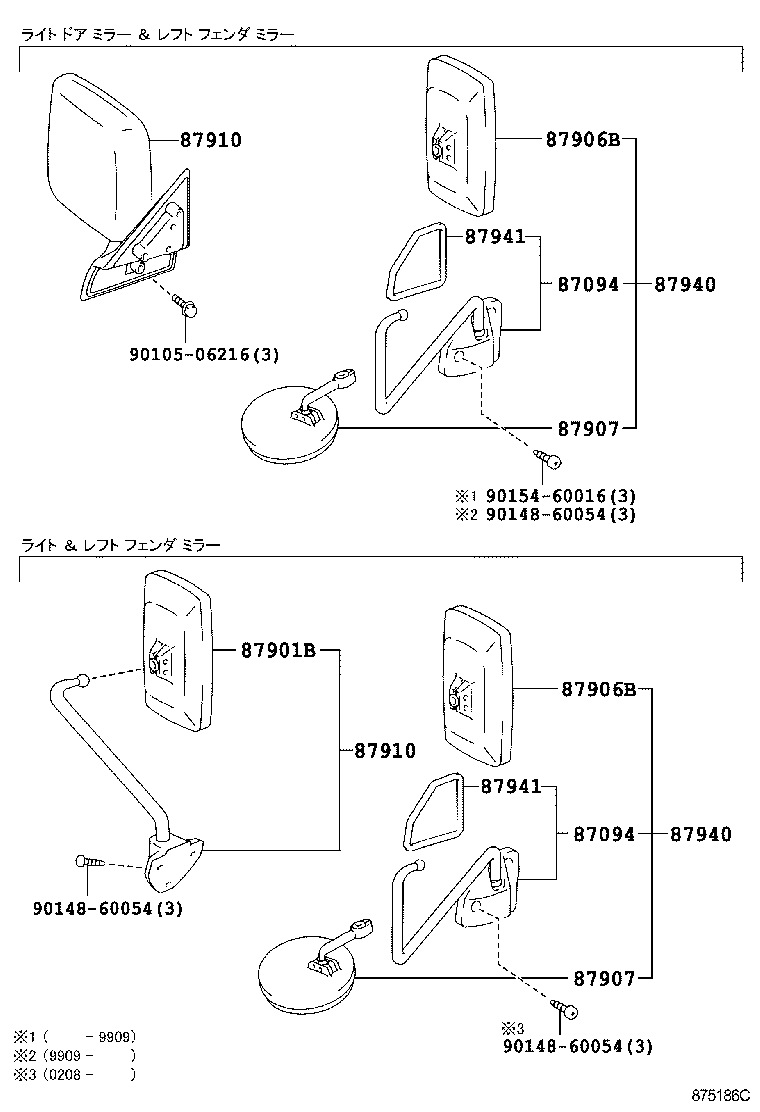

ILLUST NO. 2 OF 2(9906- )
ｱｳﾀ ﾐﾗ-(ﾄﾞｱ & ﾌｴﾝﾀﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95707 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87094-27010 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87094-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95707 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87094-27010 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87094-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95A00 |
KM85..IV3;CM75,85,KM75..4HC..IV3 |
1 | ||
| 87901-95A00 |
KM7#,8# |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
CM7#,8#,KM7#,8#..CBU,IV3 |
1 | ||
| 87901-95A00 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
CM7#,8#,KM7#,8#..CBU,IV3 |
1 | ||
| 87901-95A00 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J06 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87907-95J06 |
CM7#,8#,KM7#,8# |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J06 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87907-95J06 |
CM7#,8#,KM7#,8# |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-27030 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87910-95724 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ﾌｴﾝﾀﾞ ﾛﾝｸﾞ ﾐﾗｰ |
1 | ||
| 87910-27030 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-27030 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87910-95724 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ﾌｴﾝﾀﾞ ﾛﾝｸﾞ ﾐﾗｰ |
1 | ||
| 87910-27030 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95731 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8# ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95731 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ｵｵｶﾞﾀ ﾐﾗｰ |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8#..DX ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..DX ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27040 |
CM7#,8#,KM7#,8#..CBU,IV3 ﾄﾞｱ ﾐﾗ- |
1 | ||
| 87940-27050 |
CM7#,8#,KM7#,8# ﾌｴﾝﾀﾞ ﾐﾗｰ |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 87941-95701 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 87941-95701 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| Common parts | ||||
| 90105-06216 | ||||
| 90148-60054 | ||||
| 90154-60016 | ||||
