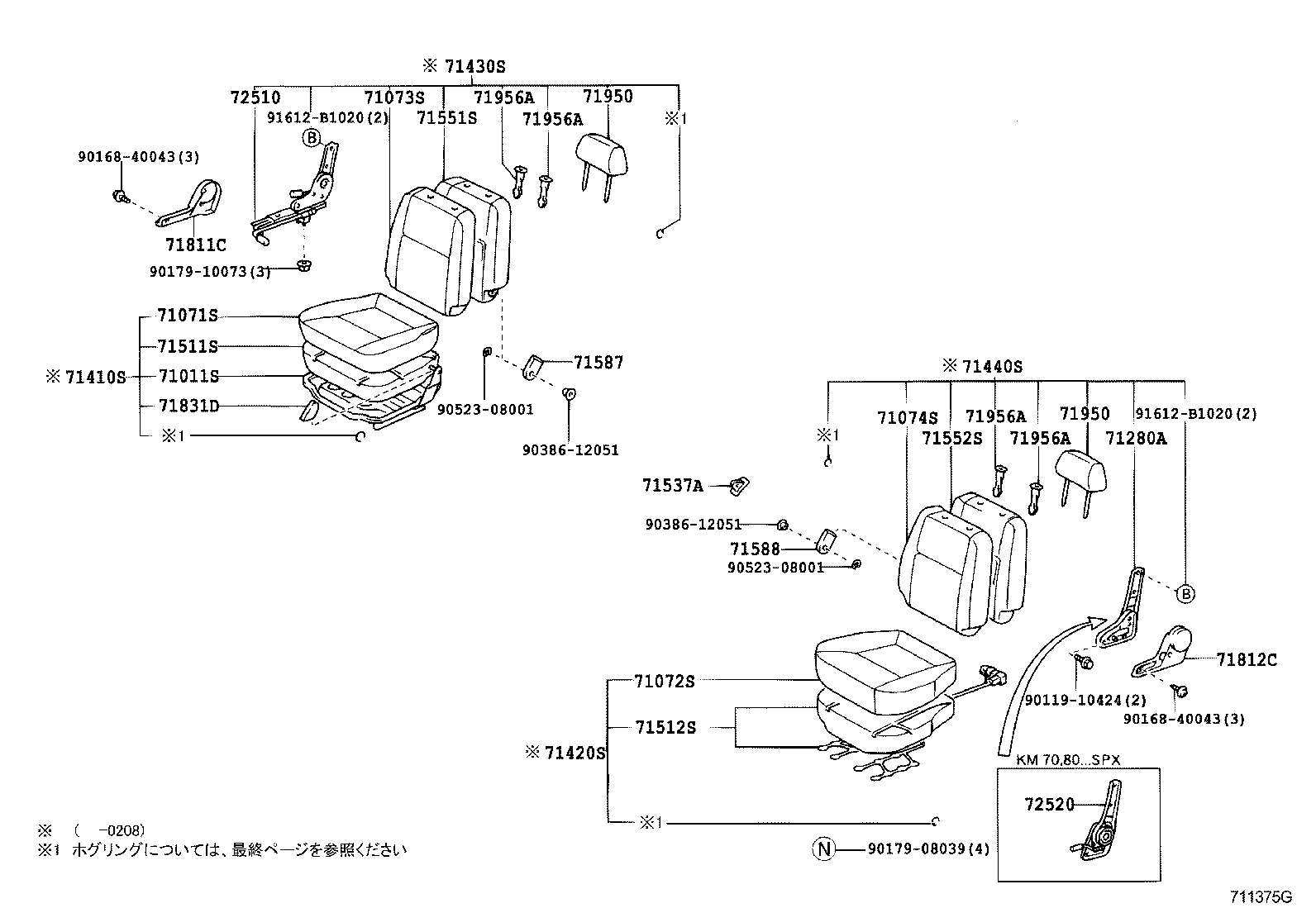

KM75-TLSDE3 (1999)
Toyota Lite/Townace
(9906- )
ｾﾊﾟﾚ-ﾄ & ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-27070B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-27072B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27170B0 |
KM85..IV6;KM70..1SO;CM75..IV3,IV6;CM70,8#,KM7#..JL ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-27190B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27092B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27150B0 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27100B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27080B0 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27071B1 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-27070B0 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-27080B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..CBU,IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71410-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-27092B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27072B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27230B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27160B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27140B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27310B0 |
CM75,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27260B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27200B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27280B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27072B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27080B0 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-27040 |
KM7#,8#..DX |
1 | ||
| 71052-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ & ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71052-27040 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71052-27010 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71502-27040 |
KM7#,8#..DX;CM75,85..4HC..IV3 |
1 | ||
| 71502-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71538-27010B0 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95705 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71505-27020 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 |
1 | ||
| 71506-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71506-95702 |
CM7#,8#,KM7#,8# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71802-95701B1 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO ｱﾘ(ﾊﾟﾂｾﾝｼﾞﾔ- ｼ-ﾄ=ﾏｴﾀﾞｵｼ ｷｺｳ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71802-95701B1 |
CM70..SJL;CM85..IV6;KM7#,8#..TB;CM75..CBU,IV6;KM70..SJL..IV3;KM75,8#..IV3,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J02B3 |
CM85..TS;CM7#,80,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J02B3 |
CM85..TS;CM7#,80,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72520-27020B0 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10424 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||

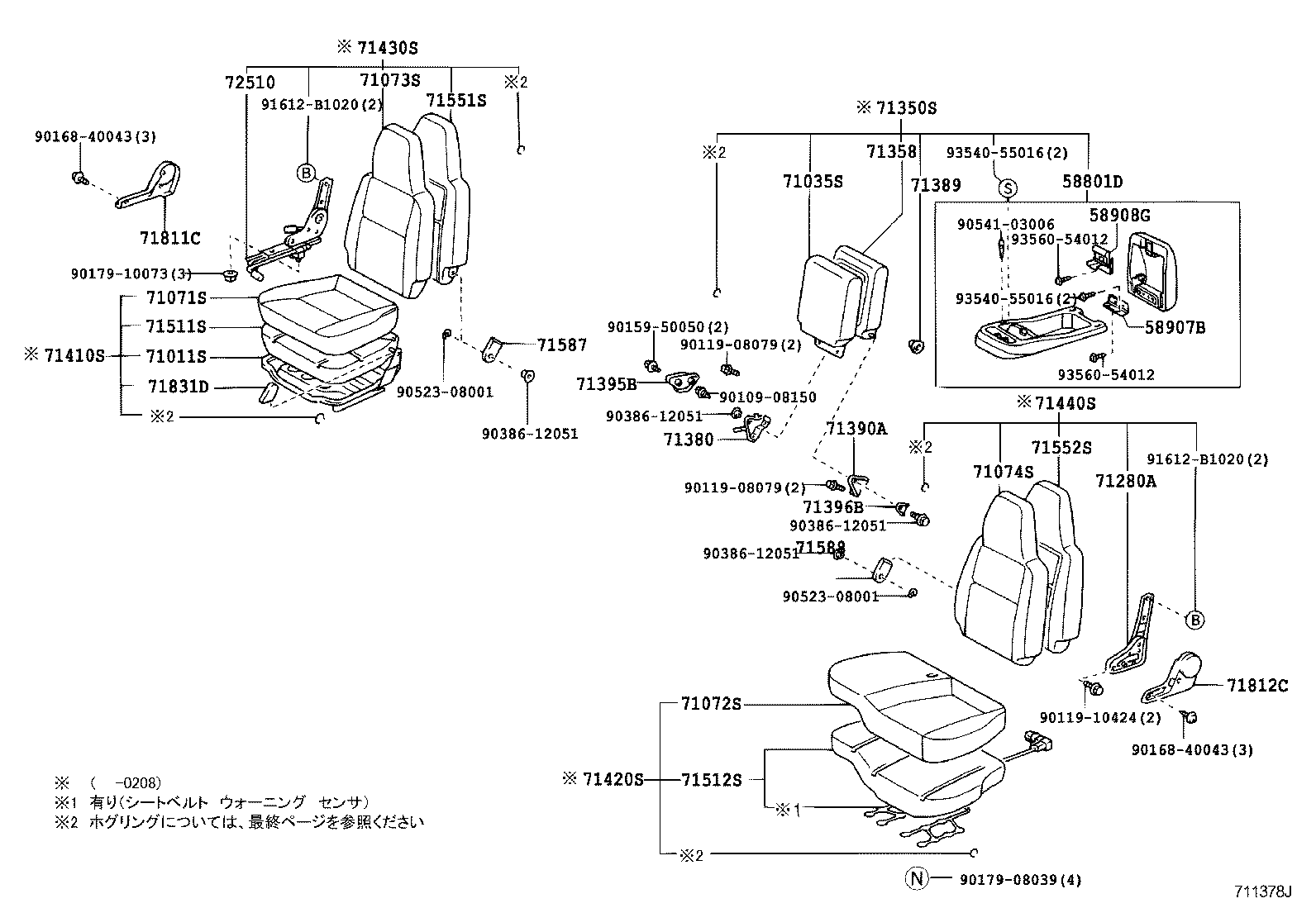

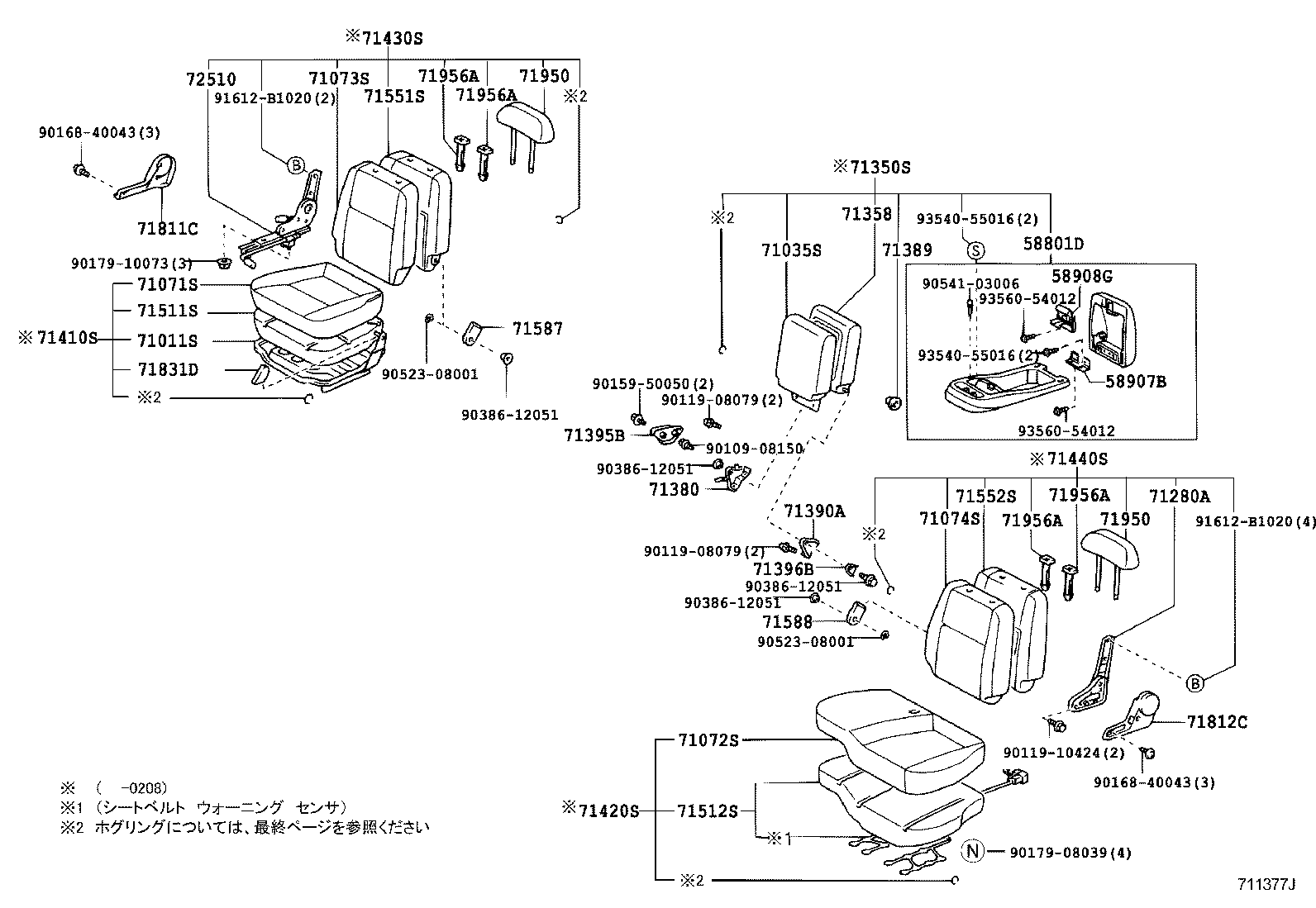

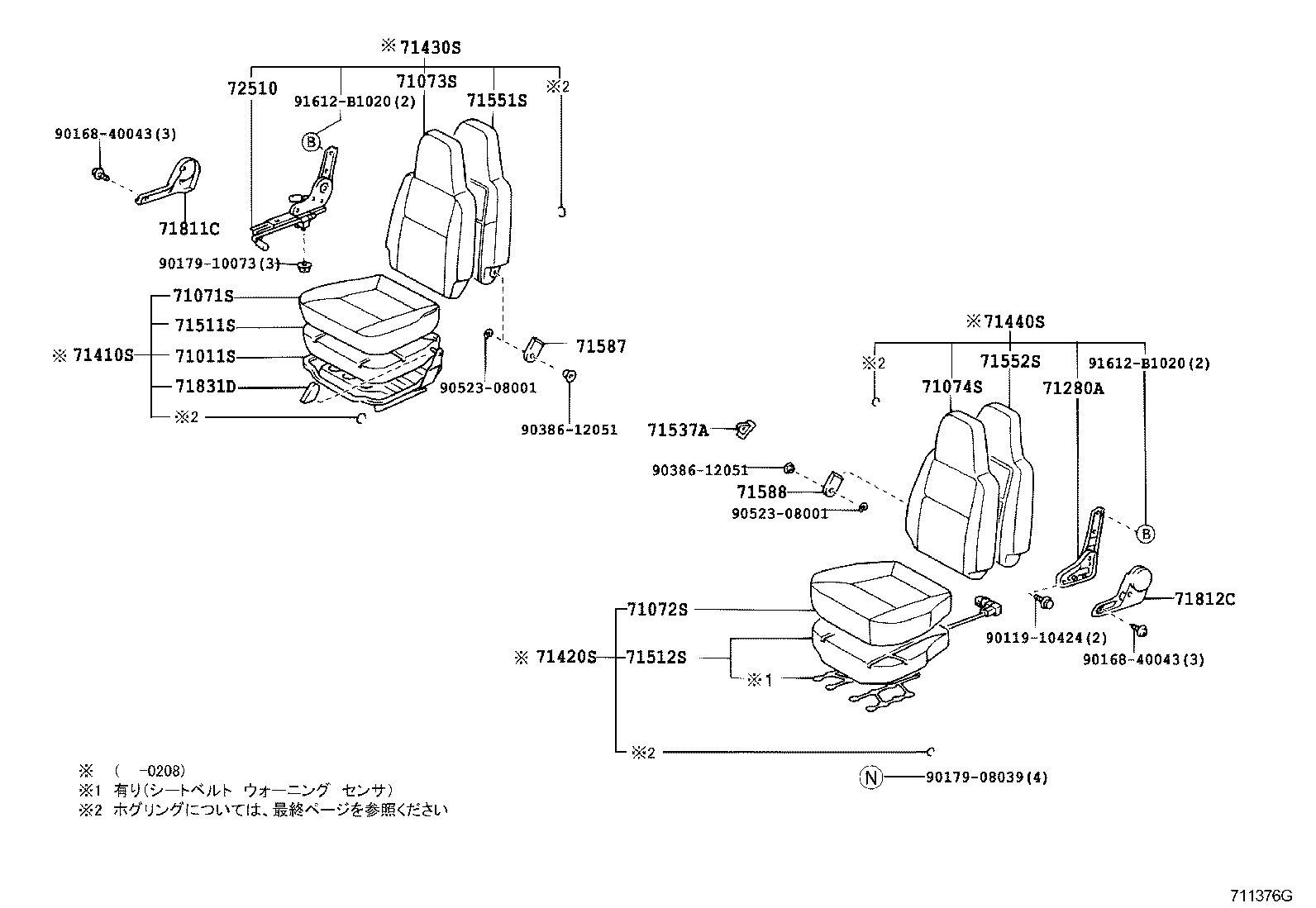

(9906- )
ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-27070B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-27072B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27170B0 |
KM85..IV6;KM70..1SO;CM75..IV3,IV6;CM70,8#,KM7#..JL ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-27190B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27092B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27150B0 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27100B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27080B0 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27071B1 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-27070B0 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-27080B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..CBU,IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71410-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-27092B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27072B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27230B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27160B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27140B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27310B0 |
CM75,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27260B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27200B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27280B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27072B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27080B0 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-27040 |
KM7#,8#..DX |
1 | ||
| 71052-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ & ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71052-27040 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71052-27010 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71502-27040 |
KM7#,8#..DX;CM75,85..4HC..IV3 |
1 | ||
| 71502-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71538-27010B0 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95705 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71505-27020 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 |
1 | ||
| 71506-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71506-95702 |
CM7#,8#,KM7#,8# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71802-95701B1 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO ｱﾘ(ﾊﾟﾂｾﾝｼﾞﾔ- ｼ-ﾄ=ﾏｴﾀﾞｵｼ ｷｺｳ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71802-95701B1 |
CM70..SJL;CM85..IV6;KM7#,8#..TB;CM75..CBU,IV6;KM70..SJL..IV3;KM75,8#..IV3,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10424 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
(9906- )
ｾﾝﾀﾊﾞﾂｸ & ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-27020B0 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 58801-27020B0 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO DK.CHARCOAL,TRIM1# |
1 | ||
| 58907B - HINGE, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 58907-60030 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO |
1 | ||
| 58908G - LOCK SUB-ASSY, CENTER SEAT CONSOLE DOOR | ||||
| 58908-26010 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO |
1 | ||
| 58908-26010 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-27073B4 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71095-27072B3 |
KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71095-27110B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71095-27090B0 |
KM7#,8#..DX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-27070B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-27072B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27170B0 |
KM85..IV6;KM70..1SO;CM75..IV3,IV6;CM70,8#,KM7#..JL ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-27190B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27092B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27150B0 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27100B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27080B0 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27071B1 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-27070B0 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-27080B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..CBU,IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-27072B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71350-27090B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-27020 |
KM7#,8#..DX |
1 | ||
| 71033-27021 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 |
1 | ||
| 71033-27020 |
KM7#,8#..DX;CM75,85..4HC..IV3 |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95700C0 |
KM7#,8#..DX BLACK,TRIM1# |
1 | ||
| 71380-95700C0 |
KM75,80..3SO;KM70..SJL..3SO;KM85..5H..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-27010 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 71389-27010 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71378-95704C0 |
KM75,80..3SO;KM70..SJL..3SO;KM85..5H..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71378-95704C0 |
KM7#,8#..DX BLACK,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95701B1 |
KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71395-95701B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-95704B1 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO DK.CHARCOAL,TRIM1# |
1 | ||
| 71396-95704B1 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71410-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-27092B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27072B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27230B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27160B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27140B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27310B0 |
CM75,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27260B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27200B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27280B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27072B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27080B0 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-27040 |
KM7#,8#..DX |
1 | ||
| 71052-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ & ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71052-27040 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71052-27010 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71502-27040 |
KM7#,8#..DX;CM75,85..4HC..IV3 |
1 | ||
| 71502-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95705 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71505-27020 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 |
1 | ||
| 71506-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71506-95702 |
CM7#,8#,KM7#,8# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71802-95701B1 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO ｱﾘ(ﾊﾟﾂｾﾝｼﾞﾔ- ｼ-ﾄ=ﾏｴﾀﾞｵｼ ｷｺｳ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71802-95701B1 |
CM70..SJL;CM85..IV6;KM7#,8#..TB;CM75..CBU,IV6;KM70..SJL..IV3;KM75,8#..IV3,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J02B3 |
CM85..TS;CM7#,80,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J02B3 |
CM85..TS;CM7#,80,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-26010B3 |
CM85..TS;CM7#,80,KM7#,8# ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-08079 | ||||
| 90119-10424 | ||||
| 90159-50050 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90523-08001 | ||||
| 90541-03006 | ||||
| 91612-B1020 | ||||
| 93540-55016 | ||||
| 93560-54012 | ||||
(9906- )
ｾﾝﾀﾊﾞｯｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-27020B0 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 58801-27020B0 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO DK.CHARCOAL,TRIM1# |
1 | ||
| 58907B - HINGE, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 58907-60030 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO |
1 | ||
| 58908G - LOCK SUB-ASSY, CENTER SEAT CONSOLE DOOR | ||||
| 58908-26010 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO |
1 | ||
| 58908-26010 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71011-95706 |
CM7#,8#,KM7#,8# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-27073B4 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71095-27072B3 |
KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71095-27110B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71095-27090B0 |
KM7#,8#..DX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-27070B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71071-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-27072B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27170B0 |
KM85..IV6;KM70..1SO;CM75..IV3,IV6;CM70,8#,KM7#..JL ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-27190B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27092B2 |
KM7#,8#..DX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-27150B0 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27100B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27080B0 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71073-27071B1 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-27070B0 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-27052B3 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27043B3 |
CM7#,8#,KM7#,8# ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-27080B1 |
KM7#,8# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-27042B2 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DARK CHARCOAL,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71320-95701B2 |
CM7#,8#,KM7#,8#..CBU,IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-27072B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71350-27090B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-27020 |
KM7#,8#..DX |
1 | ||
| 71033-27021 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 |
1 | ||
| 71033-27020 |
KM7#,8#..DX;CM75,85..4HC..IV3 |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95700C0 |
KM7#,8#..DX BLACK,TRIM1# |
1 | ||
| 71380-95700C0 |
KM75,80..3SO;KM70..SJL..3SO;KM85..5H..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-27010 |
CM7#,8#,KM7#,8#..DX |
1 | ||
| 71389-27010 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71378-95704C0 |
KM75,80..3SO;KM70..SJL..3SO;KM85..5H..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71378-95704C0 |
KM7#,8#..DX BLACK,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95701B1 |
KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71395-95701B1 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-95704B1 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO DK.CHARCOAL,TRIM1# |
1 | ||
| 71396-95704B1 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-27052B2 |
CM85..TS;CM7#,80,KM7#,8# ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71410-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-27092B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27072B2 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27230B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27160B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27140B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27310B0 |
CM75,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27260B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾟﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27200B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71420-27280B0 |
KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ & ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71430-27042B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-27052B2 |
CM85..TS;CM7#,80,KM7#,8#..DX ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27072B2 |
CM7#,8#,KM7#,8#..DX ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71440-27080B0 |
KM85..IV3;CM75,85,KM75..4HC..IV3 ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71511-95701 |
CM7#,8#,KM7#,8# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-27040 |
KM7#,8#..DX |
1 | ||
| 71052-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ & ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71052-27040 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71052-27010 |
KM7#,8#..DX ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 71502-27040 |
KM7#,8#..DX;CM75,85..4HC..IV3 |
1 | ||
| 71502-27070 |
KM70..SJL..3SO;KM75,8#..CBU,IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95705 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 71505-27010 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ= ｾﾝﾀﾊﾞﾂｸ ﾀｲﾌﾟ) |
1 | ||
| 71505-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71505-27020 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM7#,8#,KM7#,8#..DX ｼ-ﾄ = TYPE A-*104 |
1 | ||
| 71506-95703 |
CM85..TS;CM7#,80,KM7#,8# ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71506-95702 |
CM7#,8#,KM7#,8# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71588-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71801-95701B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71802-95701B1 |
KM85..IV3;KM70,80..SPX;CM75,85,KM75..4HC..IV3 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM85,KM8#..CBU,IV3;CM7#,KM7#..SJL..3SO ｱﾘ(ﾊﾟﾂｾﾝｼﾞﾔ- ｼ-ﾄ=ﾏｴﾀﾞｵｼ ｷｺｳ),DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-95700B1 |
CM7#,8#,KM7#,8#..DX DK.CHARCOAL,TRIM1# |
1 | ||
| 71802-95701B1 |
CM70..SJL;CM85..IV6;KM7#,8#..TB;CM75..CBU,IV6;KM70..SJL..IV3;KM75,8#..IV3,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 71831-95700B1 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| 72510-27020B0 |
CM7#,8#,KM7#,8# DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-08079 | ||||
| 90119-10424 | ||||
| 90159-50050 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90523-08001 | ||||
| 90541-03006 | ||||
| 91612-B1020 | ||||
| 93540-55016 | ||||
| 93560-54012 | ||||
(9906- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
