KM75-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

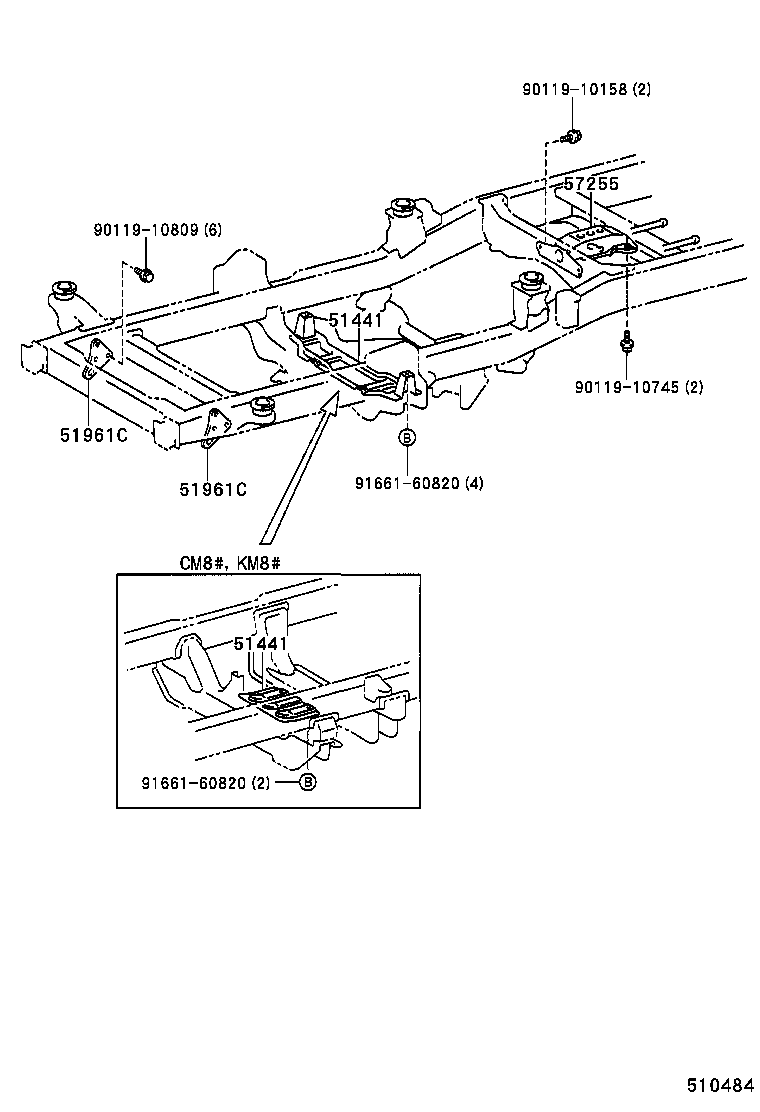

(9906-0208)

Click highlighted areas on diagram

diagram 51441 51441 51961C 51961C 57255 9011910158 9011910745 9011910809 9166160820 9166160820
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-27070

CM7#,KM7#

 1
51441-27071

KM7#..CBU,IV3

 1
51441-27080

KM75,8#..JL

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-27070

CM7#,KM7#

 1
51441-27071

KM7#..CBU,IV3

 1
51441-27080

KM75,8#..JL

 1
51961C - HOOK, FRONT
51961-27020

CM7#,8#,KM7#,8#

 2
51961-27020

KM7#,8#

 2
51961C - HOOK, FRONT
51961-27020

CM7#,8#,KM7#,8#

 2
51961-27020

KM7#,8#

 2
57255 - MEMBER, ENGINE REAR MOUNTING
57255-27090

CM7#,KM7#..4HC

 1
57255-27090

KM7#..4HC

 1
Common parts
90119-10158
90119-10745
90119-10809
91661-60820

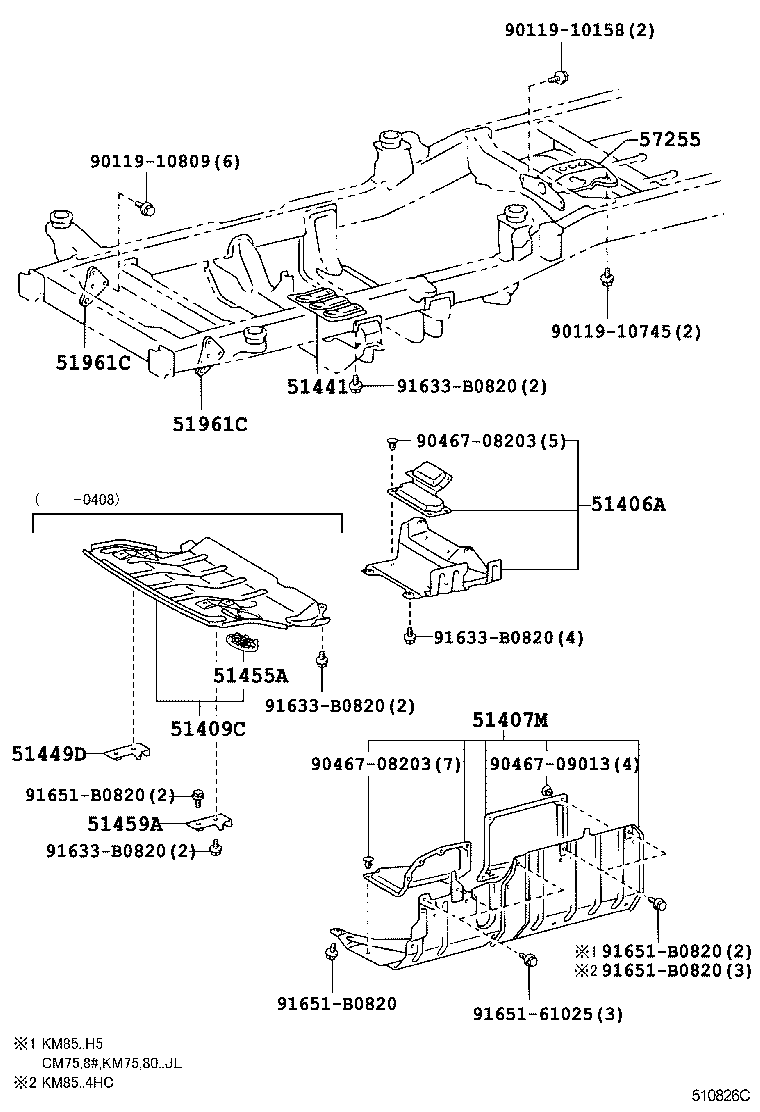

(0208- )CM75,8#,KM75,8#..JL

Click highlighted areas on diagram

diagram 51406A 51407M 51409C 51441 51449D 51455A 51459A 51961C 51961C 57255 9011910158 9011910745 9011910809 9046708203 9046708203 9046709013 91633B0820 91633B0820 91633B0820 91633B0820 9165161025 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-27020

KM7#..CBU,IV3

 1
51406-27030

KM75,8#..JL

 1
51407M - COVER SUB-ASSY, ENGINE SIDE UNDER, LH
51407-27031

KM85..5H;KM75,80..JL

 1
51407-27030

KM75,8#..JL

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-27070

CM7#,KM7#

 1
51441-27071

KM7#..CBU,IV3

 1
51441-27080

KM75,8#..JL

 1
51961C - HOOK, FRONT
51961-27020

CM7#,8#,KM7#,8#

 2
51961-27020

KM7#,8#

 2
51961C - HOOK, FRONT
51961-27020

CM7#,8#,KM7#,8#

 2
51961-27020

KM7#,8#

 2
57255 - MEMBER, ENGINE REAR MOUNTING
57255-27090

CM7#,KM7#..4HC

 1
57255-27090

KM7#..4HC

 1
Common parts
90119-10158
90119-10745
90119-10809
90467-08203
90467-09013
91633-B0820
91651-61025
91651-B0820

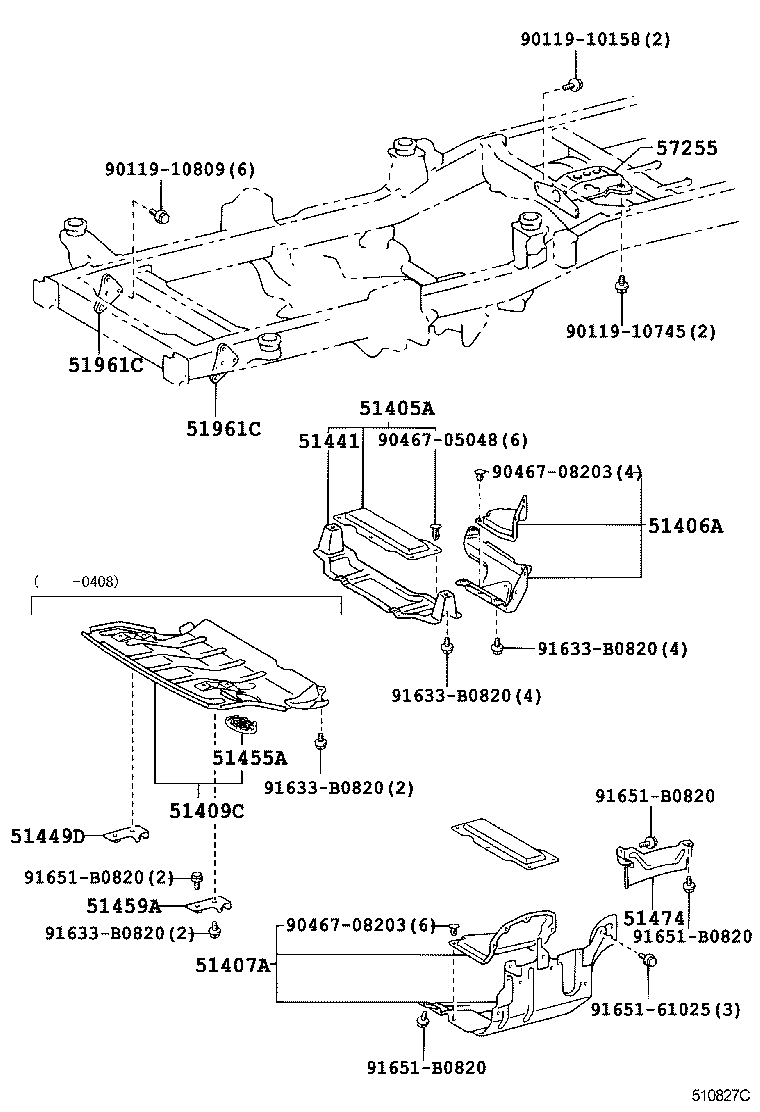

(0208- )CM7#,KM7#..CBU,IV3

Click highlighted areas on diagram

diagram 51405A 51406A 51407A 51409C 51441 51449D 51455A 51459A 51474 51961C 51961C 57255 9011910158 9011910745 9011910809 9046705048 9046708203 9046708203 91633B0820 91633B0820 91633B0820 91633B0820 9165161025 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-27070

KM7#..CBU,IV3

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-27020

KM7#..CBU,IV3

 1
51406-27030

KM75,8#..JL

 1
51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3
51407-27020

KM7#..CBU,IV3

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-27070

CM7#,KM7#

 1
51441-27071

KM7#..CBU,IV3

 1
51441-27080

KM75,8#..JL

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-27010

KM7#..CBU,IV3

 1
51961C - HOOK, FRONT
51961-27020

CM7#,8#,KM7#,8#

 2
51961-27020

KM7#,8#

 2
51961C - HOOK, FRONT
51961-27020

CM7#,8#,KM7#,8#

 2
51961-27020

KM7#,8#

 2
57255 - MEMBER, ENGINE REAR MOUNTING
57255-27090

CM7#,KM7#..4HC

 1
57255-27090

KM7#..4HC

 1
Common parts
90119-10158
90119-10745
90119-10809
90467-05048
90467-08203
91633-B0820
91651-61025
91651-B0820
