KM75-TLSDE3 (1999)
Toyota Lite/Townace
Production
Jun 1999
-
Aug 2007
Engine
7KE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9906- )CM7#,KM7#..4HC

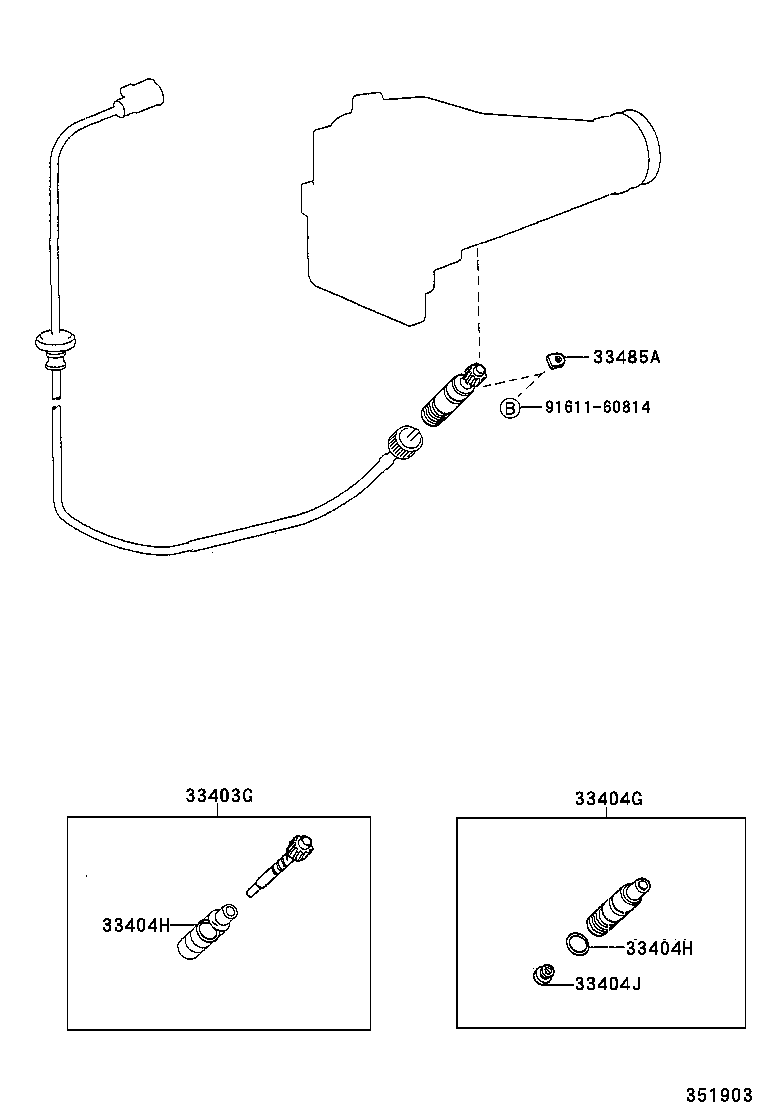

Click highlighted areas on diagram
A42D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-39195 |
CM75,KM75..SJL..4HC 歯数=16,ﾏｰｸ 16:4 |
1 | ||
| 33403-39195 |
CM75,KM75..4HC 歯数=16,ﾏｰｸ 16:4 |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-30040 |
CM7#,KM7#..4HC |
1 | ||
| 33404-30040 |
KM7#..4HC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
KM7#..4HC |
1 | ||
| 90301-18004 |
CM7#,KM7#..4HC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
KM7#..4HC |
1 | ||
| 90301-18004 |
CM7#,KM7#..4HC |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
KM7#..4HC |
1 | ||
| 90310-09001 |
CM7#,85,KM7#..4HC |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
CM7#,85,KM7#..4HC |
1 | ||
| 33485-30020 |
KM7#..4HC |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
