KM75-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )KM7#..4HC

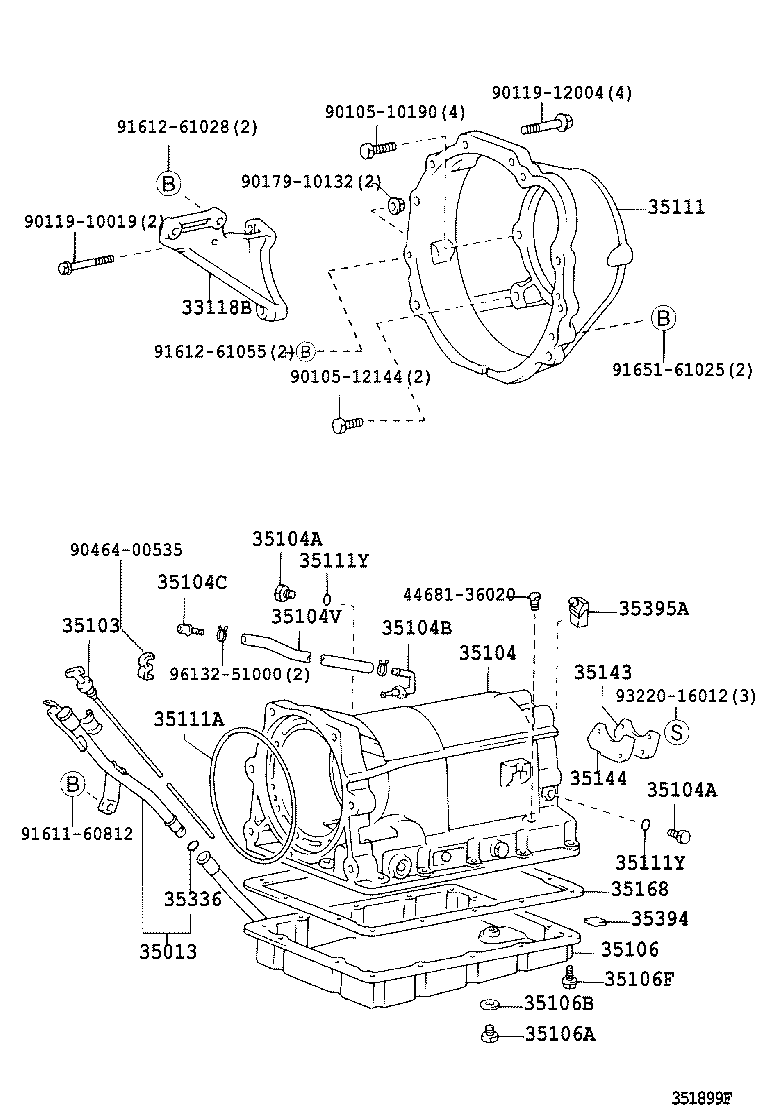

Click highlighted areas on diagram

A42D

diagram 33118B 35013 35103 35104 35104A 35104A 35104B 35104C 35104V 35106 35106A 35106B 35106F 35111 35111A 35111Y 35111Y 35143 35144 35168 35336 35394 35395A 4468136020 9010510190 9010512144 9011910019 9011912004 9017910132 9046400535 9161160812 9161261028 9161261055 9165161025 9322016012 9613251000
Part # Description Qty Price
33118B - PLATE, STIFFENER, RH(ATM)
33118-12080

KM7#,85..4HC

 1
33118-12080

KM7#..4HC

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-27090

KM7#,85..4HC

 1
35013-27090

KM7#..4HC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-27070

KM7#..4HC

 1
35103-27070

KM7#,85..4HC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26021

KM7#..4HC

 1
35104-26021

CM7#,KM7#..4HC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

CM7#,85,KM7#..4HC

 2
90341-08001

CM7#,85,KM7#,85..4HC

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

CM7#,85,KM7#..4HC

 2
90341-08001

CM7#,85,KM7#,85..4HC

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098

CM7#,85,KM7#..4HC

 1
90930-03098

KM7#,85..4HC

 1
35104C - PLUG, BREATHER, NO.2 (ATM)
90930-03099

KM7#,85..4HC

 1
90930-03099

CM7#,85,KM7#..4HC

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-11096

KM7#,85..4HC

 1
90445-11096

CM7#,85,KM7#..4HC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30051

CM7#,85,KM7#,85..4HC

 1
35106-28030

CM7#,85,KM7#..4HC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

CM7#,85,KM7#..4HC

 1
90341-10011

CM7#,85,KM7#,85..4HC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

CM7#,85,KM7#..4HC

 1
35178-30010

KM7#,85..4HC

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06117

KM7#,85..4HC

 14
90119-06117

CM7#,85,KM7#..4HC

 14
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-28031

KM7#,85..4HC

 1
35111-28031

KM7#..4HC

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99054

KM7#,85..4HC

 1
90301-99054

CM7#,85,KM7#..4HC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

CM7#,85,KM7#..4HC

 2
90301-06196

KM7#,85..4HC

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

CM7#,85,KM7#..4HC

 2
90301-06196

KM7#,85..4HC

 2
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

CM7#,85,KM7#..4HC

 1
35143-22010

KM7#,85..4HC

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-28010

KM7#,85..4HC

 1
35144-28010

CM7#,85,KM7#..4HC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

CM7#,85,KM7#..4HC

 1
35168-22011

KM7#,85..4HC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

CM7#,85,KM7#..4HC

 1
90301-09173

KM7#,85..4HC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

CM7#,85,KM7#..4HC

 1
35394-30011

KM7#,85..4HC

 1
35395A - STRAINER, GOVERNOR OIL
35395-40010

CM7#,85,KM7#..4HC

 1
35395-40010

KM7#,85..4HC

 1
Common parts
44681-36020
90105-10190
90105-12144
90119-10019
90119-12004
90179-10132
90464-00535
91611-60812
91612-61028
91612-61055
91651-61025
93220-16012
96132-51000
