KM75-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )4HC

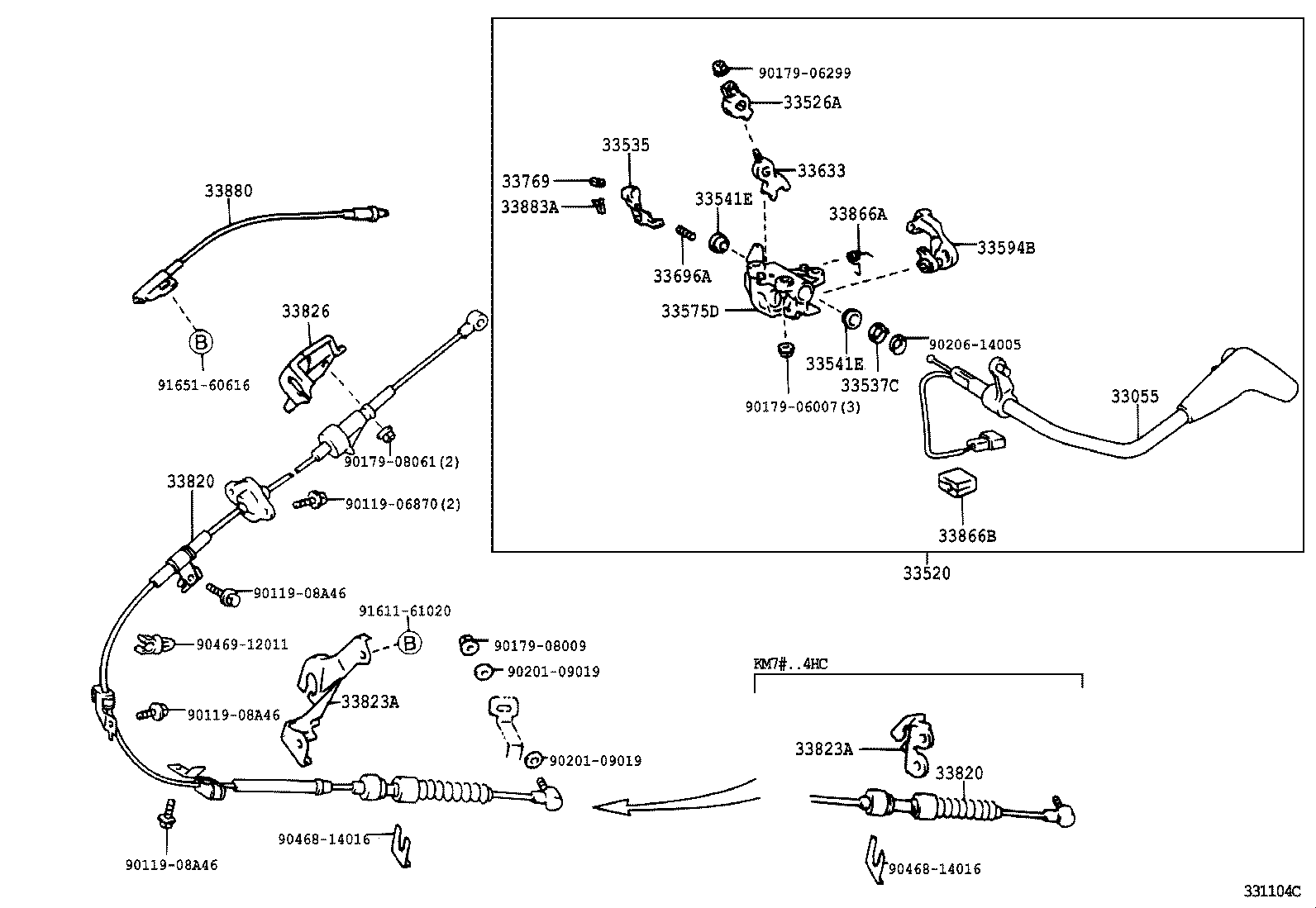

Click highlighted areas on diagram

diagram 33055 33520 33526A 33535 33537C 33541E 33541E 33575D 33594B 33633 33696A 33769 33820 33820 33823A 33823A 33826 33866A 33866B 33880 33883A 9011906870 9011908A46 9011908A46 9011908A46 9017906007 9017906299 9017908009 9017908061 9020109019 9020109019 9020614005 9046814016 9046814016 9046912011 9161161020 9165160616
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-27020

CM7#,85,KM7#..4HC

 1
33055-27020

CM7#,85,KM7#..4HC

 1
33055-27021

KM7#,85..4HC

 1
33520 - SHAFT ASSY, CONTROL
33520-27221

KM7#,85..4HC

 1
33520-27220

CM7#,85,KM7#..4HC

 1
33520-27220

CM7#,85,KM7#..4HC

 1
33526A - PLATE, SHIFT LEVER SUPPORT, NO.1
33526-28080

CM7#,85,KM7#..4HC

 1
33526-28080

CM7#,85,KM7#..4HC

 1
33526-28081

KM7#,85..4HC

 1
33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535-28070

KM7#,85..4HC

 1
33535-28070

CM7#,85,KM7#..4HC

 1
33537C - PLATE, COLUMN SHIFT CONTROL LEVER
33537-28030

KM7#,85..4HC

 1
33537-28030

CM7#,85,KM7#..4HC

 1
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-14014

KM7#,85..4HC

 2
90386-14014

CM7#,85,KM7#..4HC

 2
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-14014

KM7#,85..4HC

 2
90386-14014

CM7#,85,KM7#..4HC

 2
33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33575-28090

CM7#,85,KM7#..4HC

 1
33575-28090

CM7#,85,KM7#..4HC

 1
33575-28091

KM7#,85..4HC

 1
33594B - PLATE, SHIFT LOCK (FOR COLUMN SHIFT)
33594-28030

KM7#,85..4HC

 1
33594-28030

CM7#,85,KM7#..4HC

 1
33633 - PLATE, COLUMN SHIFT LEVER DETENT
33633-28120

KM7#,85..4HC

 1
33633-28120

CM7#,85,KM7#..4HC

 1
33696A - SPRING, COMPRESSION
90501-09136

CM7#,85,KM7#..4HC

 1
90501-09136

KM7#,85..4HC

 1
33769 - SCREW, CONTROL ROD SET
33769-28010

CM7#,85,KM7#..4HC

 1
33769-28010

KM7#,85..4HC

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-27180

KM7#,85..4HC

 1
33820-27180

KM7#..4HC

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-27180

KM7#,85..4HC

 1
33820-27180

KM7#..4HC

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-28190

KM7#..4HC

 1
33823-28190

KM7#,85..4HC

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-28190

KM7#..4HC

 1
33823-28190

KM7#,85..4HC

 1
33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-28030

CM7#,85,KM7#..4HC

 1
33826-28030

CM7#,85,KM7#,85..4HC

 1
33866A - SPRING, SHIFT LOCK RELEASE
33866-28020

CM7#,85,KM7#..4HC

 1
33866-28020

KM7#,85..4HC

 1
33866B - FIXED CLAMP
82711-1A660

KM7#,85..4HC

 1
82711-1A660

CM7#,85,KM7#..4HC

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-27030

CM7#,85,KM7#..4HC

 1
33880-27030

KM7#,85..4HC

 1
33883A - HOLDER, CABLE END ROD
33883-28020

CM7#,85,KM7#..4HC

 1
33883-28020

KM7#,85..4HC

 1
Common parts
90119-06870
90119-08A46
90179-06007
90179-06299
90179-08009
90179-08061
90201-09019
90206-14005
90468-14016
90469-12011
91611-61020
91651-60616
