KM75-TLQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

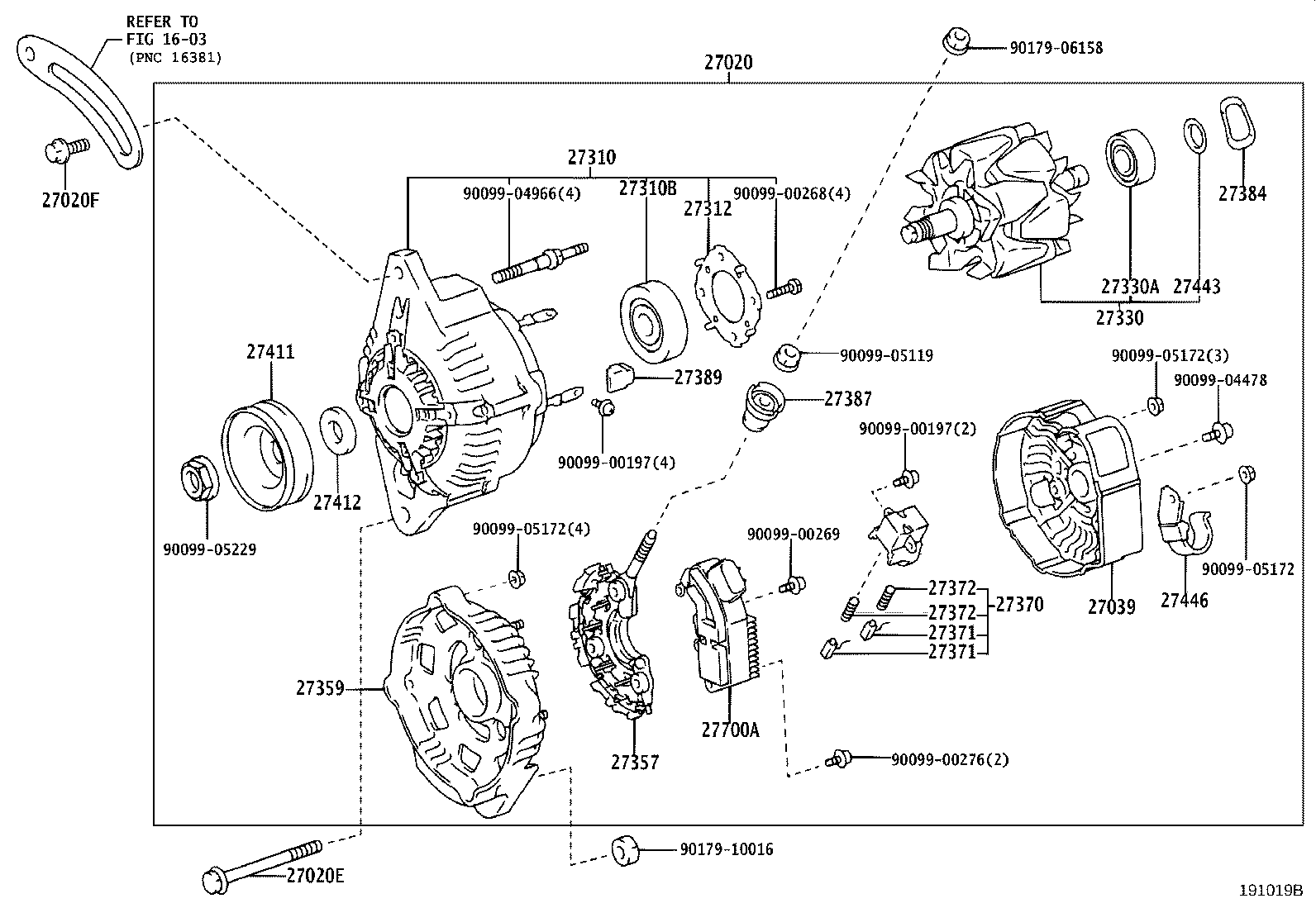

(9906-0208)7KE

Click highlighted areas on diagram

12V 55A

diagram 1603 27020 27020E 27020F 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27384 27387 27389 27411 27412 27443 27446 27700A 9009900197 9009900197 9009900268 9009900269 9009900276 9009904478 9009904966 9009905119 9009905172 9009905172 9009905172 9009905229 9017906158 9017910016
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-13100

7KE..KM7#,8#..5H

12V 55A

 1
27060-13100

7KE..KM7#,8#..5H..(CBU,IV3)

12V 55A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10221

7KE..KM7#,8#

 1
90105-10221

7KE..KM7#,8#

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90119-08654

7KE..KM7#,8#

 1
90119-08654

7KE..KM7#,8#

 1
27039 - COVER, ALTERNATOR REAR END
27039-67271

7KE..KM7#,8#..5H

12V 55A

 1
27039-13400

7KE..KM7#,8#..5H

24V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-13380

7KE..KM7#,8#..5H

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10214

7KE..KM7#,8#..5H

12V 55A

 1
90099-10199

7KE..KM7#,8#..5H

12V 55A

 1
27312 - PLATE, RETAINER
27312-72100

7KE..KM7#,8#..5H

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-13380

7KE..KM7#,8#..5H

12V 55A

 1
27330-11250

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27330-11250

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3CE,7KE..CM7#,8#,KM7#,8#

12V 55A,70A,80A

 1
90099-10213

7KE..KM7#,8#..5H

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13360

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27357-13360

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13350

7KE..KM7#,8#..5H

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

7KE..KM7#,8#..5H

12V 55A

 1
27370-35060

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-70300

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

 2
27371 - BRUSH, ALTERNATOR
27371-70300

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

 2
27384 - WASHER
27384-16380

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27387 - INSULATOR, TERMINAL
27387-70171

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27389 - INSULATOR, TERMINAL
27389-63020

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 4
27411 - PULLEY, ALTERNATOR
27411-13360

7KE..KM7#,8#..5H

12V 55A

 1
27411-13360

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-35100

7KE..KM7#,8#..5H

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3CE,7KE..CM7#,8#,KM7#,8#

 1
27446 - CLIP, ALTERNATOR CORD
27446-58040

7KE..KM7#,8#..5H

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13130

7KE..KM7#,8#

 1
27700-13130

7KE..KM7#,8#

 1
Common parts
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05172
90099-05229
90179-06158
90179-10016
Linked diagrams
1603

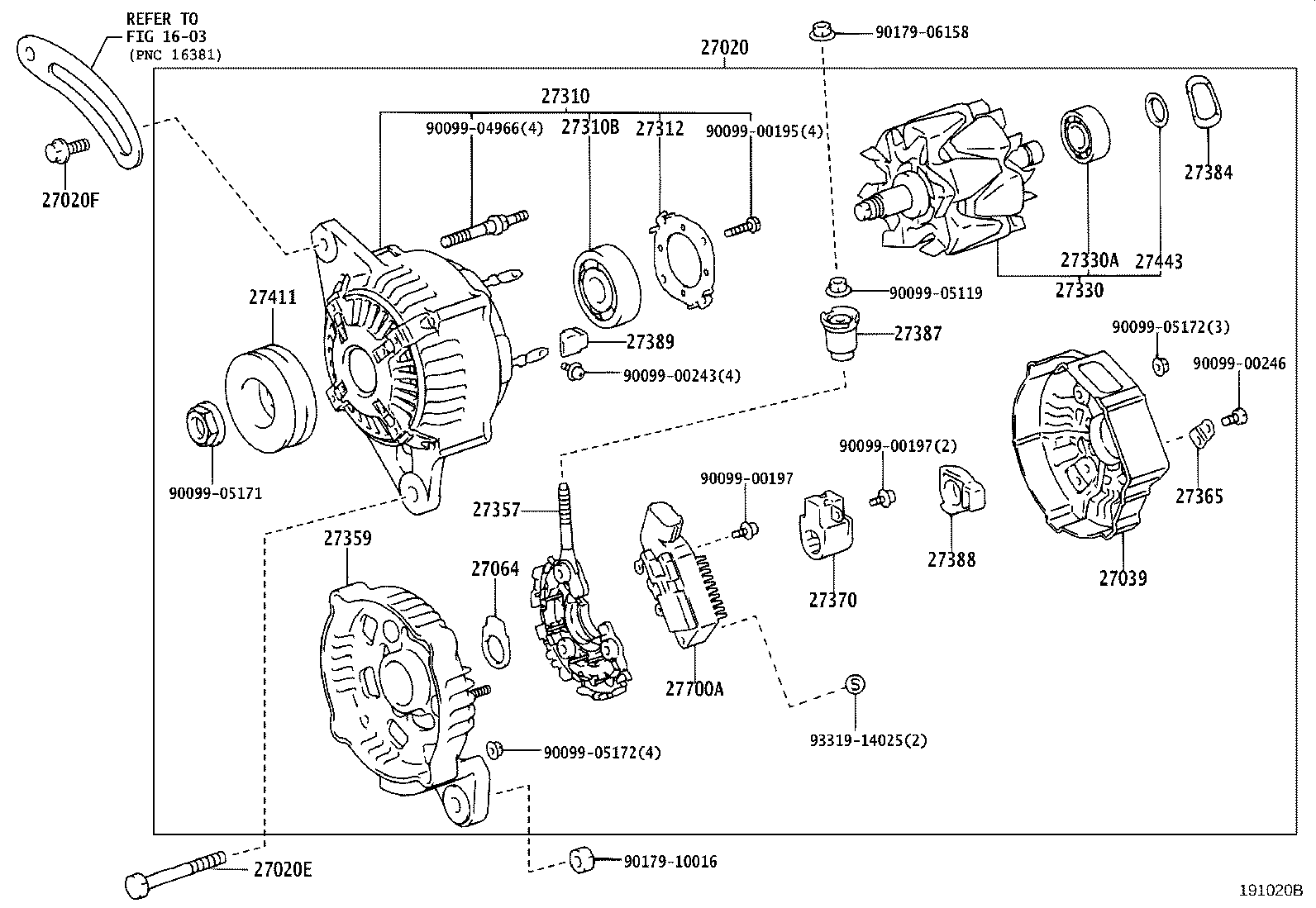

(9906-0208)7KE

Click highlighted areas on diagram

12V 70A,80A

diagram 1603 27020 27020E 27020F 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-13100

7KE..KM7#,8#..5H

12V 55A

 1
27060-13100

7KE..KM7#,8#..5H..(CBU,IV3)

12V 55A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10221

7KE..KM7#,8#

 1
90105-10221

7KE..KM7#,8#

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90119-08654

7KE..KM7#,8#

 1
90119-08654

7KE..KM7#,8#

 1
27039 - COVER, ALTERNATOR REAR END
27039-67271

7KE..KM7#,8#..5H

12V 55A

 1
27039-13400

7KE..KM7#,8#..5H

24V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-13380

7KE..KM7#,8#..5H

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10214

7KE..KM7#,8#..5H

12V 55A

 1
90099-10199

7KE..KM7#,8#..5H

12V 55A

 1
27312 - PLATE, RETAINER
27312-72100

7KE..KM7#,8#..5H

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-13380

7KE..KM7#,8#..5H

12V 55A

 1
27330-11250

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27330-11250

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3CE,7KE..CM7#,8#,KM7#,8#

12V 55A,70A,80A

 1
90099-10213

7KE..KM7#,8#..5H

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13360

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27357-13360

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13350

7KE..KM7#,8#..5H

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

7KE..KM7#,8#..5H

12V 55A

 1
27370-35060

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27384 - WASHER
27384-16380

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27387 - INSULATOR, TERMINAL
27387-70171

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27389 - INSULATOR, TERMINAL
27389-63020

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 4
27411 - PULLEY, ALTERNATOR
27411-13360

7KE..KM7#,8#..5H

12V 55A

 1
27411-13360

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3CE,7KE..CM7#,8#,KM7#,8#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13130

7KE..KM7#,8#

 1
27700-13130

7KE..KM7#,8#

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
90179-10016
93319-14025
Linked diagrams
1603

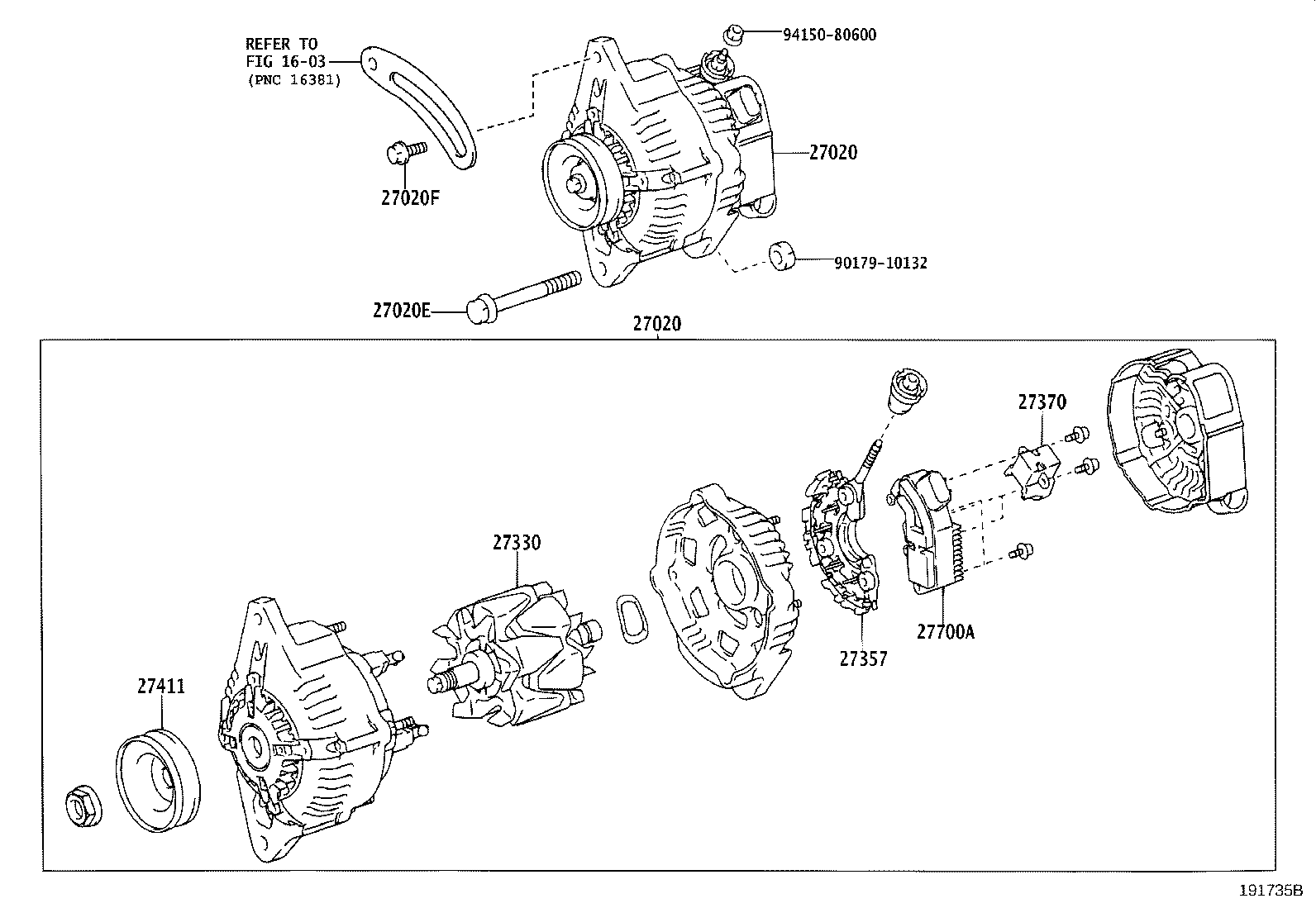

(0208- )7KE..5H..CBU,IV3

Click highlighted areas on diagram

12V 55A

diagram 1603 27020 27020 27020E 27020F 27330 27357 27370 27411 27700A 9017910132 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-13100

7KE..KM7#,8#..5H

12V 55A

 1
27060-13100

7KE..KM7#,8#..5H..(CBU,IV3)

12V 55A

 1
27020 - ALTERNATOR ASSY
27060-13100

7KE..KM7#,8#..5H

12V 55A

 1
27060-13100

7KE..KM7#,8#..5H..(CBU,IV3)

12V 55A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10221

7KE..KM7#,8#

 1
90105-10221

7KE..KM7#,8#

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90119-08654

7KE..KM7#,8#

 1
90119-08654

7KE..KM7#,8#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-13380

7KE..KM7#,8#..5H

12V 55A

 1
27330-11250

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27330-11250

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13360

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27357-13360

7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8#

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

7KE..KM7#,8#..5H

12V 55A

 1
27370-35060

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-13360

7KE..KM7#,8#..5H

12V 55A

 1
27411-13360

7KE..KM7#..5H;7KE..KM8#..TS..5H..(CBU,IV3)

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13130

7KE..KM7#,8#

 1
27700-13130

7KE..KM7#,8#

 1
Common parts
90179-10132
94150-80600
Linked diagrams
1603
