KM75-TLQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )7KE

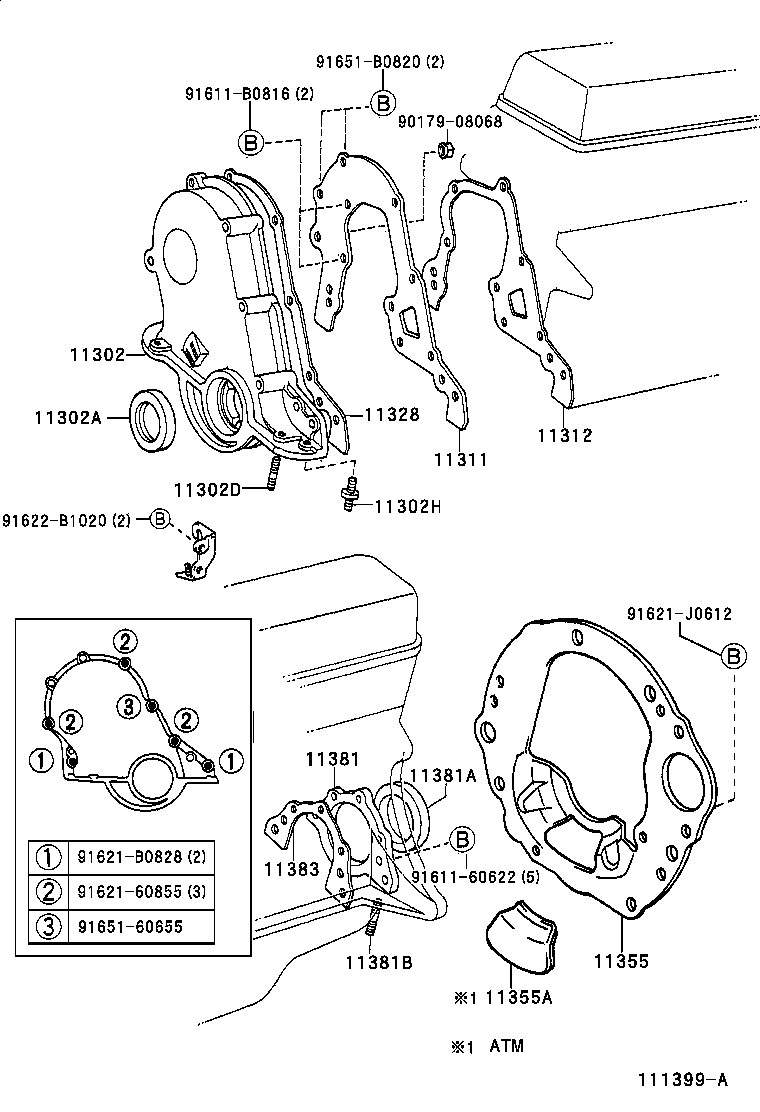

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9017908068 9161160622 91611B0816 9162160855 91621B0828 91621J0612 91622B1020 9165160655 91651B0820
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13042

7KE..KM7#,8#

 1
11321-13042

7KE..KM7#,8#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38086

7KE..KM7#,8#

 1
90311-38053

7KE..KM7#,8#

 1
90311-38086

7KE..KM7#,8#

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90109-06291

7KE..KM7#,8#

 2
90109-06291

7KE..KM7#,8#

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90109-06291

7KE..KM7#,8#

 2
90109-06291

7KE..KM7#,8#

 2
11311 - PLATE, FRONT END
11311-13010

7KE..KM7#,8#

 1
11311-13010

7KE..KM7#,8#

 1
11312 - GASKET, FRONT END PLATE
11312-06010

7KE..KM7#,8#

 1
11312-06010

7KE..KM7#,8#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-06010

7KE..KM7#,8#

 1
11328-06010

7KE..KM7#,8#

 1
11355 - PLATE, REAR END
11355-06010

7KE..KM7#,8#..5H

 1
11355-06010

7KE..KM7#,8#..5H

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13011

7KE..KM7#,8#

 1
11381-13011

7KE..KM7#,8#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70012

7KE..KM7#,8#

 1
90311-70007

7KE..KM7#,8#

 1
90311-70012

7KE..KM7#,8#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90109-06291

7KE..KM7#,8#

 2
90109-06291

7KE..KM7#,8#

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

7KE..KM7#,8#

 1
11383-13010

7KE..KM7#,8#

 1
Common parts
90179-08068
91611-60622
91611-B0816
91621-60855
91621-B0828
91621-J0612
91622-B1020
91651-60655
91651-B0820
